Digital high-power amplifier

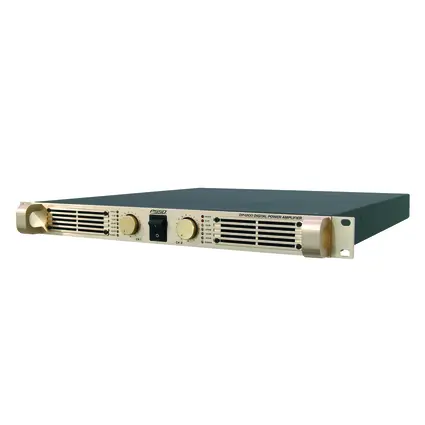

PSSO DP-1200 Full digital amplifier


Digital high-power amplifier

PSSO DP-1200 Full digital amplifier

Item no. 10451715

PSSO is a registered trademark and stands for Professional Sound Solutions by Omnitronic. The products are carefully selected by our experienced product-developers and are only manufactured by qualified producers under constant quality inspection. The product-range covers professional sound-products needed by rental companies, event services and large discotheque managers.
PSSO-products can challenge well-known brandnames in terms of technology and quality, but will remain unbeatable in terms of value for money!
So, do not be hesitant to try and test your first PSSO-product - your ears will love the sound.

Digital high-power amplifier

  • Extremely efficient due to SMPS-technology
  • Advantages in low weight and little space due to switch mode power supply instead of large and heavy transformers
  • Switch-mode power supply
  • High efficiency, operation via safety power outlet
  • Extremely wide frequency range covers the whole bandwidth
  • Power supply with softstart
  • High impulse stability
  • Stable metal housing, light and compact
  • Plain design with aluminum front panel
  • Rack installation with only 1 unit!
  • Complete protection set against overheat, overload, short-circuit, DC, softstart
  • Thermal stability via two radial fans
  • Highly efficient front-to-rear air routing
  • Detachable front grille for easy filter exchange
  • Electronically balanced inputs via XLR/Jack mounting sockets
  • Outputs via lockable Speaker-plugs
  • Operation mode visible via LED display for Signal, Limit and Protect
  • 4-fold LED meter per channel
  • Input controls only adjustable with tools, power switch
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • Combines superior sound quality with highest reliabilty at significant lower weight
  • Excellent power/weight-relation
  • Reliable power amp for a wide range of applications
  • Suitable for compact PAs, multi PAs, rental companies
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:1950,00 W
Frequency range:5 - 30000 Hz
Width:48,3 cm
Height:8,9 cm
Depth:45,5 cm
Weight:10 kg
Power output (RMS):
Stereo 4 ohms2 x 600 W
Stereo 8 ohms2 x 350 W
Signal-to-Noise ratio:>105 dB
Total harmonic distortion:0.1 %
Damping factor:>500
Voltage gain:32 dB
Slew rate:40 V/µsec.
Crosstalk:>70 dB
Input sensitivity:1.1 V
Input impedance:10 kohms
Input connectors:2 x XLR/jack mounting socket
Output connectors:2 x Speaker (stereo)
Protection:Overheat, overload, short-circuit, DC, softstart
Cooling:2 radial fans, front-to-rear
Controls:Power switch, input attenuators
Indicators:Signal, Clip, Protect, 4-fold LED meter
Construction:Steel chassis, aluminum front panel
Power/weight-relation:120 W/ kg
Packaging units
PU EAN Weight Dimensions
1 4026397198836 13,50 kg 62cm x 58cm x 10cm
Spare parts
Loading spareparts. Please wait...
User manual
Name Version Language
10451715-Manual-4464-1.100-de_en_fr.pdf (750 KB) 1.100 de_en_fr
Data sheet
Name Version Language
10451715-Datasheet-8610-de_en.pdf (2 MB) 0.000 de_en
