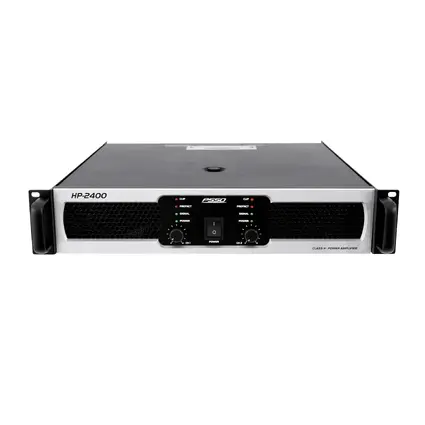

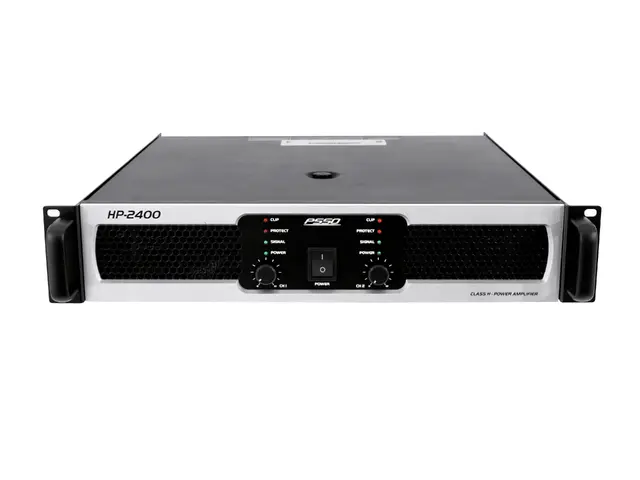

High-power amplifier 2 x 1200 W/4 ohms
PSSO HP-2400 Amplifier

PSSO

High-power amplifier 2 x 1200 W/4 ohms

PSSO HP-2400 Amplifier

Item no. 10451651

svg
No-frills power packs,
housed in modern class-H technology. The HP-series combines high impulse stability and convincing power reserves with moderate weight, coupled with steadfast operational reliability. For this, high quality components and an extensive packet of protective circuits are responsible.
Features

High-power amplifier 2 x 1200 W/4 ohms

  • Class H technology
  • Power supply with softstart
  • High impulse stability
  • Stable metal housing
  • Plain design with aluminum front panel
  • Rack installation with 2 units
  • Complete protection set against overheat, overload, short-circuit, DC, softstart
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • Electronically balanced inputs via XLR/Jack mounting sockets
  • Outputs via lockable Speaker-plugs
  • Operation mode visible via LED display for Signal, Protect and Clip
  • Calibrated input controls for exact level control, power switch
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • 30 Hz Low Cut on the rear panel
  • Combines superior sound quality with highest reliabilty at significant lower weight
  • Stable permanent power for all models
  • Reliable power amp for a wide range of applications
Technical specifications
Power output (RMS):
Stereo 4 ohms2 x 1200 W
Stereo 8 ohms2 x 690 W
8 ohms bridged1 x 2400 W
Signal-to-noise ratio:>88 dB
Total harmonic distortion:0.1 %
Damping factor:450
Voltage gain:34.3 dB
Slew rate:30 V/µsec.
Crosstalk:72 dB
Input sensitivity:0.77/1/1.4 V
Input impedance:10/20 kohms (bal./unbal.)
Input connectors:2 x XLR mounting socket
Output connectors:2 x Speaker (stereo), 1 x binding post (bridge)
Protection:Overheat, overload, short-circuit, DC, softstart
Cooling:2 fans
Controls:Power switch, input attenuators, mode switch (stereo/parallel/bridged), ground lift
Indicators:Signal, Clip, Protect, Power
Construction:Steel chassis, aluminum front panel
Rack installation with 2 U
Power supply:230 V AC, 50 Hz
Power consumption:1300,00 W 1/8 power
Power/channel (4 Ohm):1200 W
Power/channel (8 Ohm):690 W
Frequency range:20 - 20000 Hz
Height:8,9 cm
Width:48,3 cm
Depth:45,6 cm
Weight:22 kg
Packaging units
PU EAN Weight Dimensions
1 4026397308983 29,10 kg 60cm x 60cm x 18cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
10451651-Manual-32450-1.000-de_en.pdf (673 KB) 1.000 de_en
Catalog pages
Service document
Name Version Language
10451651-Service-38417-1.000-en.rar (164 KB) 1.000 en
All images
Name Version Language
10451651-Images.zip
