Class D stereo PA amplifier with SMPS, 2 x 1000 W RMS (8 ohms), 2 x 1700 W RMS (4 ohms)

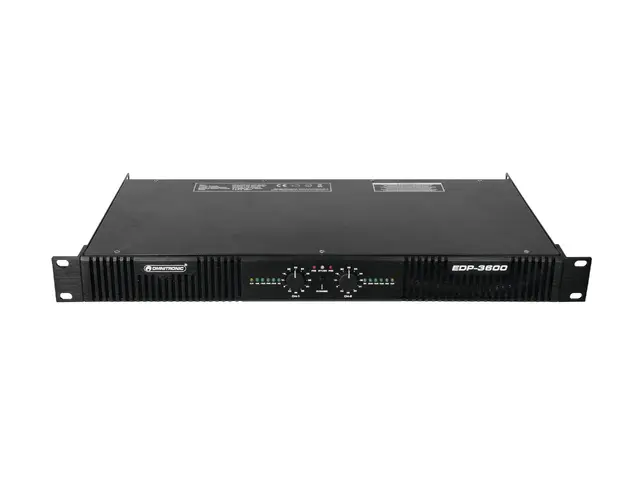

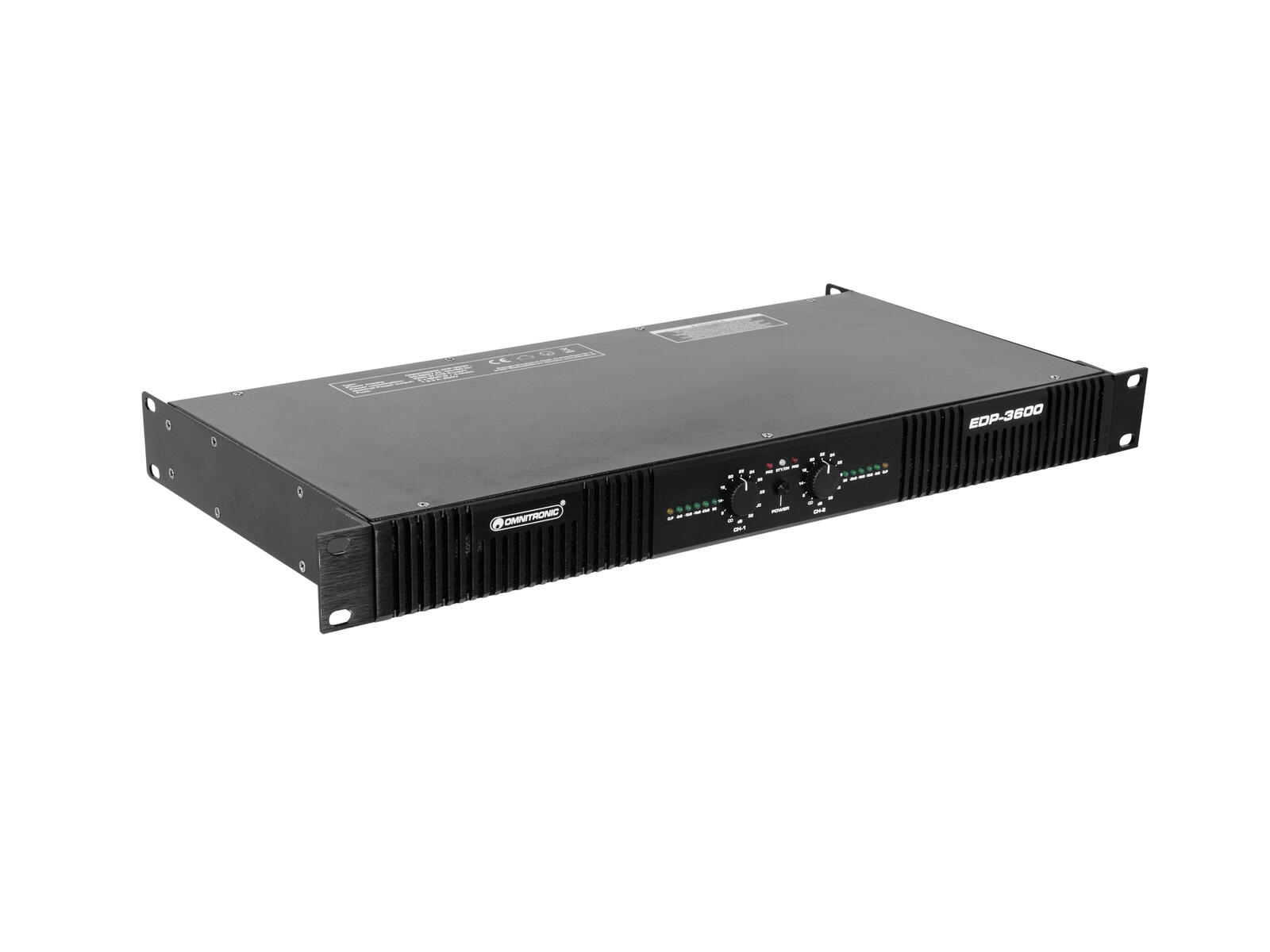

OMNITRONIC EDP-3600 Class D Amplifier

The article is no longer in our assortment.

Check out the alternatives:

No. 10451615

Features

Class D stereo PA amplifier with SMPS, 2 x 1000 W RMS (8 ohms), 2 x 1700 W RMS (4 ohms)

Stereo PA amplifier with class D circuitry
Low weight and height due to integrated switch mode power supply
Speaker switch-on delay and auto limiters
2 operating modes can be selected (stereo or bridged)
2 level controls
LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
Complete protection set against short-circuit, overheat, clipping, overload and VHF signals
Electronically balanced inputs via XLR mounting jacks
Speaker outputs via lockable Speaker plugs
Robust steel chassis with aluminum front panel
Rack installation with 1 unit
(19") 48.3 cm rack installation

Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	1050,00 W 1/8 power
Output power:	2 x 1000 W RMS (8 ohms) 2 x 1700 W RMS (4 ohms)
Circuitry:	Class D
Housing design:	(19") 48.3 cm rack installation
Dimensions:	Width: 48,3 cm Depth: 25 cm Height: 4,45 cm
Weight:	4,30 kg
Power output (RMS):
stereo 4 ohms	2 x 1700 W
stereo 8 ohms	2 x 1000 W
8 ohms bridged	1 x 3600 W
Frequency range:	20-20000 Hz, ±0.5 dB
Damping factor:	>250
Distortion factor:	<0.1 %
Slew rate:	20 V/µsec
S/N ratio:	>95 dB
Input impedance:	20 kohms (balanced), 10 kohms (unbalanced)
Input connectors:	2 x XLR
Output connectors:	2 x Speaker, 2 x XLR feed-through output
Circuitry:	class D + PFC
Control elements:	power switch, level control per channel, mode switch (stereo/bridged)
LED indicators:	protect, clip, signal, -6 dB, -12 dB, -18 dB, -25 dB (per channel)
Protection circuits:	softstart, short-circuit, overheat, clipping, overload and VHF signals
Construction:	steel chassis, aluminum front
Dimensions (DxWxH):	250 x 483 x 44 mm (19", 1 U)

Packaging units

PU	EAN	Weight	Dimensions
1	4026397507218	4,75 kg	54,5cm x 27cm x 8cm
5	4026397512359	24,75 kg	56cm x 28,5cm x 43cm
