Stereo PA amplifier with integrated SMPS 2 x 180 W

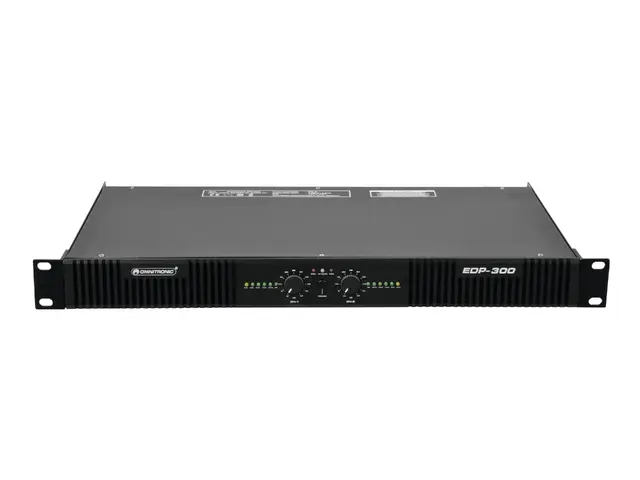

OMNITRONIC EDP-300 Class D Amplifier

OMNITRONIC

Stereo PA amplifier with integrated SMPS 2 x 180 W

OMNITRONIC EDP-300 Class D Amplifier

Item no. 10451610

The low-weight EDP series with switch mode power supply is designed for average PA requirements. It boasts optimal space-saving installation dimensions, most suitable for bars, music pubs, restaurants and as expansion of existing systems and for compact mobile systems.
Features
  • Stereo PA amplifier with class D circuitry
  • Low weight and height due to integrated switch mode power supply
  • Speaker switch-on delay and auto limiters
  • 2 operating modes can be selected (stereo or bridged)
  • 2 level controls
  • LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
  • Complete protection set against short-circuit, overheat, clipping, overload and VHF signals
  • Electronically balanced inputs via XLR mounting jacks
  • Speaker outputs via lockable Speaker plugs
  • Robust steel chassis with aluminum front panel
  • Rack installation with 1 unit
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power output sine:
stereo 4 ohms2 x 180 W
stereo 8 ohms2 x 100 W
8 ohms bridged1 x 360 W
Frequency range:20-20000 Hz, ±0.5 dB
Damping factor:>200
Distortion factor:0.05 %
Slew rate:20 V/µsec
S/N ratio:100 dB
Input impedance:20 kohms (balanced), 10 kohms (unbalanced)
Input connectors:2 x XLR
Output connectors:2 x Speaker (L/R), 1 x Speaker (bridge)
Circuitry:class D + PFC
Control elements:power switch, level control per channel, mode switch (stereo/bridged)
LED indicators:protect, clip, signal level (per channel)
Protection circuits:softstart, short-circuit, overheat, clipping, overload and VHF signals
Construction:steel chassis, aluminum front
Dimensions (DxWxH):250 x 483 x 44 mm (19", 1 U)
Weight:3.2 kg
Power consumption:400.00 W
Height:4,45 cm
Depths:25 cm
Width:48,3 cm
Packaging units
PU EAN Weight Dimensions
1 4026397404364 5,00 kg 53,5cm x 31,5cm x 11cm
5 4026397514568 25,90 kg 55cm x 33,5cm x 61cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00052571.pdf 1.00 de/en
00081020.pdf 1.10 de/en
Catalog pages
Name Version Language
00097688.pdf 25.00 de
00097862.pdf 25.00 en
Service document
Name Version Language
Circuit diagram00070793.pdf 1.00 en
Video file
Name Version Language
00057759.flv 0.00 es/fr/en/de
All images
Name Version Language
10451610.zip
