Extremely compact digital amplifier

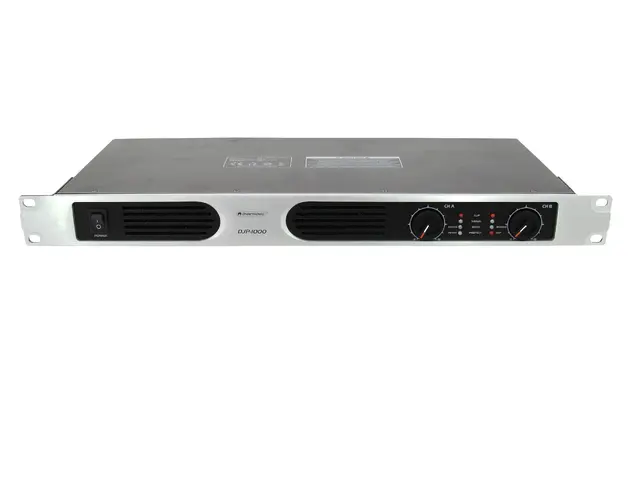

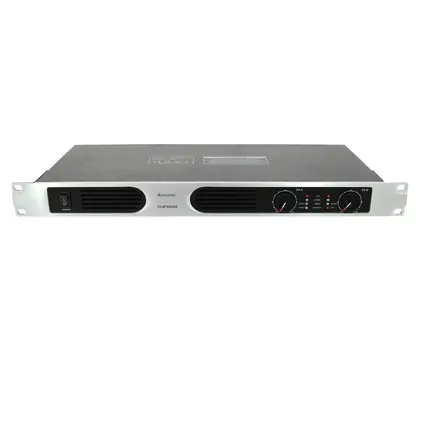

OMNITRONIC DJP-1000, Digital amp 2x500W

OMNITRONIC

Extremely compact digital amplifier

OMNITRONIC DJP-1000, Digital amp 2x500W

Item no. 10451605

Features
  • Extremely efficient due to SMPS technology
  • Advantages in low weight and little space due to switch mode power supply instead of large and heavy transformers
  • Switch mode power supply
  • High efficiency, operation via safety power outlet
  • Extremely wide frequency range covers the whole bandwidth
  • Power supply with softstart
  • High impulse stability
  • Stable metal housing, light and compact
  • Plain design with aluminum frontpanel
  • Rack installation with only 1 unit!
  • Complete protection set against overheat, overload, short-circuit
  • Switchable limiter (Comp)
Technical specifications
Power supply:230 V AC, 50 Hz
Power output (RMS):
Stereo 4 ohms2 x 500 W
Bridged 8 ohms1 x 1000 W
Signal-to-Noise ratio:>102 dB
Total Harmonic distortion:0.03 %
Input connectors:2 x XLR, 2 x Jack mounting socket
Output connectors:2 x pole terminal
Protection:Overheat, overload, short-circuit, limiter
Cooling:2 radial fans
Controls:Power switch, input attenuators
Indicators:Signal, Clip, Mode, Protect
Construction:Steel chassis, aluminum front panel
Dimensions:220 x 482 x 44 mm
Power consumption:1050.00 W
Weight:4 kg
Frequency range:10 - 50000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397246421 4,80 kg 53cm x 28cm x 12cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00015871.pdf 1.00 de/en/fr
