Powerful PA amplifier for large stages

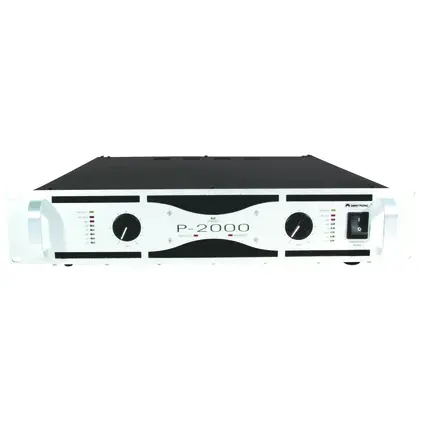

OMNITRONIC P-2000 Amplifier, 2x1000W/4ohm

OMNITRONIC

Powerful PA amplifier for large stages

OMNITRONIC P-2000 Amplifier, 2x1000W/4ohm

Item no. 10451180

Features
  • 2 x 1000 W/4 ohm
  • Enormous power with highest brilliance
  • 2 gain controls on the front panel
  • All operation modes controllable via LEDs
  • LED intensity adjustable via brightness control on the rear panel
  • Signal inputs via XLR female or 6.3 mm jack socket
  • Input sensitivity adjustable via selector on the rear panel
  • Speaker connection via lockable Speaker plugs or Banana/screw combination
  • With limiter
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • Many protection circuits for optimized equipment protection
  • Very rugged housing
  • Rack installation
  • High power/weight-relation
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Power range:230 V ±10 % (207-253 V)
Power output sine:
Stereo 4 ohms2 x 1000 W
Stereo 8 ohms2 x 625 W
8 ohms bridged1 x 1875 W
Frequency range:40-40000 Hz, ±3 dB
Damping factor:>400
Distortion factor:0.01 %
Signal-to-noise ratio:90 dB
Channel seperation (at 1 kHz):70 dB
Min. input sensitivity:0.77 V/26 dB/1.4 V
Input impedance:20 kohms (balanced)
Slew rate:60 V/µsec
Input connectors:2 x XLR female plug, 2 x 6.3 mm jack plug
Output connectors:2 x Speaker (stereo), 1 x Speaker (bridge), 2 x Banana/screw combination
Control elements:Power switch, input attenuators (one per channel), Mode switch - Stereo/Parallel/Bridged, Ground Lift, Input-Level-Select (0.77 V/26 dB/1.44 V), limiter
LED indicators (per channel):Power, Protect, Signal, Mode
Protection circuits:Short-circuit, DCt, thermal, softstart
Construction:Steel chassis, aluminum front panel
Dimensions:490 x 482 x 100 mm
Minimum mounting depth:510 mm
Power consumption:3500.00 W
Weight:17 kg
Height:8,9 cm
Depths:49 cm
Width:48,3 cm
Packaging units
PU EAN Weight Dimensions
1 4026397145861 18,50 kg 51cm x 49cm x 15cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00015438.pdf 3.30 de/en/fr

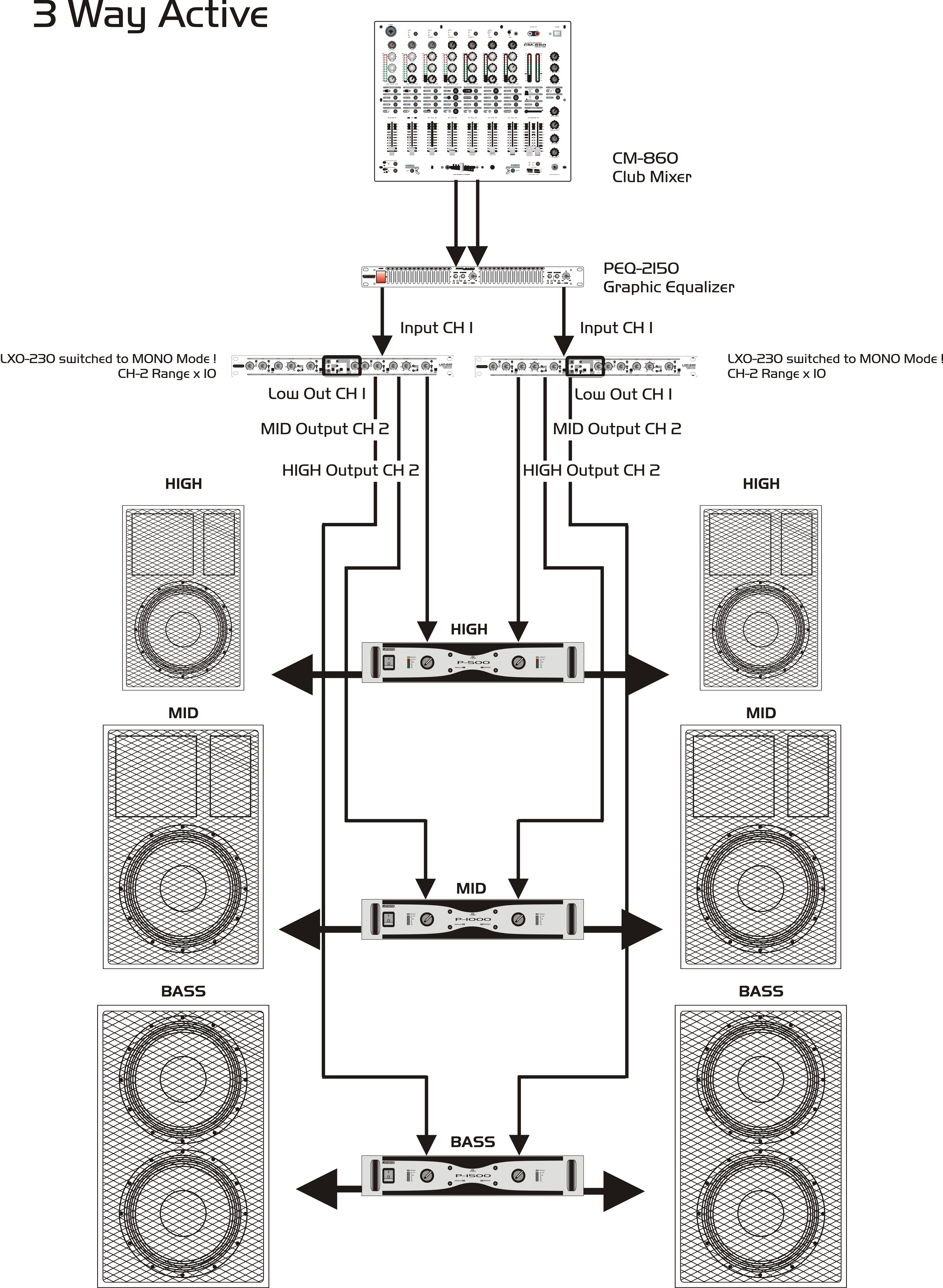

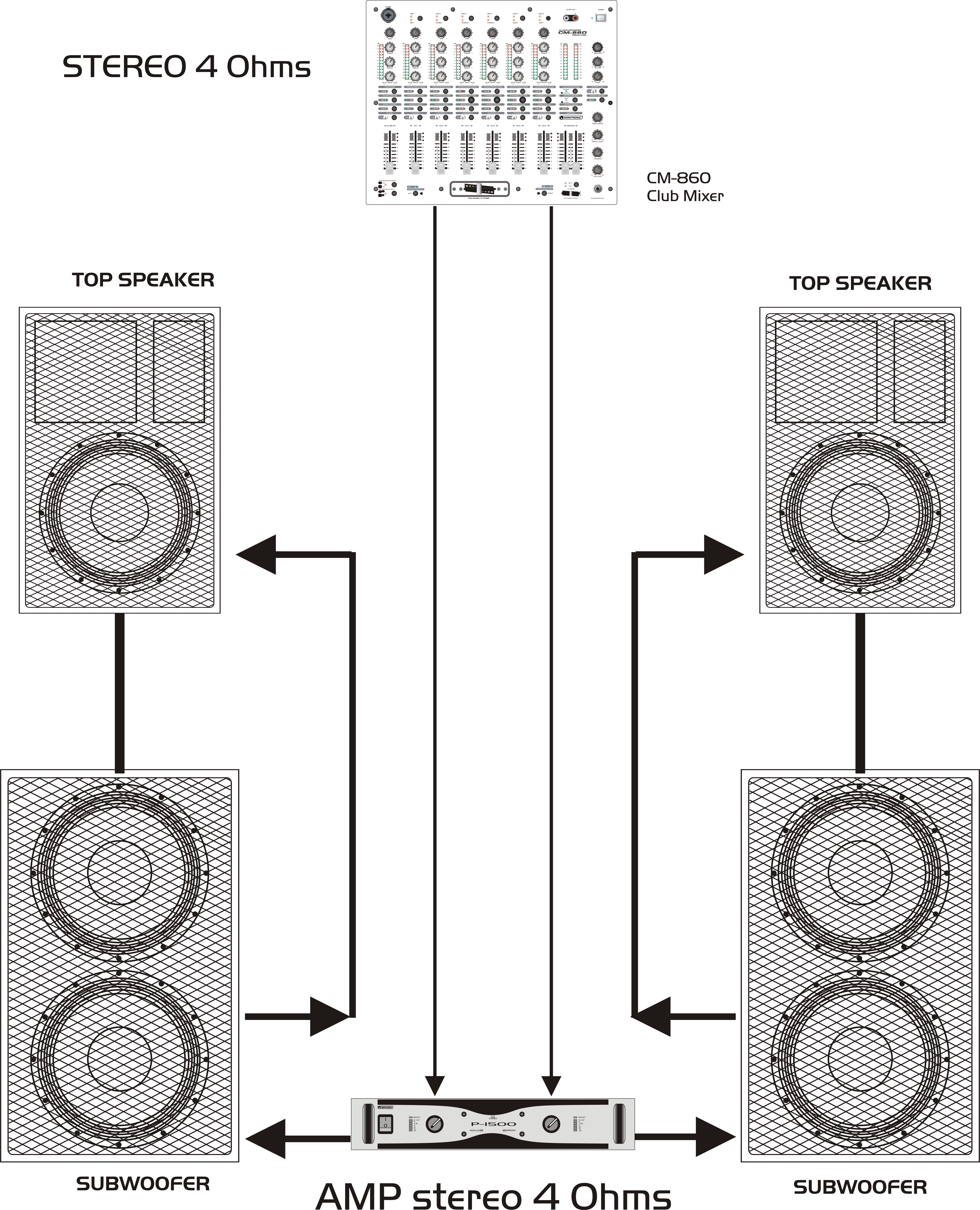

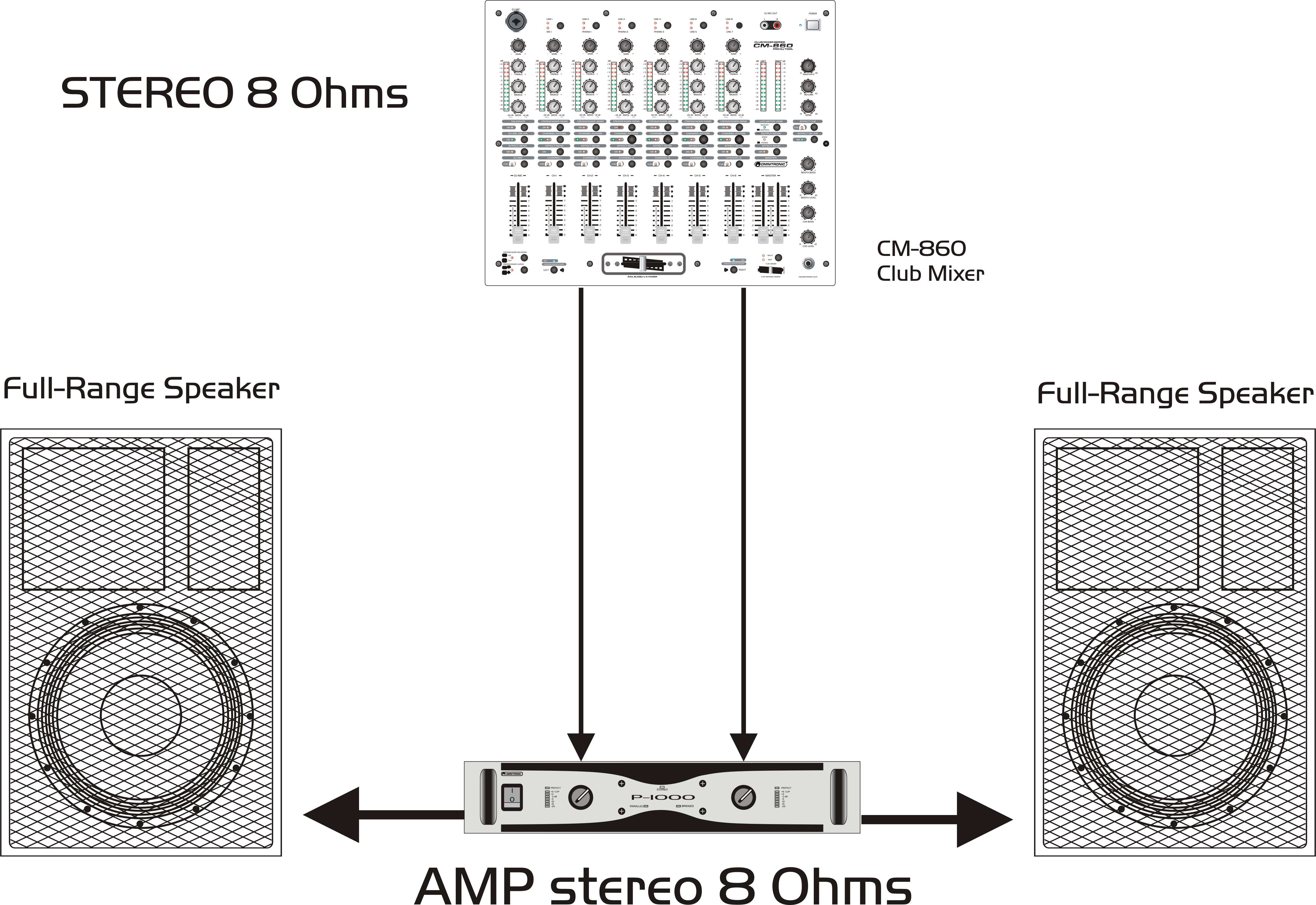

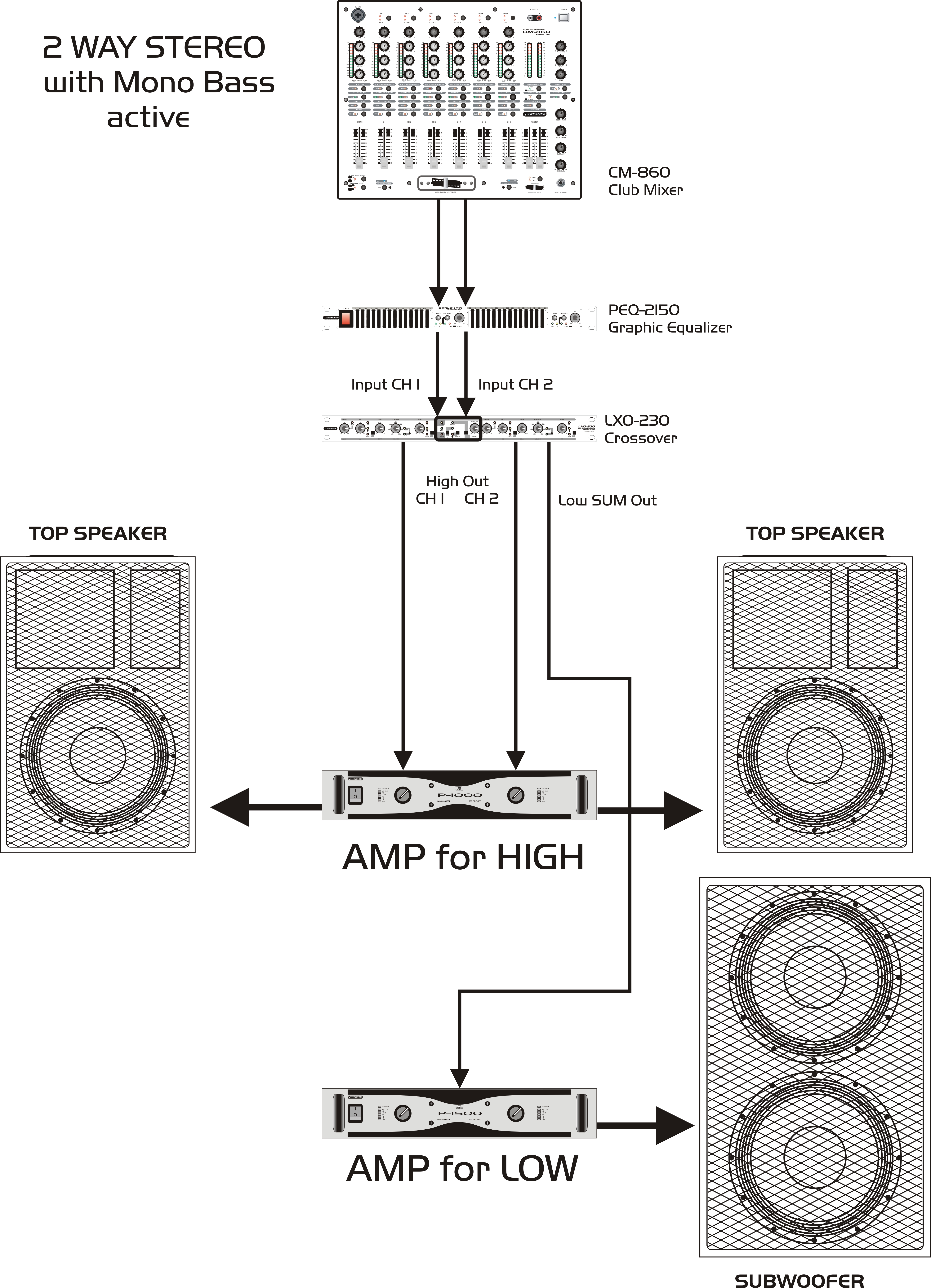

Illustration
Name Version Language
00008030.pdf 0.00 en
00008424.jpg 0.00 en
00008425.jpg 0.00 en
00008426.jpg 0.00 en
00008427.jpg 0.00 en
00008428.jpg 0.00 en

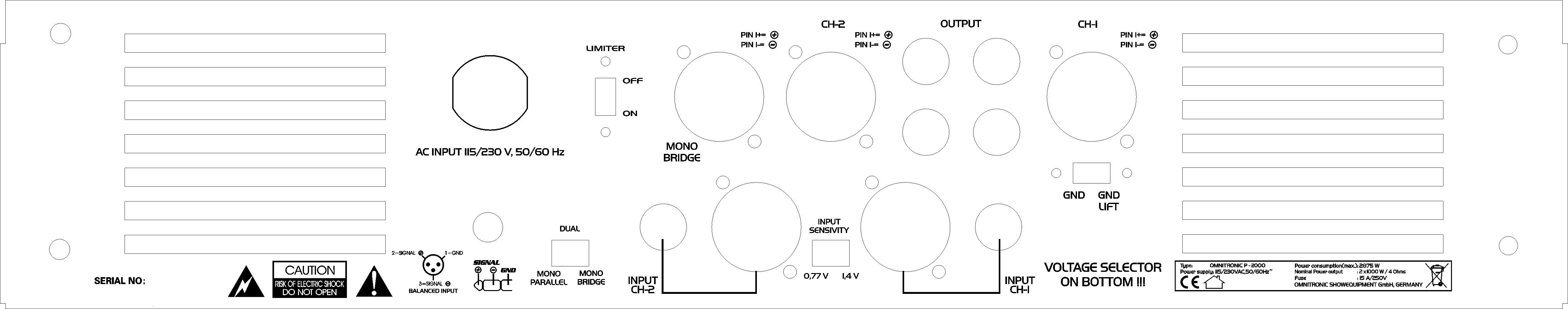

Rear
0.00 de

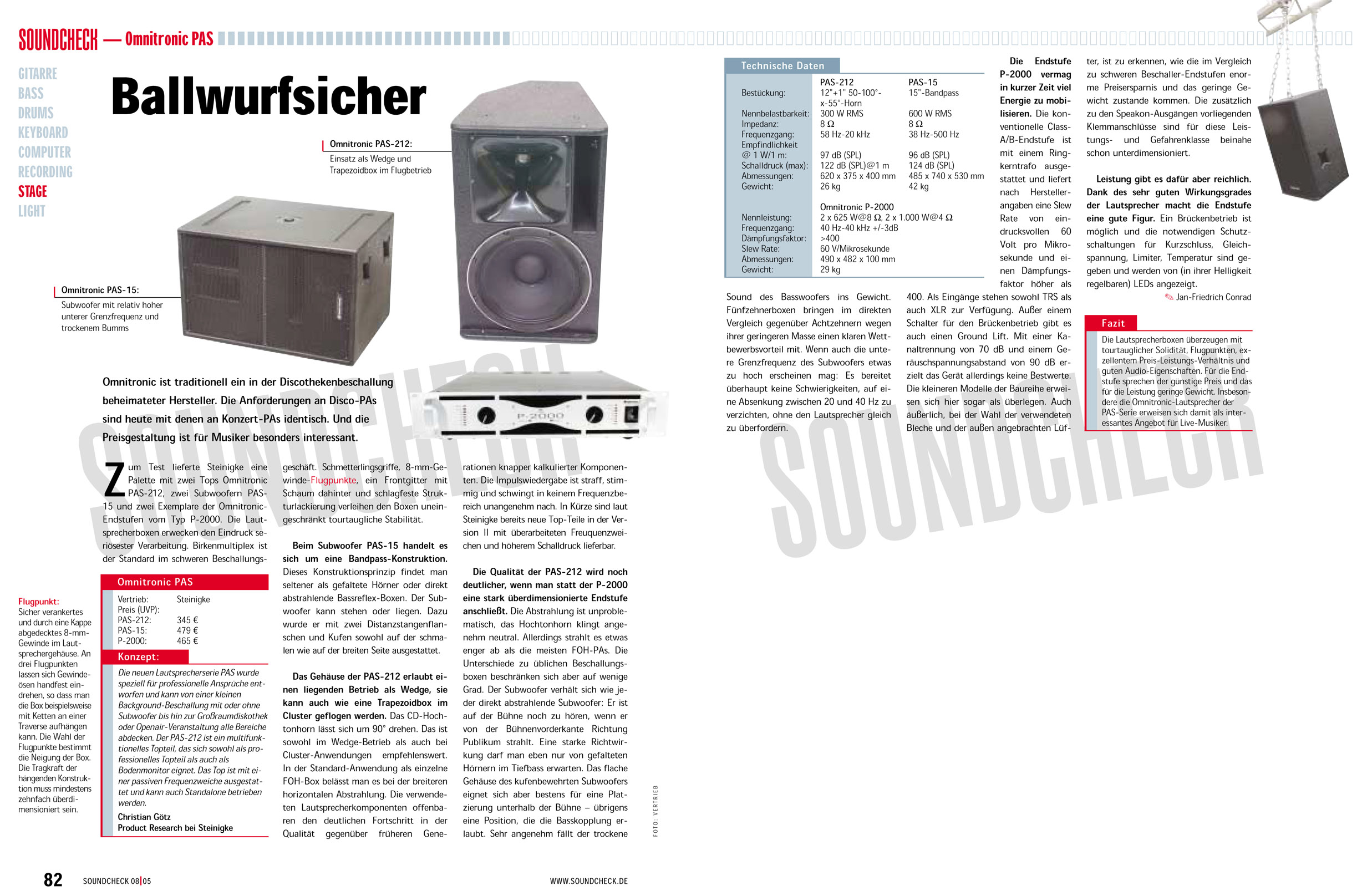

Press report
Name Version Language
Soundcheck_08_05
0.00 de/es
Service document
Name Version Language
00005786.pdf 2.00 de
All images
Name Version Language
10451180.zip
