Powerful PA amplifier for large stages
| Power range: | 230 V ±10 % (207-253 V) |
| Momentary music peak power at 1 kHz: | 1950 W / 4 ohms |
| Maximum power output: | 2 x 840 W / 4 ohms |
| Nominal power output: | 2 x 750 W / 4 ohms |
| Power output sine: | |
| Stereo 4 ohms | 2 x 750 W |
| Stereo 8 ohms | 2 x 390 W |
| 8 ohms bridged | 1 x 1250 W |
| Damping factor: | >200 |
| Distortion factor: | 0.01 % |
| Signal-to-noise ratio: | 108 dB |
| Channel seperation (at 1 kHz): | 89 dB |
| Min. input sensitivity: | 0.77 V/26 dB/1.44 V |
| Input impedance: | 12 kohms (unbalanced), 22 kohms (balanced) |
| Output impedance: | >0.02 ohms |
| Slew rate: | >40 V/µsec |
| Input connectors: | 2 x XLR female plug, 2 x 6.3 mm jack plug |
| Output connectors: | 2 x Speaker (stereo), 1 x Speaker (bridge), 2 x Banana/screw combination |
| Control elements: | Power switch, input attenuators (one per channel), Mode switch - Stereo/Parallel/Bridged, Ground Lift, Input-Level-Select (0.77 V/26 dB/1.44 V), limiter |
| LED indicators (per channel): | Power, Protect, Signal, Mode |
| Protection circuits: | Short-circuit, DC, thermal, softstart |
| Construction: | Steel chassis, aluminum front panel |
| Dimensions: | 445 x 482 x 100 mm |
| Minimum mounting depth: | 460 mm |
| Power consumption: | 2120,00 W |
| Weight: | 14,5 kg |
| Frequency range: | 20 - 31000 Hz |
| Height: | 8,9 cm |
| Depth: | 44,5 cm |
| Width: | 48,3 cm |
| Power/channel (8 Ohm): | 390 W |
| Power supply: | 115/230 V AC, 50/60 Hz |
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397135589 | 16,90 kg | 50cm x 49cm x 14cm |
| Name | Version | Language |
|---|---|---|
| 10451170-Manual-15438-3.30-de_en_fr.pdf (5 MB) | 3.30 | de_en_fr |
| Name | Version | Language |
|---|---|---|
| 10451170-Illustration-8030-en.pdf (4 MB) | 0.00 | en |

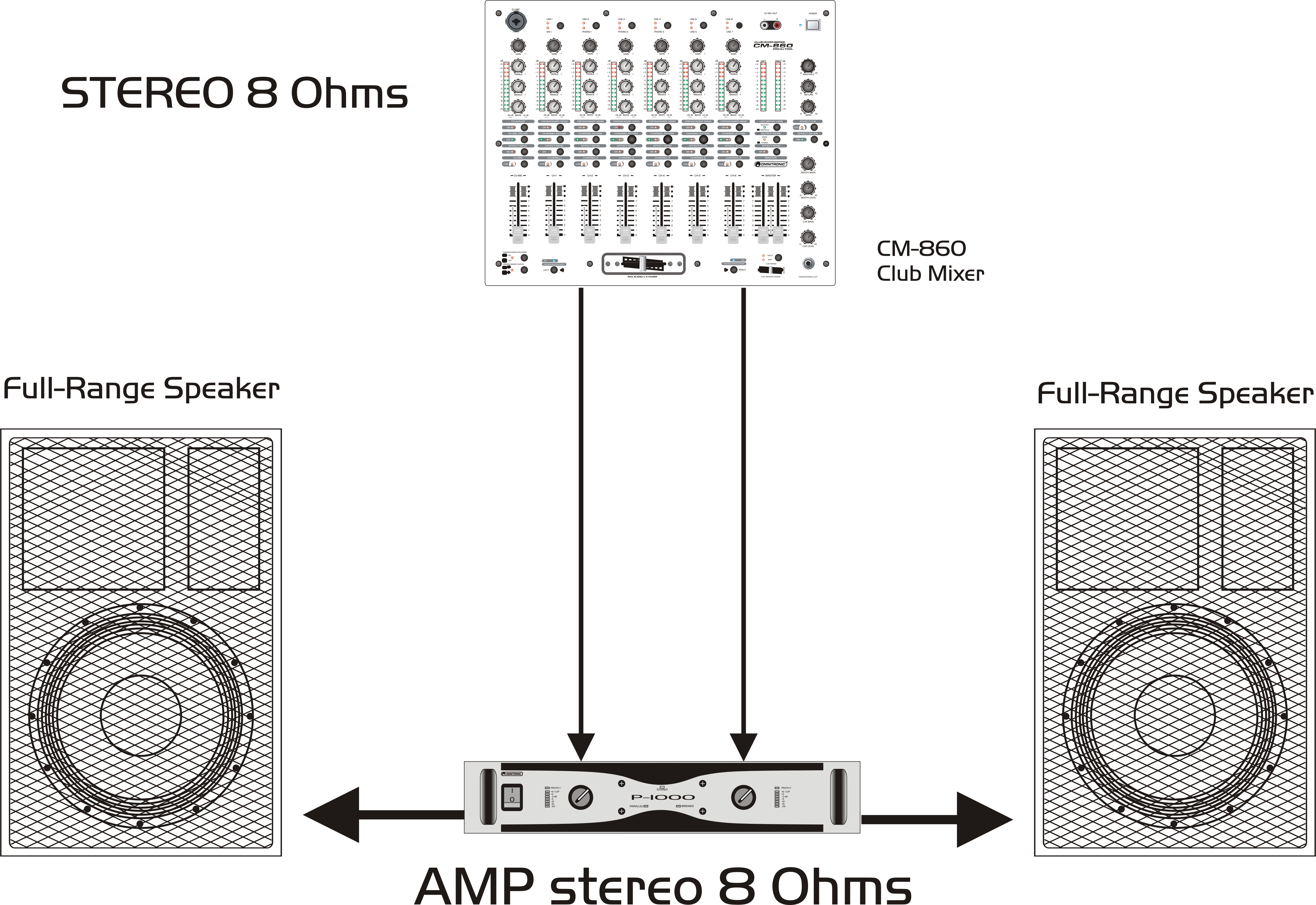

| 10451170-Illustration-8424-en.jpg (4 MB) | 0.00 | en |
| 10451170-Illustration-8425-en.jpg (8 MB) | 0.00 | en |

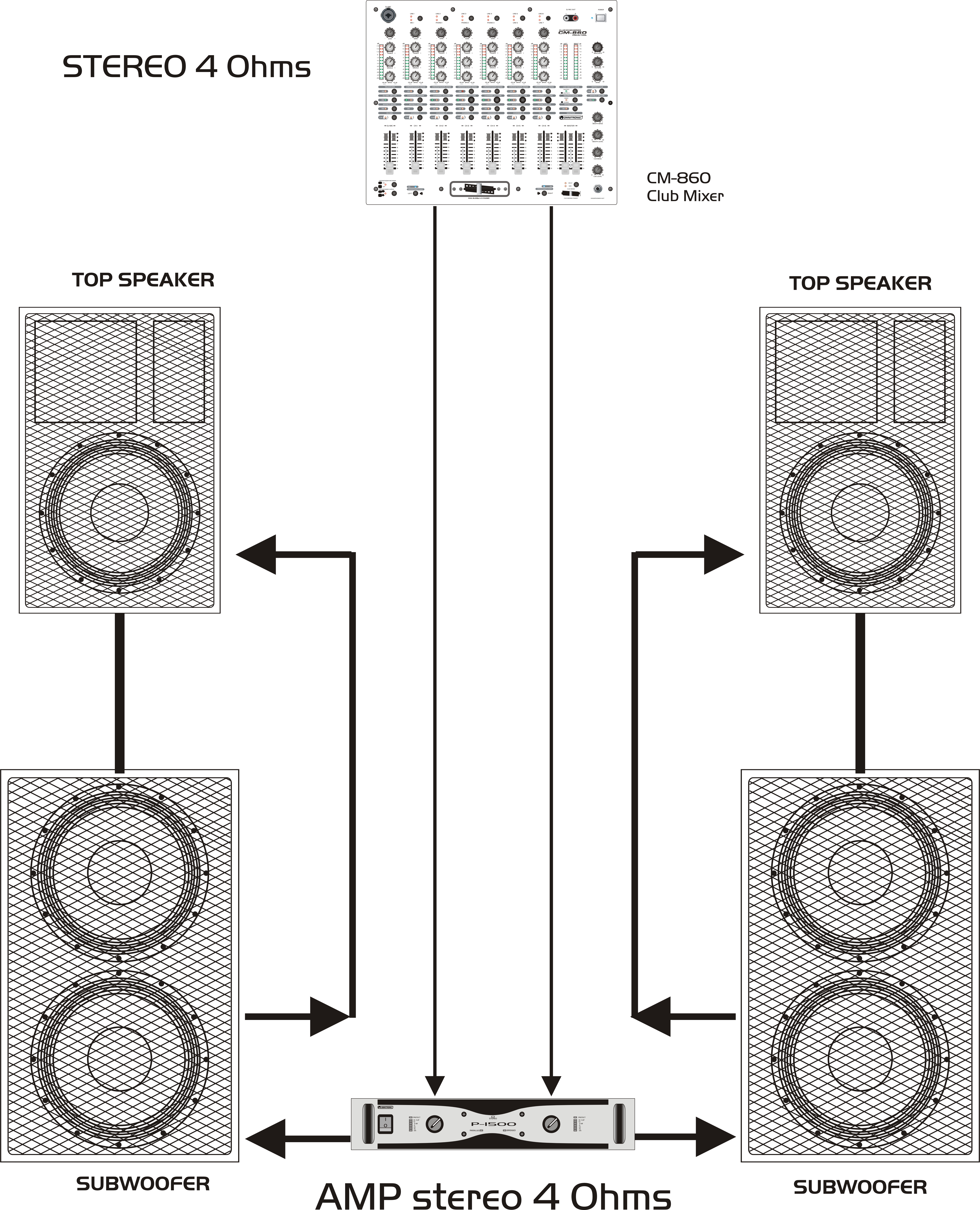

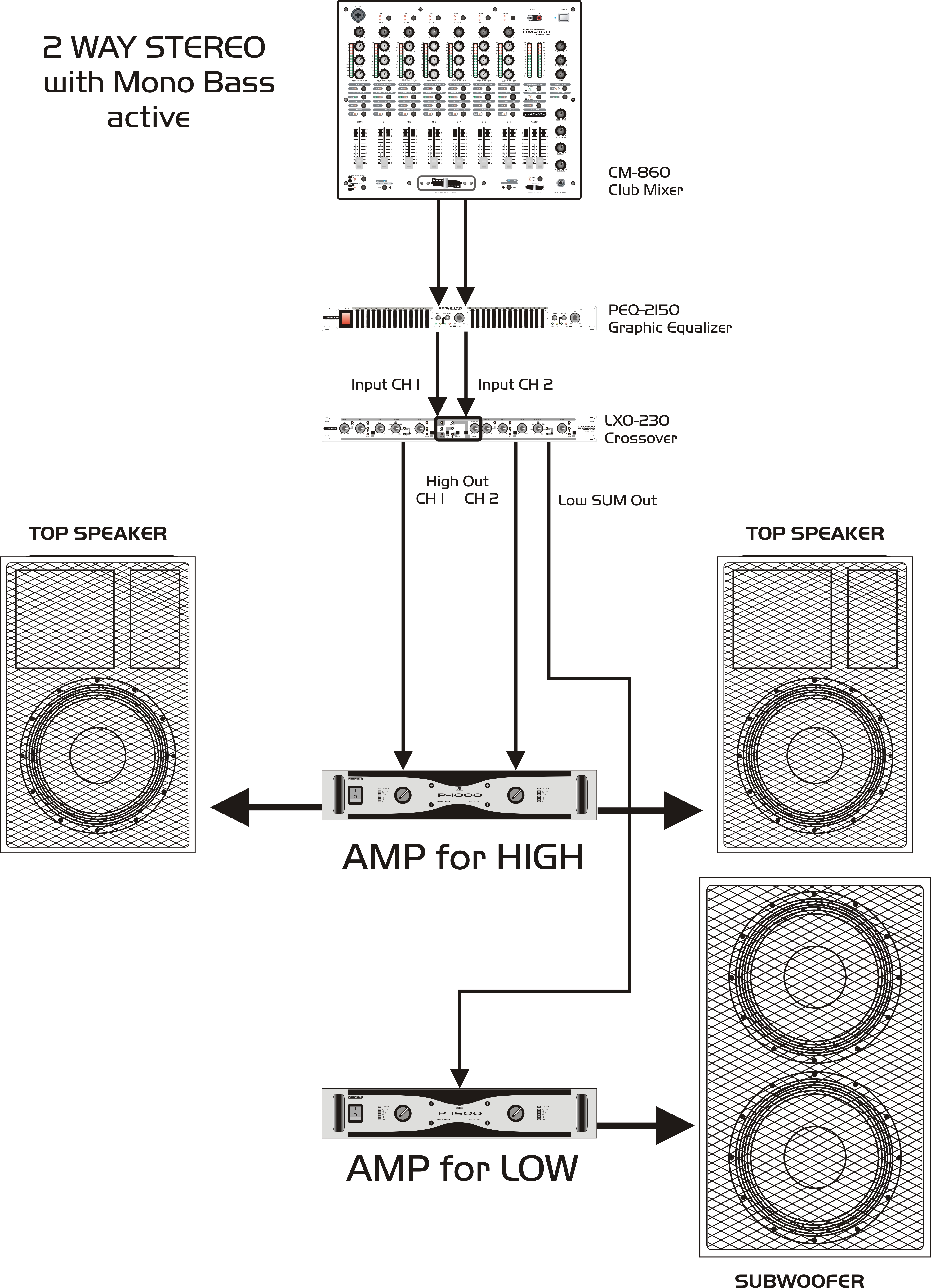

| 10451170-Illustration-8426-en.jpg (7 MB) | 0.00 | en |

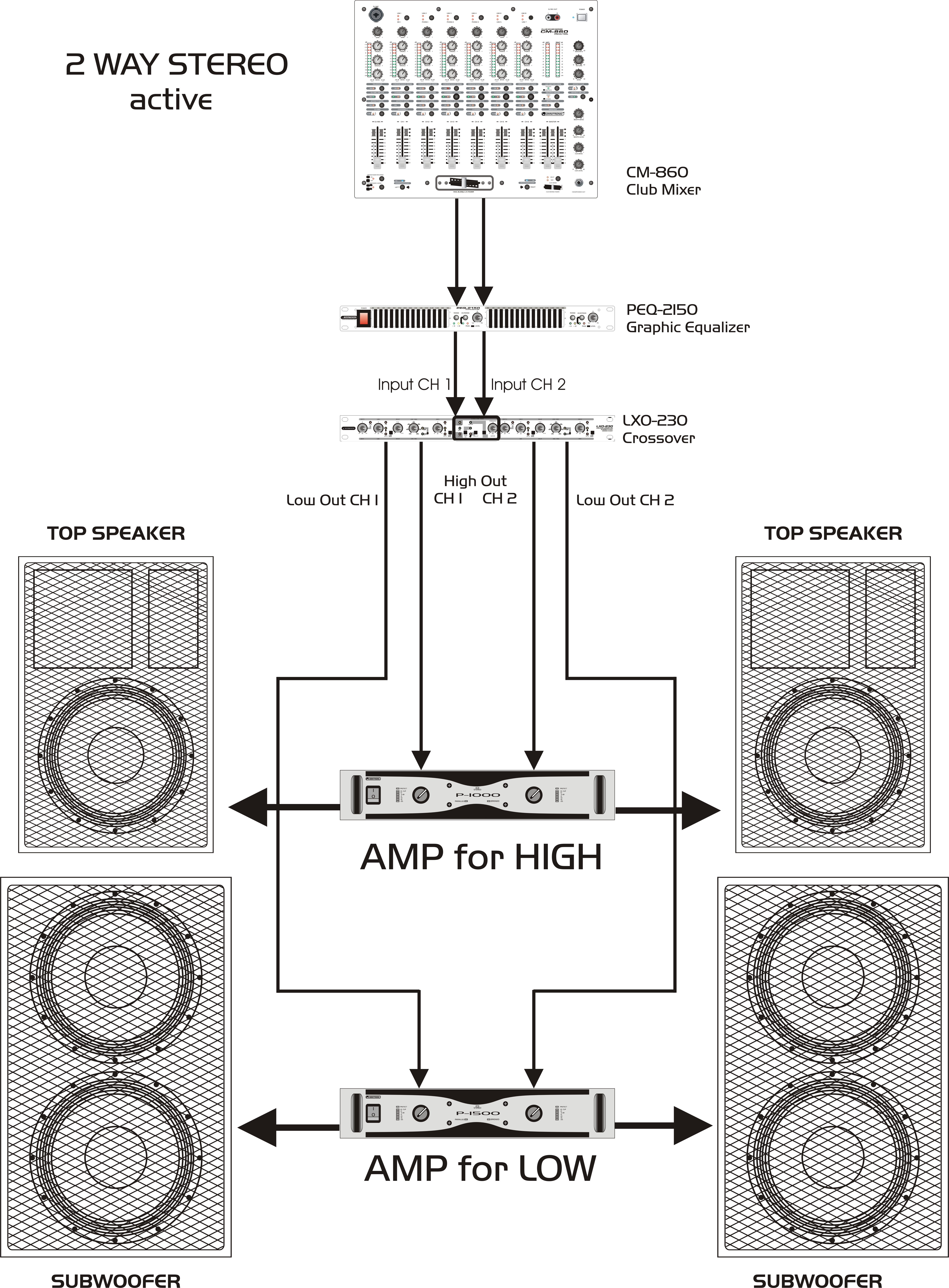

| 10451170-Illustration-8427-en.jpg (9 MB) | 0.00 | en |

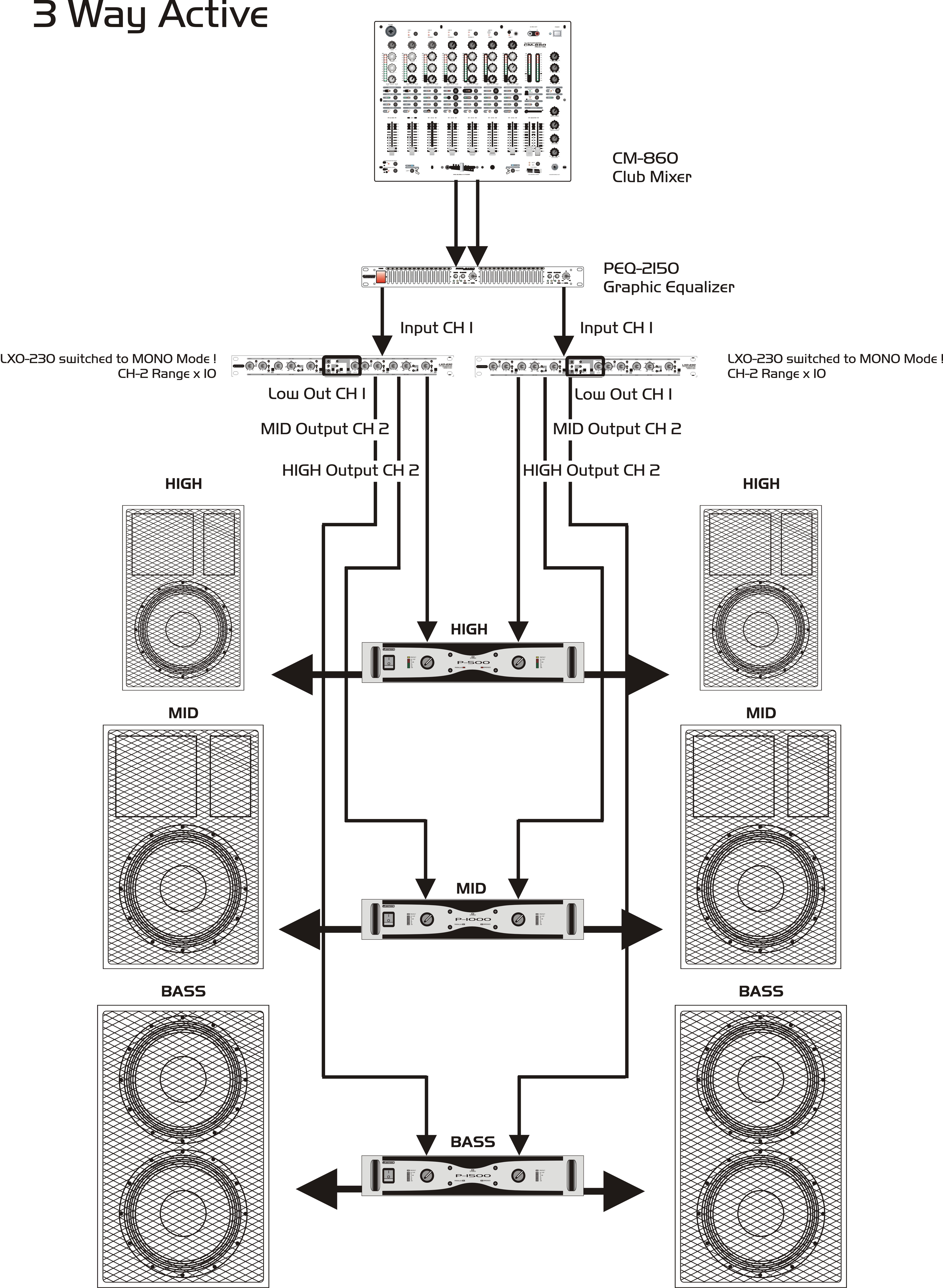

| 10451170-Illustration-8428-en.jpg (7 MB) | 0.00 | en |
| Name | Version | Language |
|---|---|---|
| 10451170-Service-5786-2.00-de.pdf (169 KB) | 2.00 | de |
| Name | Version | Language |
|---|---|---|
| 10451170-Images.zip |
