Powerful PA amplifier

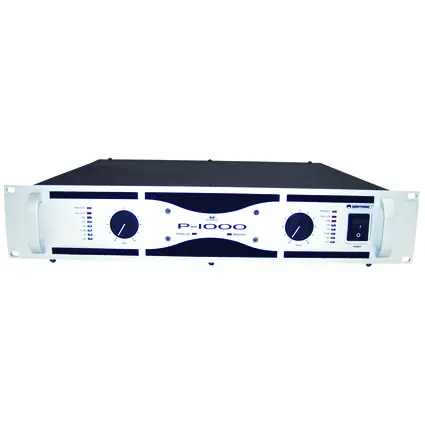

OMNITRONIC P-1000 Amplifier, 2x500W/4 ohm

OMNITRONIC

Powerful PA amplifier

OMNITRONIC P-1000 Amplifier, 2x500W/4 ohm

Item no. 10451150

Features

Powerful PA amplifier

  • 2 x 500 W/4 ohm
  • Enormous power with highest brilliance
  • 2 gain controls on the frontpanel
  • All operation modes controllable via LEDs
  • LED intensity adjustable via brightness control on the rear panel
  • Signal inputs via XLR female or 6.3 mm jack socket
  • Input sensitivity adjustable via selector on the rear panel
  • Speaker connection via lockable Speaker-plugs or Banana/screw combination
  • With limiter
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • Many protection circuits for optimized equipment-protection
  • Very rugged housing
  • Rack installation
  • High power/weight-relation
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Power consumption:1300.00 W
Output power:245 W RMS (8 ohms)
Frequency range:22 - 31000 Hz
Width:48.3 cm
Height:8.9 cm
Depth:44.5 cm
Weight:13.00 kg
Power range:230 V ±10 % (207-253 V)
Momentary music peak power at 1 kHz:1270 W / 4 ohms
Maximum power output:2 x 582 W / 4 ohms
Nominal power output:2 x 500 W / 4 ohms
Power output sine:
Stereo 4 ohms2 x 500 W
Stereo 8 ohms2 x 245 W
8 ohms bridged1 x 850 W
Damping factor:>200
Distortion factor:0.01 %
Signal-to-noise ratio:108 dB
Channel seperation (at 1 kHz):89 dB
Min. input sensitivity:0.77 V/26 dB/1.44 V
Input impedance:12 kohms (unbalanced), 22 kohms (balanced)
Output impedance:>0.02 ohms
Slew rate:>35 V/µsec
Input connectors:2 x XLR female plug, 2 x 6.3 mm jack plug
Output connectors:2 x Speaker (stereo), 1 x Speaker (bridge), 2 x Banana/screw combination
Control elements:Power switch, input attenuators (one per channel), Mode switch - Stereo/Parallel/Bridged, Ground Lift, Input-Level-Select (0.77 V/26 dB/1.44 V), limiter
LED indicators (per channel):Power, Protect, Signal, Mode
Protection circuits:Short-circuit, DC, thermal, softstart
Construction:Steel chassis, aluminum front panel
Minimum mounting depth:460 mm
Packaging units
PU EAN Weight Dimensions
1 4026397135572 14,25 kg 51cm x 48,5cm x 14,5cm
