Powerful professional amplifier

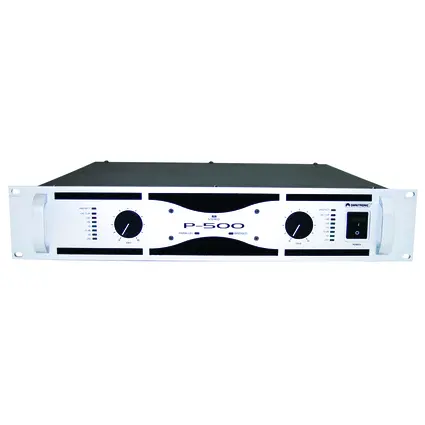

OMNITRONIC P-500 Amplifier, 2x250W/4 ohms

OMNITRONIC

Powerful professional amplifier

OMNITRONIC P-500 Amplifier, 2x250W/4 ohms

Item no. 10451130

Features
  • 2 x 250 W/4 ohm
  • Enormous power with highest brilliance
  • 2 gain controls on the frontpanel
  • All operation modes controllable via LEDs
  • LED intensity adjustable via brightness control on the rear panel
  • Signal inputs via XLR female or 6.3 mm jack socket
  • Input sensitivity adjustable via selector on the rear panel
  • Speaker connection via lockable Speaker plugs or Banana/screw combination
  • With limiter
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • Many protection circuits for optimized equipment protection
  • Very rugged housing
  • Rack installation
  • High power/weight-relation
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Power range:230 V ±10 % (207-253 V)
Momentary music peak power at 1 kHz:650 W / 4 ohms
Maximum power output:2 x 295 W / 4 ohms
Nominal power output:2 x 250 W / 4 ohms
Power output sine:
Stereo 4 ohms2 x 250 W
Stereo 8 ohms2 x 130 W
8 ohms bridged1 x 500 W
Damping factor:>150
Distortion factor:0.01 %
Signal-to-noise ratio:108 dB
Channel seperation (at 1 kHz):89 dB
Min. input sensitivity:0.77 V/26 dB/1.44 V
Input impedance:12 kohms (unbalanced), 22 kohms (balanced)
Output impedance:>0.02 ohms
Slew rate:>30 V/µsec
Input connectors:2 x XLR female plug, 2 x 6.3 mm jack plug
Output connectors:2 x Speaker (stereo), 1 x Speaker (bridge), 2 x Banana/screw combination
Control elements:Power switch, input attenuators (one per channel), Mode switch - Stereo/Parallel/Bridged, Ground Lift, Input-Level-Select (0.77 V/26 dB/1.44 V), limiter
LED indicators (per channel):Power, Protect, Signal, Mode
Protection circuits:Short-circuit, DC, thermal, softstart
Construction:Steel chassis, aluminum front panel
Dimensions:445 x 482 x 100 mm
Minimum mounting depth:460 mm
Power consumption:1000.00 W
Weight:10,25 kg
Frequency range:22 - 31000 Hz
Height:8,9 cm
Depths:44,5 cm
Width:48,3 cm
Packaging units
PU EAN Weight Dimensions
1 4026397135558 12,35 kg 50,5cm x 48cm x 14cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00015438.pdf 3.30 de/en/fr
Illustration
Name Version Language
00008030.pdf 0.00 en
00008424.jpg 0.00 en
00008425.jpg 0.00 en
00008426.jpg 0.00 en
00008427.jpg 0.00 en
00008428.jpg 0.00 en
Service document
Name Version Language
00005786.pdf 2.00 de
All images
Name Version Language
10451130.zip
