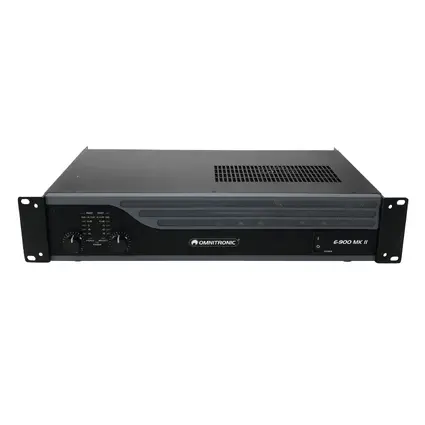

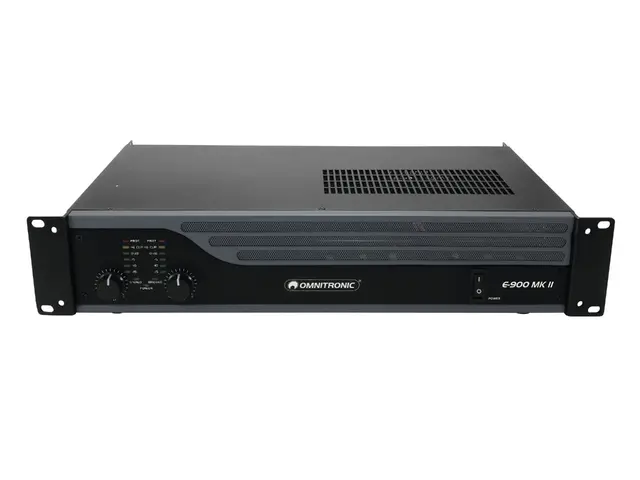

Stereo PA amplifier with limiter, 2 x 450 W/4 ohms
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 511.00 W |
| Output power: | 300 W RMS (8 ohms) |
| Circuitry: | Class AB |
| Housing design: | (19") 48.3 cm rack installation |
| Dimensions: | Width: 48.3 cm Depth: 34.5 cm Height: 8.9 cm |
| Weight: | 10.50 kg |
| Power output sine: | |
| Stereo 4 ohms | 2 x 450 W |
| Stereo 8 ohms | 2 x 300 W |
| 8 ohms bridged | 1 x 900 W |
| Frequency range: | 10-50000 Hz, ±1.5 dB |
| Damping factor: | >350 |
| Distortion factor: | 0.1 % |
| Slew rate: | 45 V/µsec |
| S/N ratio: | >100 dB |
| Channel seperation: | >70 dB/ 1 kHz |
| Input sensitivity: | 0.77 V |
| Input impedance: | 20 kohms |
| Input voltage: | max. 21 dBV/9V |
| Input connectors: | 2 x XLR, 1 x stereo RCA |
| Output connectors: | 2 x Speaker, 1 x Speaker (bridge), 2 x pairs of screw terminals, 2 x XLR (feed-through output) |
| Control elements: | power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector |
| LED indicators: | stereo, bridged (globally), protect, and 7-fold output meter with clip LED (per channel) |
| Protection circuits: | short-circuit, overheat, DC voltage, power on/off transients, softstart |
| Construction: | steel chassis with aluminum front panel |
| Dimensions (DxWxH): | 345 x 482 x 100 mm (19", 2 U) |
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397512106 | 11,40 kg | 52cm x 37,5cm x 15,5cm |
