Stereo PA amplifier with integrated limiter 2 x 300 W/4 ohms

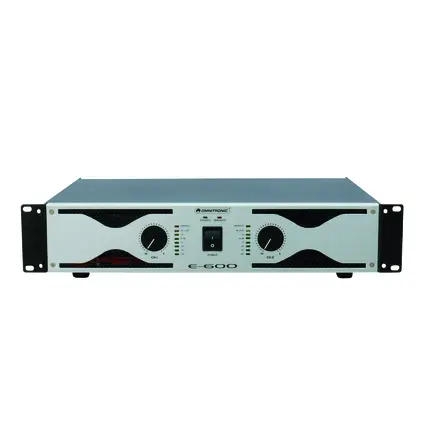

OMNITRONIC E-600 Amplifier

OMNITRONIC

Stereo PA amplifier with integrated limiter 2 x 300 W/4 ohms

OMNITRONIC E-600 Amplifier

Item no. 10451060

Features
  • 2 operating modes can be selected (stereo or bridged) with LED indicators
  • Limiter, switchable
  • Speaker switch-on delay
  • 2 level controls
  • Each channel with LED for activated protective circuit (protect) and 7-fold output meter with clip LED
  • Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
  • Groundlift switch against humming
  • Fan cooling
  • Signal inputs via XLR or RCA jacks, with XLR feed-through output
  • Speaker outputs via lockable Speaker jacks and pairs of screw terminals
  • Additional Speaker plug for 8-ohm bridge operation
  • Rack installation with 2 units
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Power output sine:
Stereo 4 ohms2 x 300 W
Stereo 8 ohms2 x 200 W
8 ohms bridged1 x 600 W
Frequency range:10-50000 Hz, ±1.5 dB
Damping factor:>350
Distortion factor:0.1 %
Slew rate:45 V/µsec
S/N ratio:>100 dB
Channel seperation:>70 dB/ 1 kHz
Input sensitivity:0.77 V
Input impedance:20 kohms
Input voltage:max. 21 dBV/9V
Input connectors:2 x XLR, 1 x stereo RCA
Output connectors:2 x Speaker, 1 x Speaker (bridge), 2 x pairs of screw terminals, 2 x XLR (feed-through output)
Control elements:power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector
LED indicators:stereo, bridged (globally), protect, and 7-fold output meter with clip LED (per channel)
Protection circuits:short-circuit, overheat, DC voltage, power on/off transients, softstart
Construction:steel chassis with aluminum front panel
Dimensions (DxWxH):345 x 482 x 100 mm (19", 2 U)
Weight:10 kg
Power consumption:327.00 W
Packaging units
PU EAN Weight Dimensions
1 4026397367935 10,25 kg 51,5cm x 41,5cm x 14cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
XLR+RCA+TRS
00043902.pdf
1.10 de/en
00061204.pdf 2.00 en/de
00080368.pdf 2.00 fr
00080531.pdf 2.00 fr
Catalog pages
Name Version Language
00067086.pdf 21.00 de
00067845.pdf 21.00 en
Video file
Name Version Language
00057759.flv 0.00 de/en/fr/es
All images
Name Version Language
10451060.zip
