OMNITRONIC L-500, Amplifier 2x250W/4 ohm

Loading product pictures. Please wait...

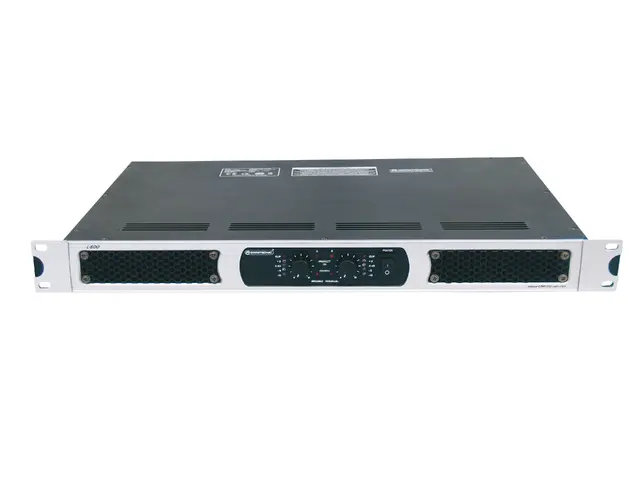

L-500, Amplifier 2x250W/4 ohm

Reliable PA amplifier for starters

Item no. 10450675

  • 2 x 250 W/4 ohms
  • Enormous power with highest brilliance
  • 2 gain controls on the frontpanel
  • All operation modes controllable via LEDs
  • Signal inputs via XLR female or 6.3 mm jack socket
  • Speaker connection via lockable Speaker plugs
  • Ground lift switch against humming
  • Bridged switch for bridging
  • Protection circuits for optimized equipment protection
  • Very rugged housing
  • Rack installation
Power supply:115/230 AC V AC, 50/60 Hz
Power consumption:850 W
Power output (RMS):
Stereo 4 ohms2 x 250 W
Stereo 8 ohms2 x 125 W
8 ohms bridged1 x 500 W
Frequency range:10-50000 Hz
Signal-to-noise ratio:>100 dB
Total harmonic distortion:0.05 %
Damping factor:>150
Slew rate:70 V/µsec.
Crosstalk:>70 dB
Input impedance:20 kohms
Input connectors:2 x XLR, 2 x Jack mounting socket
Output connectors:2 x Speaker
Protection:Overheat, overload, short-circuit, DC, softstart
Cooling:Temperature-controlled fan
Controls:Power switch, input attenuators, Mode switch - Stereo/Parallel/Bridged, Ground Lift
Indicators:Power, Clip, Protect, Parallel, Bridge
Construction:Steel chassis, aluminum front panel
Dimensions:350 x 482 x 52 mm
Rack installation with 1 u
Weight:10 kg
PU EAN Weight Dimensions
1 4026397243079 10.000 kg 50cm x 43.5cm x 10cm
