Technical specifications

Dimensions:	Width: 11.4 cm Depth: 2.4 cm Height: 6 cm
Weight:	0.23 kg
Internal memory:	2 GB flash
Available storage media:	SD (16 MB - 2 GB), SDHC (2-32 GB)
Recording format:	PCM WAV
	with 16/24 bits and 16/22.05/24/32/44.1/48/96 kHz sampling rate
	MP3 wtih 32-192 kbit/s
Playback format:	MP3, WAV, WMA, FLAC, AAC, OGG
Speakers:	2 x 100 mW/16 ohms
Inputs:	microphone/line 3.5 mm stereo jack
Outputs:	headphones/line 3.5 mm stereo jack
USB port:	type mini B, high-speed 2.0
Power supply:	2 x 1.5 V battery, type AA
	or 5 V DC via USB port or optional power unit
Battery life:	9 hours recording or 10 hours playback
Dimensions (L x W x H):	114 x 24 x 60 mm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397423419	0,28 kg	14,5cm x 14cm x 5cm
20	4026397425109	6,05 kg	31,5cm x 27cm x 31cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
10360617-Images-.zip

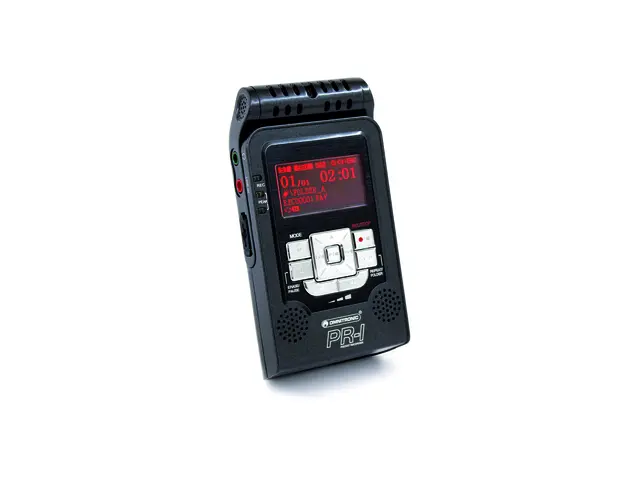

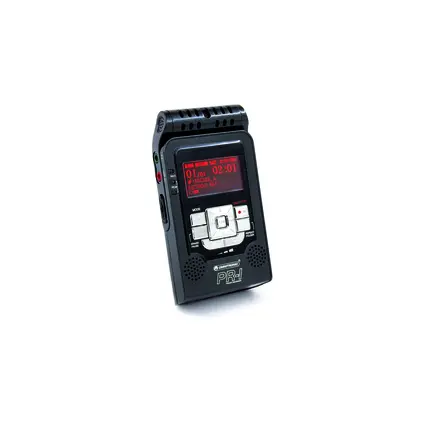

OMNITRONIC PR-1 Pocket recorder

The article is no longer in our assortment.

No. 10360617

Portable audio recorder with USB connection and SD card slot

Portable audio recorder in pocket format
Recording of MP3 and WAV files
Plays MP3, WAV, WMA, FLAC, AAC, OGG
Integrated 2 GB flash memory for more then 56 hours stereo recording/music playback
Supports external SD(HC) cards up to 32 GB
High-speed USB 2.0 support for Mac and PC
2 built-in 16 mm speakers
2 high-sensitivity condenser microphones for optimum recording quality
Selectable mono or stereo microphone recording
Adjustable recording level with peak LED indicators
Adjustable voice-activated recording
Automatic gain control for perfect microphone recordings
ID3 indication and convenient file playback functions
Loop play, repeat functions, intro play, playlists
7 preset equalizer settings
3D sound effects
Microphone input: 3.5 mm stereo jack
Line input: 3.5 mm stereo jack
Headphone output/line output: 3.5 mm stereo jack
Backlit LCD
Keylock
Tripod thread
Delivery includes stereo earphones, USB connection cable, adapter cable 3.5 mm stereo jack to 2 x RCA
Power supply via 2 included 1.5 V batteries for up to 10 hours operating time or optional power unit
