Technical specifications

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	10.00 W
Dimensions:	Width: 48.3 cm Depth: 15.2 cm Height: 4.45 cm
Weight:	2.15 kg
Inputs:	XLR or balanced 6.3 mm jack
Nominal Operating Level:	-20 dB to +4 dB
Max. input level:	+16 dB at +4 dB nominal level, +2 dB at -20 dB nominal level
Input impedance:	40 ohms balanced, 20 ohms unbalanced
Outputs:	XLR or balanced 6.3 mm jack
Max. output level:	+16 dB at +4 dB nominal level, +2 dB at -20 dB nominal level
Output impedance:	66 ohms balanced, 33 ohms unbalanced
Frequency range:	20-20000 Hz
Distortion:	0.06 %
S/N-ratio:	98 dB, 20-20000 Hz
Crosstalk:	-95 dB, 20-20000 Hz
MIDI-Interface:	5-pin DIN-socket IN/OUT/THRU
Converters:	24-bit Sigma-Delta, 64/128-times oversampling
Sampling rate:	48 kHz
Dimensions (W x D x H):	482 x 152 x 45 mm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397177787	2,85 kg	52cm x 25cm x 8,5cm
10	4026397179330	30,20 kg	53cm x 53cm x 44cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Illustration

Name	Version	Language

All images

Name	Version	Language
10356510-Images-.zip

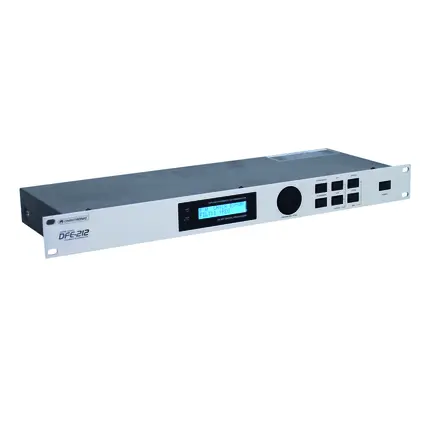

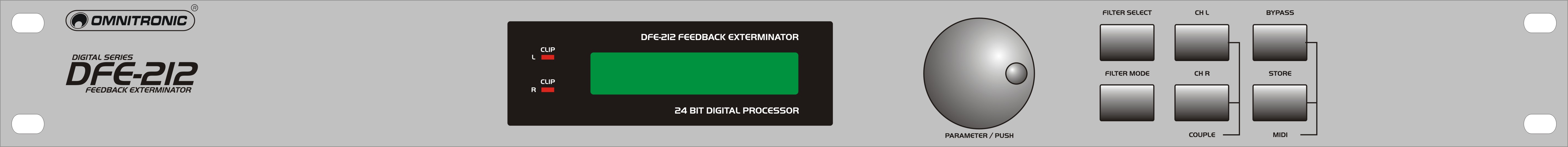

OMNITRONIC DFE-212 Feedback exterminator

The article is no longer in our assortment.

No. 10356510

Feedback-free weekends guaranteed

The feedback exterminator avoids quickly and effectively any occurring feedbacks in your amplifying system
Connection via balanced XLR sockets or jacks
12 automatically controlled feedback frequencies per channel
3 different modes: Single, Auto, Manual
MIDI-control possible
