Digital stereo multiband compressor/leveller incl. software

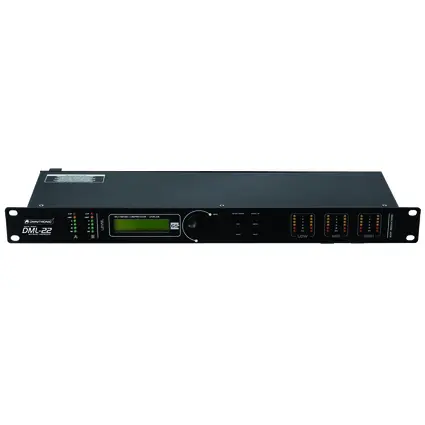

OMNITRONIC DML-22 Compressor/limiter

OMNITRONIC

Digital stereo multiband compressor/leveller incl. software

OMNITRONIC DML-22 Compressor/limiter

Item no. 10356390

Features

Digital stereo multiband compressor/leveller incl. software

  • Digital stereo multiband compressor/leveller incl. software
  • Splits the audio signal into 3 frequency bands (lows, mids, highs) for effective and almost inaudible compression
  • Attack, release, hold, threshold, ratio, make-up gain per frequency band
  • Crossover frequencies adjustable
  • Peak limiter with threshold and release
  • 48 kHz sampling rate
  • Increases the loudness of your sound without any distortion
  • Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
  • Up to 30 user presets storable in the device via software
  • 5 menu languages selectable (German, English, French, Spanish, Dutch)
  • Alphanumeric LCD screen with 2 lines of 16 characters each
  • Input sensitivity digitally adjustable
  • Inputs with 4-digit LED level meter as well as clip and limit LED indicator
  • 6-digit LED gain reduction meter per frequency band
  • Inputs and outputs via balanced XLR connectors
  • Lock function for protecting the program settings
  • Rack installation, 1 U
  • Windows XP, Vista, 7 and Mac OS X 10.5.8 and better
Technical specifications
Frequency range:20 - 20000 Hz
Width:48,3 cm
Height:4,45 cm
Depth:12,8 cm
Weight:1,75 kg
Power supply:6 V, 500 mA
Inputs:2 x XLR, electronically balanced
Maximum input level:+22 dBu
Input impedance:10 kohms
Outputs:2 x XLR, balanced
Output impedance:50 ohms
Output gain range:±12 dB
Maximum output level:+9 dBu
Dynamic range D/A converter:114 dBA
Dynamic range A/D converter:110 dBA
Sampling frequency:48/65 kHz
Distortion:0.005 %
USB port:type B
Dimensions (WxHxD):482 x 44 x 128 mm
Packaging units
PU EAN Weight Dimensions
1 4026397414219 2,25 kg 54cm x 25cm x 7,5cm
8 4026397414226 19,55 kg 56cm x 52cm x 33cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
10356390-Manual-72733-1.100-de_en.pdf (1 MB) 1.100 de_en
Catalog pages
All images
Name Version Language
10356390-Images.zip
