3-band frequency isolator with kill cut and bypass for DJs

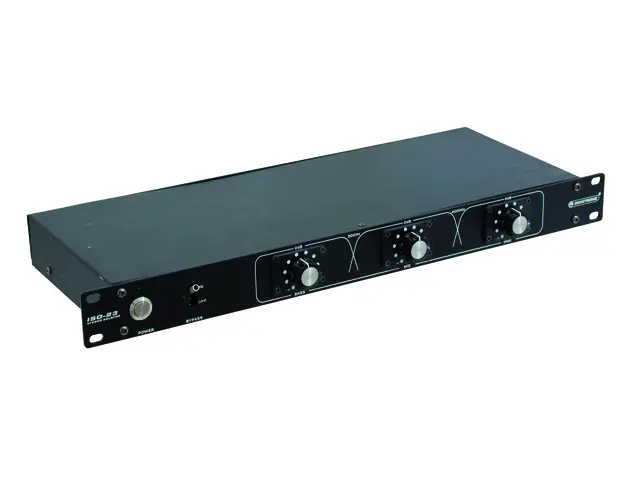

OMNITRONIC ISO-23 DJ Isolator

1 U

The article is no longer in our assortment.

No. 10355900

Features

3-band frequency isolator with kill cut and bypass for DJs

3-band frequency isolator with dedicated boost and kill cut for DJs
Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
Vintage ALPS potentiometers (Blue Velvet RK27)
High-grade components ensure long life and excellent sound quality
1-channel stereo version
Control range: kill to +6 dB
Lows: 20 Hz - 300 Hz
Mids: 300 Hz - 4 kHz
Highs: 4 kHz - 20 kHz
Bypass switch
Stereo RCA connectors
Rack installation, 1 U
(19") 48.3 cm rack installation 1 U

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	10.00 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48.3 cm Depth: 20 cm Height: 4.45 cm
Weight:	2.88 kg
Connectors:	stereo RCA
Maximum input level:	+22 dBu
Maximum ouput level:	+22 dBu
Control range:	-~ to +6 dB
Lows:	20 Hz to 300 Hz
Mids:	300 Hz to 4 kHz
Highs:	4 kHz to 20 kHz

Packaging units

PU	EAN	Weight	Dimensions
1	4026397423426	3,20 kg	49,5cm x 25cm x 85cm
8	4026397430554	25,15 kg	54,5cm x 53cm x 36cm
