High-quality stereo crossover

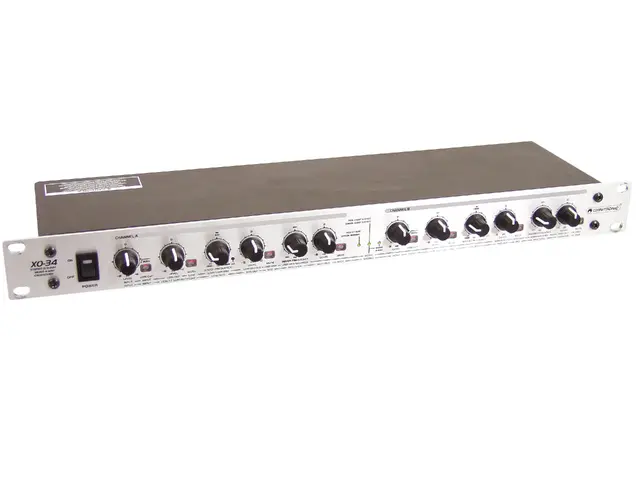

OMNITRONIC XO-34 Active crossover

OMNITRONIC

High-quality stereo crossover

OMNITRONIC XO-34 Active crossover

Item no. 10355635

Features

High-quality stereo crossover

  • 2-way/3-way stereo or 4-way mono operation possible
  • 24 dB octave slope

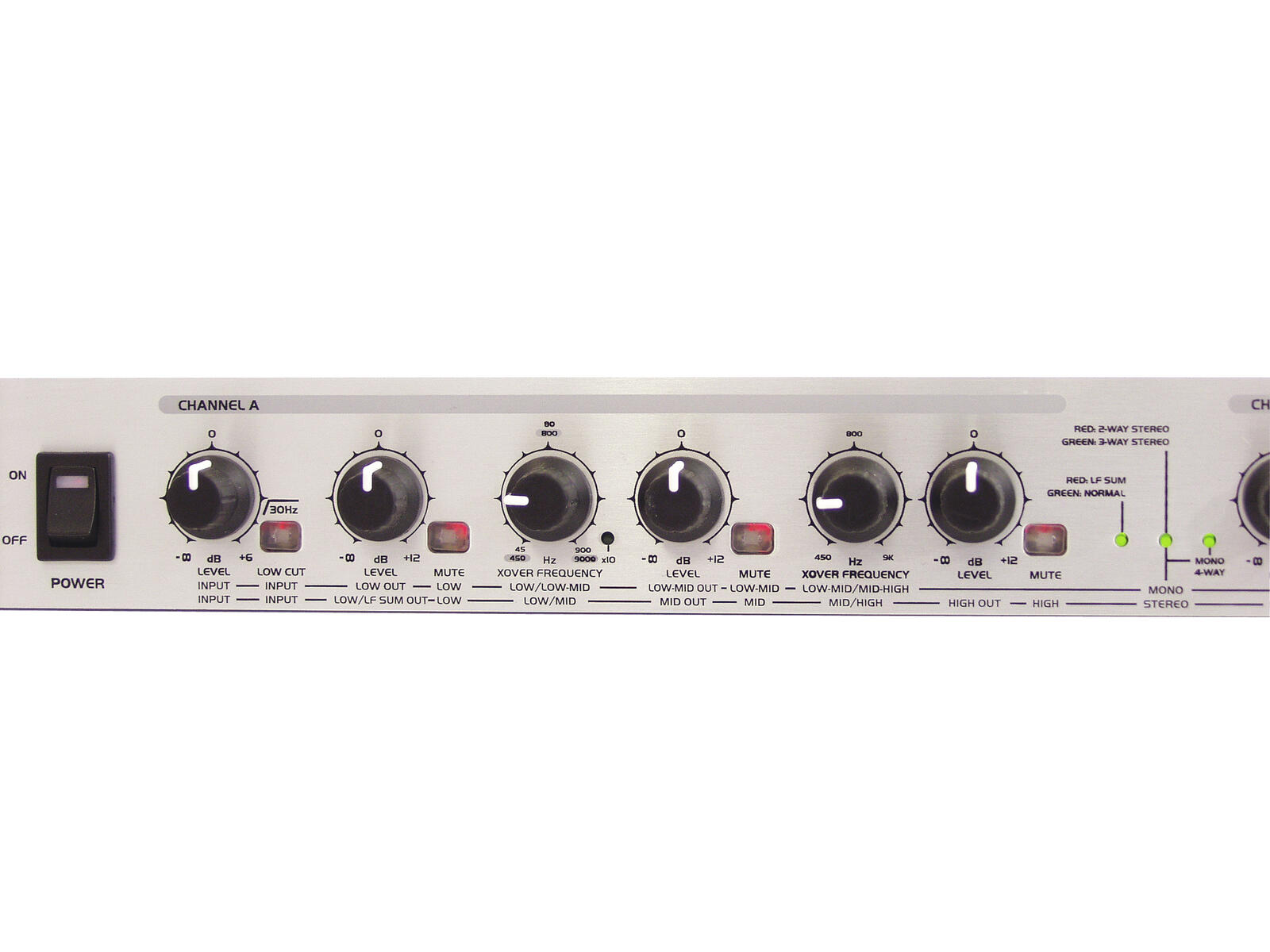

  • Crossover frequency control on the front panel
  • Frequency range of crossover frequency 450 Hz - 9 kHz switchable to 45 - 900 Hz
  • Individual output level controls for all bands
  • Individual ouptut mutes for easy band adjustment
  • Phase invert control
  • Low Cut switch
  • XLR in and outputs
  • Illuminated switches for secure operation in dark environments
  • Rack installation
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:10,00 W
Width:48,3 cm
Height:4,45 cm
Depth:14,7 cm
Weight:2,25 kg
Slope:24 dB / octave
Operation modes:2/3-way stereo or 4-way mono
Input:Mono/stereo
Input impedance:10/20 kohms (unb./bal.)
Output:Mono/stereo
Output impedance:300/150 kohms (unb./bal.)
In/Out connectors:XLR
S/N ratio:>100 dB
Xover frequency range:45-9000 Hz
THD: 0.05%
Crosstalk:>80 dB, -3 dB
Input gain:-~ to +6 dB
Output gain:-~ to +12 dB
Low Cut:30 Hz, -3 dB
Dimensions (W x D x H):483 x 147 x 46 mm
Packaging units
PU EAN Weight Dimensions
1 4026397233308 2,70 kg 54cm x 20cm x 8cm
6 4026397271911 16,75 kg 56cm x 42cm x 26cm
8 4026397242362
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
10355635-Manual-15890-1.000-de_en_fr.pdf (21 MB) 1.000 de_en_fr
Service document
Name Version Language
10355635-Service-31138-1.000-de.pdf (166 KB) 1.000 de
All images
Name Version Language
10355635-Images.zip
