2 x 31-band limiting equalizer

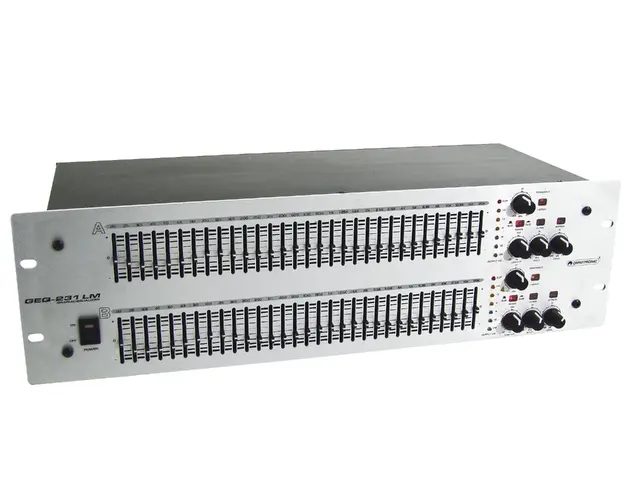

OMNITRONIC GEQ-231 LM Equalizer 2x31-band

mpn10355540-omnitronic-geq-231-lm-equalizer-2x31-band-MainBild

mpn10355540-omnitronic-geq-231-lm-equalizer-2x31-band-Bild-1

OMNITRONIC

2 x 31-band limiting equalizer

OMNITRONIC GEQ-231 LM Equalizer 2x31-band

The article is no longer in our assortment.

Item no. 10355540

Features

2 x 31-band limiting equalizer

2-channel version, 2 x 31 frequency controls with 1/3 octave steps
Long sliding frequency controls with center click
Limiter adjustable from -40 to 22 dBu
EQ gain switchable ±6 dB to ±15 dB
Hi Cut (4-30 kHz) and Low Cut (10-300 Hz), switchable
Separate level control per channel
Bypass switch allows instant comparison of the original sound with the equalized sound
7-fold LED level meter with clip indicator
Inputs and outputs via 6.3 mm jack sockets (1/4"), XLR sockets and screw terminals
Groundlift switch
Rack installation, 3 U

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	10.00 W
Width:	48.3 cm
Height:	13.35 cm
Depth:	17.5 cm
Weight:	5 kg
Input impedance:	10/20 kohms (unb./bal.)
Output impedance:	300/150 kohms (unb./bal.)
In/Out connectors:	XLR, jack, screw terminals
S/N-ratio:	>95 dB
Crosstalk:	>90 dB
Distortion:	<0.01 %
Frequency range:	20-20000 Hz, ±0.5 dB
Output level:	- ~ to +6 dB
Control range:	±6 dB or ±12 dB
Frequencies:	2 x 20/25/31.5/40/50/63/80/100/125/160/200/250/315/400/500/ 630/800 Hz, 1/1.25/1.6/2/2.5/3.15/4/5/6.3/8/10/12.5/16/20 kHz
Hi Cut:	4-30 kHz
Low Cut:	30-300 Hz
Limiter:	-40 to 22 dBu
Dimensions (W x D x H):	483 x 175 x 133 mm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397233230	5,65 kg	55cm x 25cm x 16cm
4	4026397238051
6	4026397272024	35,40 kg	55cm x 52cm x 51cm

Support

Spare parts

Loading spareparts. Please wait...

Downloads

User manual

Name	Version	Language
10355540-Manual-15885-1.000-de_en_fr.pdf (10 MB)	1.000	de_en_fr

Service document

Name	Version	Language
10355540-Service-30689-1.000-de.pdf (450 KB)	1.000	de

All images

Name	Version	Language
10355540-Images.zip

Please wait while the page is loading...

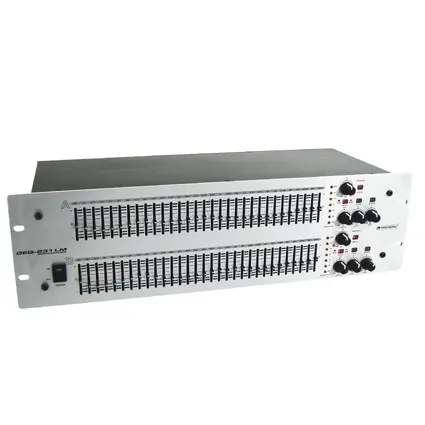

OMNITRONIC GEQ-231 LM Equalizer 2x31-band
