2 x 15-band equalizer, black

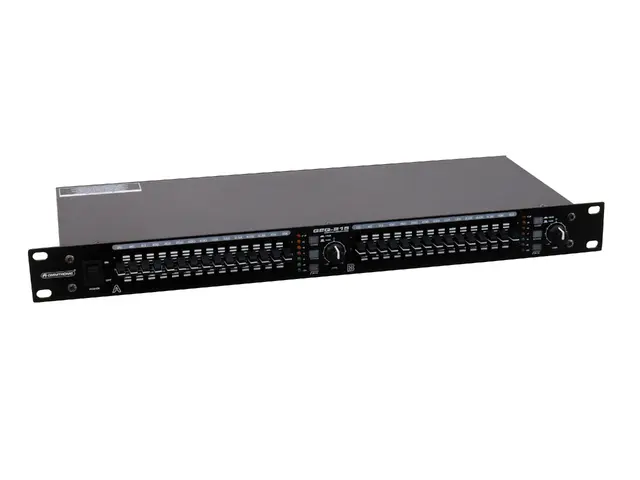

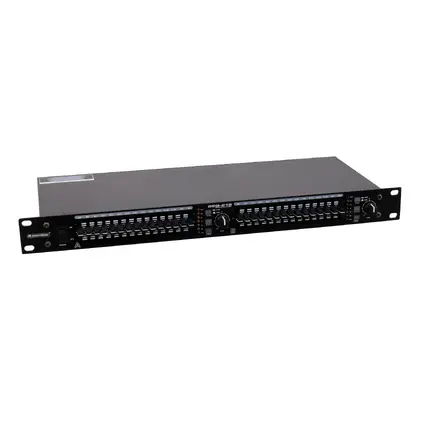

OMNITRONIC GEQ-215B Equalizer 2x15-band

OMNITRONIC

2 x 15-band equalizer, black

OMNITRONIC GEQ-215B Equalizer 2x15-band

Item no. 10355521

Features
  • 2-channel version, 2 x 15 frequency controls with 2/3 octave steps
  • Short sliding frequency controls with center click
  • EQ gain switchable ±6 dB to ±15 dB
  • Switchable low cut filter
  • Separate level control per channel
  • Bypass switch allows instant comparison of the original sound with the equalized sound
  • 7-fold LED level meter with clip indicator

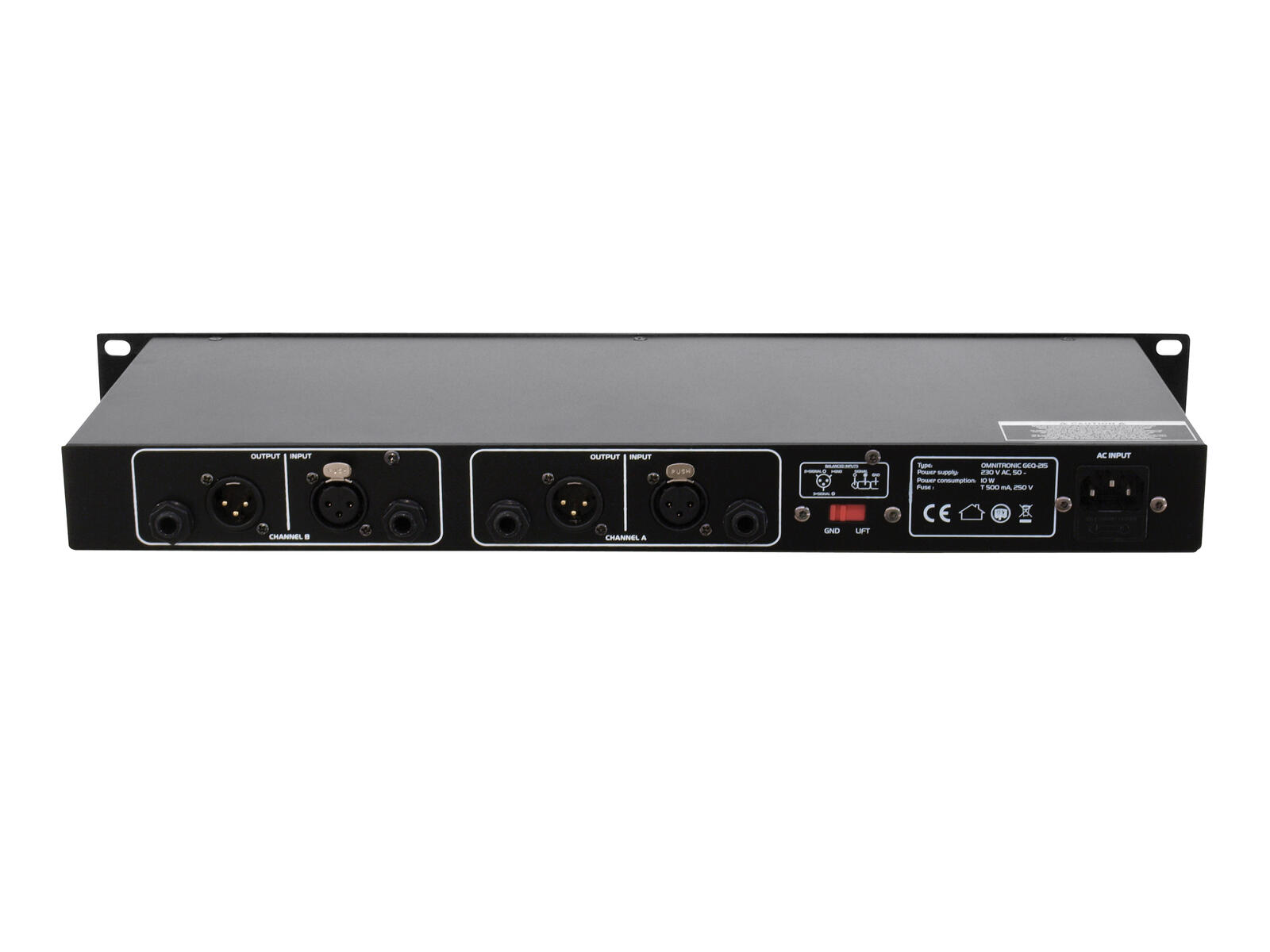

  • Inputs and outputs via 6.3 mm jack sockets (1/4") and XLR sockets
  • Groundlift switch
  • Rack installation, 1 U
Technical specifications
Power supply:230 V AC, 50 Hz
Input impedance:10/20 kohms (unb./bal.)
Output impedance:300/150 kohms (unb./bal.)
In/Out connectors:XLR, jack
S/N ratio:>95 dB
Crosstalk:>90 dB
Distortion:<0.01 %
Frequency range:20-20000 Hz, ±0.5 dB
Output level:- ~ to +6 dB
Control range:±6 dB or ±15 dB
Frequencies:2 x 25/40/63/100/160/250/400/630 Hz, 1/1.6/2.5/4/6.3/10/16 kHz
Low Cut:30 Hz, -3 dB
Dimensions (W x D x H):483 x 175 x 44 mm
Weight:3 kg
Power consumption:10.00 W
Height:4,45 cm
Depths:17,5 cm
Width:48,3 cm
Packaging units
PU EAN Weight Dimensions
1 4026397360370 3,15 kg 55cm x 25cm x 8cm
6 4026397360387 19,70 kg 55cm x 52cm x 27cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00015881.pdf 1.00 de/en/fr
Catalog pages
Name Version Language
00067032.pdf 21.00 de
00067791.pdf 21.00 en
