2 x 15-band equalizer

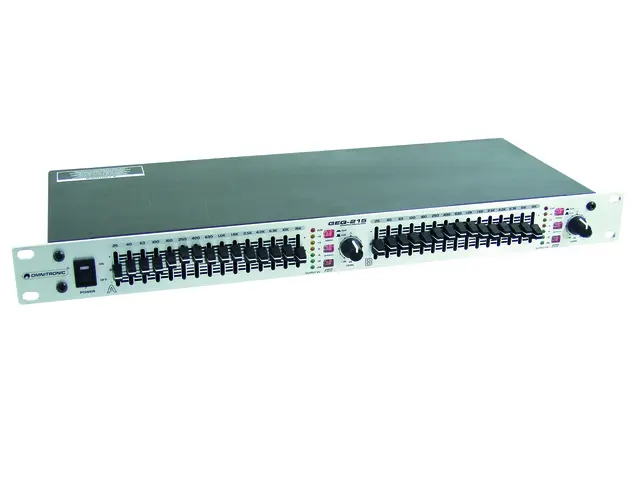

OMNITRONIC GEQ-215 Equalizer 2x15-band

OMNITRONIC

2 x 15-band equalizer

OMNITRONIC GEQ-215 Equalizer 2x15-band

Item no. 10355520

Features

2 x 15-band equalizer

  • 2-channel version, 2 x 15 frequency controls with 2/3 octave steps
  • Short sliding frequency controls with center click
  • EQ gain switchable ±6 dB to ±15 dB
  • Switchable low cut filter
  • Separate level control per channel
  • Bypass switch allows instant comparison of the original sound with the equalized sound
  • 7-fold LED level meter with clip indicator
  • Inputs and outputs via 6.3 mm jack sockets (1/4") and XLR sockets
  • Groundlift switch
  • Rack installation, 1 U
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:10.00 W
Width:48.3 cm
Height:4.45 cm
Depth:17.5 cm
Weight:2.80 kg
Input impedance:10/20 kohms (unb./bal.)
Output impedance:300/150 kohms (unb./bal.)
In/Out connectors:XLR, jack
S/N ratio:>95 dB
Crosstalk:>90 dB
Distortion:<0.01 %
Frequency range:20-20000 Hz, ±0.5 dB
Output level:- ~ to +6 dB
Control range:±6 dB or ±15 dB
Frequencies:2 x 25/40/63/100/160/250/400/630 Hz, 1/1.6/2.5/4/6.3/10/16 kHz
Low Cut:30 Hz, -3 dB
Dimensions (W x D x H):483 x 175 x 44 mm
Packaging units
PU EAN Weight Dimensions
1 4026397360356 3,25 kg 51cm x 25cm x 8cm
6 4026397360363 19,80 kg 53cm x 53cm x 28,5cm
