Dual DI box/splitter
OMNITRONIC LH-070 Active dual DI box XLR

OMNITRONIC

Dual DI box/splitter

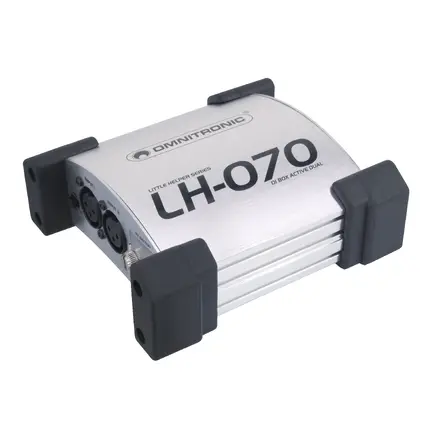

OMNITRONIC LH-070 Active dual DI box XLR

Item no. 10355070

Features

Dual DI box/splitter

  • Active 2-channel DI box with split mode
  • 2 high-impedance XLR signal inputs
  • 2 low-impedance XLR outputs
  • Switchable to split mode (input 1 routes the signal to both outputs)
  • Input sensitivity switchable: +20 dB, 0 dB, -30 dB
  • Ground-lift switch eliminates signal interference and ground loop problems
  • Phase can be switched
  • Hi-cut 10 kHz switchable
  • Modern convex housing design with rubber corners for safe positioning
  • Stackable
  • Cables can be routed under the housing
  • Operation with 9 V battery (included)
  • Battery: 1 x battery 9.0 V E block 6LR61 alkaline manganese (provided)
Technical specifications
Battery:1 x battery 9.0 V E block 6LR61 alkaline manganese (provided)
Frequency range:10 - 30000 Hz
Width:15 cm
Height:6 cm
Depth:13 cm
Weight:0,55 kg
Power supply:9 V battery
Current consumption:approx. 65 mA
Battery life:6-8 hours
Input impedance:470 kohms
Output impedance:600 ohms
Maximum output level:6 dBu
Dynamic range:>100 dB
Hi cut:10 kHz
Input connectors:2 x XLR, bal.
Output connectors:2 x XLR, bal.
THD:0.5 %
Packaging units
PU EAN Weight Dimensions
1 4026397194937 0,75 kg 23,5cm x 16cm x 9,5cm
12 4026397194944 10,45 kg 49cm x 49cm x 21cm
