Universal 12-channel live mixer with 2 x 300 W/4 ohms

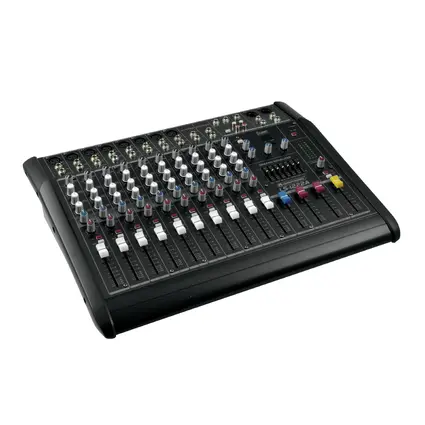

OMNITRONIC LS-1222A Powered Live Mixer


Universal 12-channel live mixer with 2 x 300 W/4 ohms

OMNITRONIC LS-1222A Powered Live Mixer

Stock for approx. 12 wk(s)
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 10060200

  • Low noise 12-channel mic/line mixer
  • 8 mono inputs with XLR sockets, +48V phantom power and balanced line inputs
  • Insert or Direct Out for every mono channel
  • 2 stereo inputs via balanced jacks
  • Echo effect
  • 4-band EQ for all inputs
  • Peak LED per input
  • 2 Aux Send (1 pre, 1 post) per channel for controlling the effects and for monitoring
  • 2 mono Aux Return with balanced 6.3 mm jack sockets
  • Separate Main Mix, Group and headphones outputs
  • Tape inputs and outputs
  • 7-band equalizer for fine-tuned sound
  • Precise 10-digit LED meter
  • Output power 2 x 300 W/4 ohms
  • Master Equalizer: 1 x Graphic equalizer 7-band Stereo
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
8 monoXLR or balanced 6.3 mm jacks
8 inserts6.3 mm jacks
2 stereobalanced 6.3 mm jacks
1 Aux Return:balanced 6.3 mm jack
Tape InRCA
1 Main Out:XLR or balanced 6.3 mm jacks
1 Headphonebalanced 6.3 mm jack
1 Aux Send:balanced 6.3 mm jack
8 Direct Out6.3 mm jacks
Tape OutRCA
Frequency range:
Microphone:10-60000 Hz, ±3 dB
Mono:10-60000 Hz, ±3 dB
Stereo:10-55000 Hz, ±3 dB
Distortion:0.01 %
S/N ratio:112 dB
Tone control/channel:
Treble:±15 dB at 12 kHz
Middle:±15 dB at 2.5 kHz
Bass:±15 dB at 80 Hz
Power output sine:
Stereo 4 ohms2 x 300 W
Dimensions (W x D x H):550 x 390 x 125 mm
Weight:13 kg
Power consumption:800.00 W
Power/channel (4 Ohm):300
Packaging units
PU EAN Weight Dimensions
1 4026397206562 14,30 kg 59cm x 47,5cm x 24,5cm
Loading accessories. Please wait...
Spare parts
Loading spareparts. Please wait...
User manual
Name Version Language
00016918.pdf 1.10 de/en
00077865.pdf 2.00 en/de
Name Version Language
00008813.tif 0.00 de
Catalog pages
Name Version Language
00097366.pdf 25.00 de
00097833.pdf 25.00 en
00114997.pdf 27.00 de
00115434.pdf 27.00 en
Data sheet
Name Version Language
00008814.pdf 1.00 de
00008815.pdf 1.00 en
Service document
Name Version Language
Circuit diagram00008812.pdf 1.00 de
