Universal 12-channel live mixer

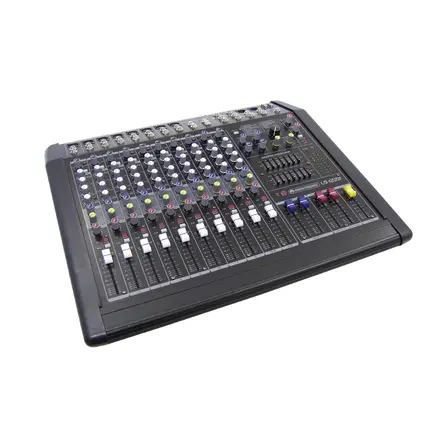

OMNITRONIC LS-1222 Live mixer

OMNITRONIC

Universal 12-channel live mixer

OMNITRONIC LS-1222 Live mixer

Item no. 10060175

Features

Universal 12-channel live mixer

  • Low noise 12-channel Mic/Line-mixer
  • 8 mono inputs with XLR sockets, +48V Phantom-power and balanced line inputs
  • Insert or Direct Out for every mono channel
  • 2 stereo inputs via balanced jacks
  • Integrated multi effect unit
  • 3-band EQ with semiparametric mids for the mono inputs
  • 4-band EQ for the stereo inputs
  • Peak-LED per input
  • 2 Aux-Send (1 pre, 1 post) per channel for controlling the effects and for monitoring
  • 2 mono Aux-Return with balanced 6.3 mm jack sockets
  • Separate Master, Group, Control Room and headphones outputs
  • Tape inputs and outputs
  • 7-band-equalizer for fine-tuned sound
  • Precise 10-LED meter
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:40,00 W
Width:55 cm
Height:13 cm
Depth:49 cm
Weight:9,5 kg
Inputs:
8 monoXLR or balanced 6.3 mm jack
8 Inserts6.3 mm jacks
2 stereobalanced 6.3 mm jacks
1 Aux-Returnbalanced 6.3 mm jacks
1 Tape InRCA
Outputs:
2 Main Out:XLR and balanced 6.3 mm jacks
1 Control Roombalanced 6.3 mm jacks
2 Aux Send:balanced 6.3 mm jacks
8 Direct Out6.3 mm jacks
1 Tape OutRCA
Headphones6.3 mm jacks
Frequency range:
Microphone:10-60000 Hz, ±3 dB
Mono:10-60000 Hz, ±3 dB
Stereo:10-55000 Hz, ±3 dB
Distortion:0.01 %
S/N-ratio:112 dB
Tone control/mono channel:
High:±15 dB at 12 kHz
Mid:±15 dB at 250 Hz - 6 kHz
Low:±15 dB at 80 Hz
Tone control/stereo channel:
High:±15 dB at 12 kHz
Mid:±15 dB at 2.5 kHz
Low:±15 dB at 500 Hz
Bass:±15 dB bei 80 Hz
7-Band Graphic Equalizer:±12 dB at 63 Hz, 150 Hz, 400 Hz, 1 kHz, 2,5 kHz, 6,4 kHz and 15 kHz
Packaging units
PU EAN Weight Dimensions
1 4026397183320 12,00 kg 65cm x 59cm x 22cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
10060175-Manual-17457-1.100-de_en.pdf (1 MB) 1.100 de_en
