8-channel powered live mixer with 2 x 200 W/4 ohms

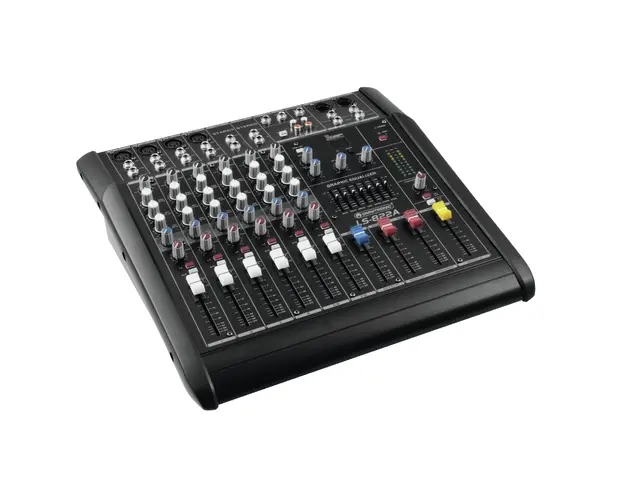

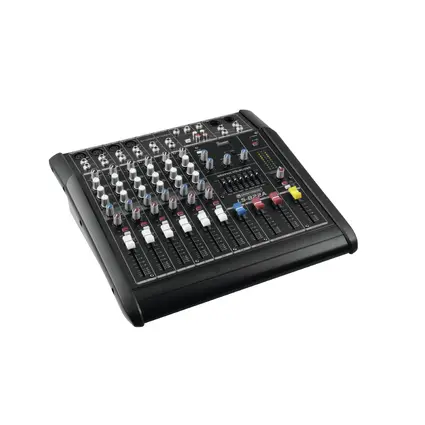

OMNITRONIC LS-822A Powered Live Mixer

OMNITRONIC

8-channel powered live mixer with 2 x 200 W/4 ohms

OMNITRONIC LS-822A Powered Live Mixer

Stock for approx. 12 wk(s)
329,00
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 10060100

Features
  • Low-noise 8-channel Mic/Line-mixer
  • 4 mono inputs with XLR sockets, +48V phantom power and balanced line inputs
  • Insert or Direct Out for every mono channel
  • 2 stereo inputs via balanced jacks
  • Integrated effect unit with 9-level echo
  • 3-band EQ for all inputs
  • Peak LED per mono input
  • Aux send per channel for controlling external effectors
  • Aux return with balanced 6.3 mm jack socket
  • Separate Main Mix, Group and headphones outputs
  • Tape inputs and outputs
  • 7-band equalizer for fine-tuned sound
  • Precise 10-digit LED meter
  • Output power 2 x 200 W/4 ohms
  • Master Equalizer: 1 x Graphic equalizer 7-band Stereo
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Inputs:
4 monoXLR or balanced 6.3 mm jacks
4 inserts6.3 mm jacks
2 stereobalanced 6.3 mm jacks
1 Aux-Returnbalanced 6.3 mm jack
Tape InRCA
Outputs:
1 Main Out:XLR or balanced 6.3 mm jacks
1 Headphonebalanced 6.3 mm jack
1 Aux Send:balanced 6.3 mm jack
4 Direct Out6.3 mm jacks
Tape OutRCA
Frequency range:
Microphone:10-60000 Hz, ±3 dB
Mono:10-60000 Hz, ±3 dB
Stereo:10-55000 Hz, ±3 dB
Distortion:0.01 %
S/N-ratio:112 dB
Tone control/channel:
Treble:±15 dB at 12 kHz
Middle:±15 dB at 2.5 kHz
Bass:±15 dB at 80 Hz
Power output sine:
Stereo 4 ohms2 x 200 W
Dimensions (W x D x H):390 x 390 x 150 mm
Weight:10 kg
Power consumption:800.00 W
Power/channel (4 Ohm):200
Packaging units
PU EAN Weight Dimensions
1 4026397183313 11,20 kg 48cm x 47cm x 23,5cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00037982.pdf 1.10 de/en
00077865.pdf 2.00 de/en
Catalog pages
Name Version Language
00097366.pdf 25.00 de
00097833.pdf 25.00 en
00114997.pdf 27.00 de
00115434.pdf 27.00 en
Service document
Name Version Language
Circuit diagram00008812.pdf 1.00 de
All images
Name Version Language
10060100.zip
