Universal powered stage mixer

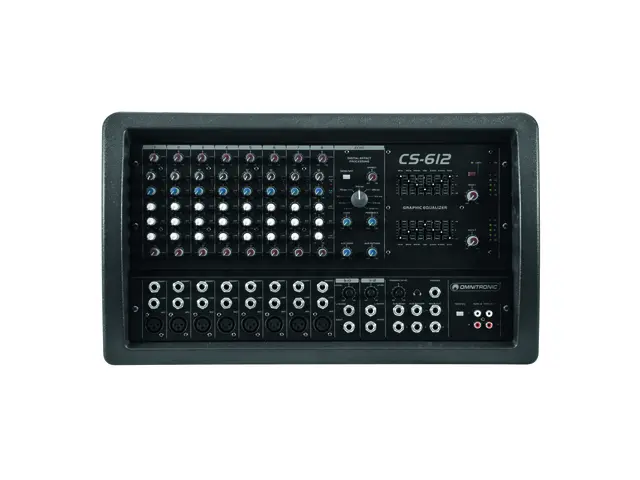

OMNITRONIC CS-612 Powered mixer

OMNITRONIC

Universal powered stage mixer

OMNITRONIC CS-612 Powered mixer

Item no. 10050125

Features
  • Low-noise 12-channel mic/line mixer and amplifier with 2 x 300 W/4 ohms output power
  • Digital reverb adjustable in 9 steps
  • 8 mono input channels (XLR and 6.3 mm jack) with gain control, 3-band EQ, pan and effect control
  • Insert or direct out (6.3 mm jack) per mono channel
  • 2 stereo input channels (6.3 mm jack)
  • Aux send per channel for controlling external effectors
  • Adjustable effect way for controlling external effect units (aux send/return)
  • Tape input and output, switchable (stereo RCA)
  • Adjustable headphones output (6.3 mm jack)
  • Stereo master output (6.3 mm jack)
  • +48V phantom power, can be switched centrally
  • 2 x 7-band graphic equalizer for fine-tuned sound
  • Precise 5-fold stereo LED meter
  • 2 Speaker outputs
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Inputs:
8 monoXLR or balanced 6.3 mm jacks
8 insertsbalanced 6.3 mm jacks
2 stereobalanced 6.3 mm jacks
2 aux returnbalanced 6.3 mm jacks
1 tapeRCA
Outputs:
2 masterSpeaker sockets, balanced 6.3 mm jacks
1 headphonesbalanced 6.3 mm jack
2 aux sendbalanced 6.3 mm jacks
8 insertbalanced 6.3 mm jacks
1 tapeRCA
Frequency range:
Microphone:10-60000 Hz, ±3 dB
Mono:10-60000 Hz, ±3 dB
Stereo:10-55000 Hz, ±3 dB
Distortion:0.01 %
S/N ratio:112 dB
Tone control/channel:
Treble:±15 dB at 12 kHz
Middle:±15 dB at 2.5 kHz
Bass:±15 dB at 80 Hz
Power output sine:
Stereo 4 ohms2 x 300 W
Dimensions (W x D x H):525 x 305 x 320 mm
Weight:14 kg
Power consumption:1000.00 W
Packaging units
PU EAN Weight Dimensions
1 4026397183290 17,00 kg 42cm x 41cm x 64cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00008066.pdf 1.10 de/en
Service document
Name Version Language
00008809.pdf 1.00 de
All images
Name Version Language
10050125.zip
