Universal stage power mixer with 8 channels, 2 x 200 W/4 ohms

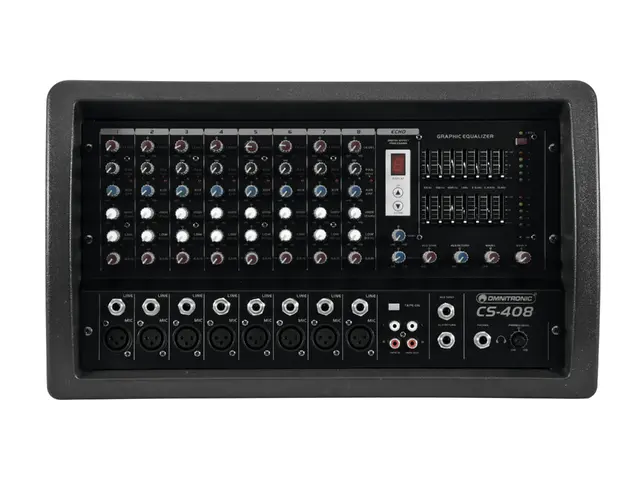

OMNITRONIC CS-408 Powered Mixer

mpn10050050-omnitronic-cs-408-powered-mixer-MainBild

mpn10050050-omnitronic-cs-408-powered-mixer-Bild-1

svg

OMNITRONIC

Universal stage power mixer with 8 channels, 2 x 200 W/4 ohms

OMNITRONIC CS-408 Powered Mixer

The article is no longer in our assortment.

Item no. 10050050

Features

Universal stage power mixer with 8 channels, 2 x 200 W/4 ohms

Low-noise 8-channel mic/line mixer and amplifier with 2 x 200 W/4 ohms output power
Adjustable digital reverb
8 mono input channels (XLR and 6.3 mm jack) with gain control, 2-band EQ, pan and effect control
Insert or direct out (6.3 mm jack) per input channel
Aux send per channel for controlling external effectors
Adjustable effect way for controlling external effect units (aux send/return)
Tape input and output, switchable (stereo RCA)
Adjustable headphones output (6.3 mm jack)
+48V phantom power, can be switched centrally
2 x 7-band graphic equalizer for fine-tuned sound
Precise 5-fold stereo LED meter
2 Speaker outputs

Technical specifications

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	800,00 W
Output power:	max. 400 W
	200 W RMS (4 ohms)
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency range:	Microphone 10 - 60000 Hz; Mono 10 - 60000 Hz; Stereo 10 - 55000 Hz
Master equalizer:	2 x Graphic equalizer 7-band
S/N ratio:	>112 dB
Circuitry:	Class AB
Distortion:	<0,01 %
Width:	44 cm
Height:	27,5 cm
Depth:	26 cm
Weight:	9,20 kg
Inputs:
8 mono	XLR or balanced 6.3 mm jacks
1 Aux Return:	balanced 6.3 mm jack
1 Tape In	stereo RCA
Outputs:
1 Main Out:	Speaker sockets
1 Headphones	balanced 6.3 mm jack
1 Aux Send:	balanced 6.3 mm jack
1 Tape Out	RCA
Tone control/channel:
Treble:	±15 dB at 12 kHz
Middle:	±15 dB at 2.5 kHz
Bass:	±15 dB at 80 Hz
Power output sine:
Stereo 4 ohms	2 x 200 W

Packaging units

PU	EAN	Weight	Dimensions
1	4026397183283	11,10 kg	35cm x 35cm x 54cm

Accessories

Loading accessories. Please wait...

Support

Spare parts

Loading spareparts. Please wait...

Downloads

User manual

Name	Version	Language
10050050-Manual-23764-1.200-de_en.pdf (2 MB)	1.200	de_en

Catalog pages

Name	Version	Language
10050050-Page-97832-25.00-en.pdf (300 KB)	25.00	en
10050050-Page-97355-25.00-de.pdf (301 KB)	25.00	de
10050050-Page-115434-27.00-en.pdf (379 KB)	27.00	en
10050050-Page-114997-27.00-de.pdf (378 KB)	27.00	de

Service document

Name	Version	Language
10050050-Service-8806-1.000-de.pdf (175 KB)	1.000	de
