Powered mixer with 6 channels

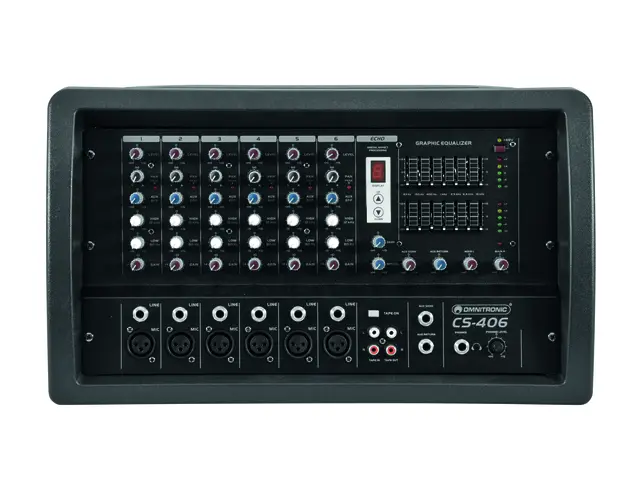

OMNITRONIC CS-406 Powered mixer

OMNITRONIC

Powered mixer with 6 channels

OMNITRONIC CS-406 Powered mixer

Item no. 10050025

Features
  • Low-noise 6-channel mic/line mixer and amplifier with 2 x 200 W/4 ohms output power
  • Adjustable digital reverb
  • 6 mono input channels (XLR and 6.3 mm jack) with gain control, 2-band EQ, pan and effect control
  • Insert or direct out (6.3 mm jack) per input channel
  • Aux send per channel for controlling external effectors
  • Adjustable effect way for controlling external effect units (aux send/return)
  • Tape input and output, switchable (stereo RCA)
  • Adjustable headphones output (6.3 mm jack)
  • +48V phantom power, can be switched centrally
  • 2 x 7-band graphic equalizer for fine-tuned sound
  • Precise 5-fold stereo LED meter
  • 2 Speaker outputs
Technical specifications
Power supply:115/230 V AC, 50/60 Hz
Inputs:
6 x monoXLR or balanced 6.3 mm jacks
1 x Aux Return:balanced 6.3 mm jack
1 x Tape Instereo RCA
Outputs:
1 x Main Out:Speaker sockets
1 x Headphonesbalanced 6.3 mm jack
1 x Aux Send:balanced 6.3 mm jack
1 x Tape Outstereo RCA
Frequency range:
Microphone:10-60000 Hz, ±3 dB
Mono:10-60000 Hz, ±3 dB
Stereo:10-55000 Hz, ±3 dB
Distortion:0.01 %
S/N ratio:112 dB
Tone control/channel:
Treble:±15 dB at 12 kHz
Middle:±15 dB at 2.5 kHz
Bass:±15 dB at 80 Hz
Power output sine:
Stereo 4 ohms2 x 200 W
Dimensions (W x D x H):440 x 260 x 275 mm
Weight:11.5 kg
Power consumption:800.00 W
Height:27,5 cm
Depths:26 cm
Width:44 cm
Packaging units
PU EAN Weight Dimensions
1 4026397183276 10,75 kg 36cm x 35cm x 52cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
10050025-Manual-23764-1.20-de_en.pdf (2 MB) 1.20 de_en
Service document
Name Version Language
10050025-Service-8806-1.00-de.pdf (175 KB) 1.00 de
All images
Name Version Language
10050025-Images.zip
