Live recording mixer with 14 inputs

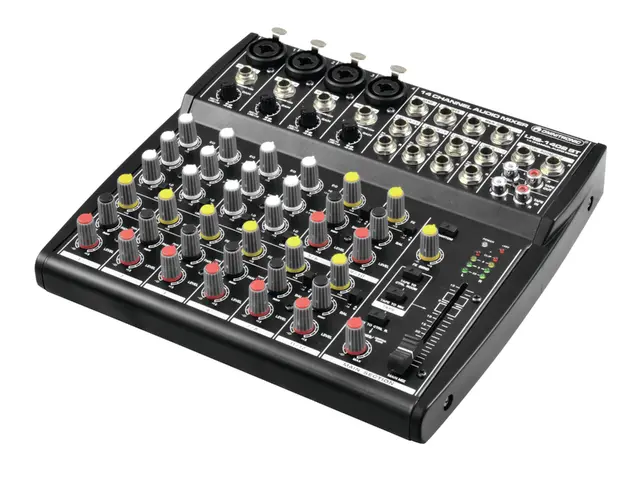

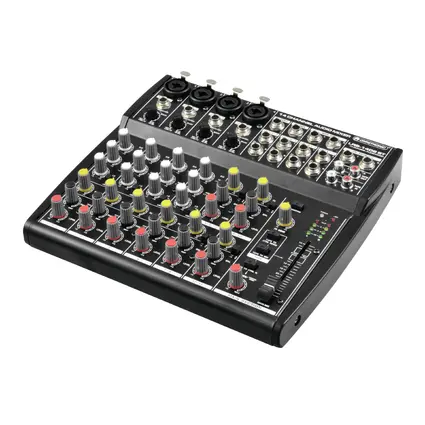

OMNITRONIC LRS-1402ST Live Recording Mixer

OMNITRONIC

Live recording mixer with 14 inputs

OMNITRONIC LRS-1402ST Live Recording Mixer

Stock for approx. 12 wk(s)
139,00
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 10040229

Features
  • 4 mono input channels with gain control, 3-way EQ, low cut and pan control
  • 4 stereo input channels with balance control
  • Adjustable FX send output
  • Inserts for the mono input channels
  • Tape input and output
  • Separate main mix and control room outputs
  • Adjustable headphones output
  • Master fader
  • +48 V phantom power, can be switched centrally
  • Precise 4-digit stereo LED level display
  • Operation via supplied power unit
Technical specifications
Power supply:2 x 18.5 V AC, 350 mA
via supplied PSU
Inputs/sensitivity:
Mic, mono0.5 mV, combined XLR/6.3 mm jack bal.
Insert140 mV, 6.3 mm jack unbal.
Line In, stereo38 mV/150 mV, 6.3 mm jack L/R bal.
Tape In400 mV, RCA L/R
Outputs/level:
Main Out:800 mV, 6.3 mm jack L/R unbal.
Control Roommax. 3 V, 6.3 mm jack L/R unbal.
FX Sendmax. 10 V, 6.3 mm jack unbal.
Tape Out60 mV, RCA L/R
Headphones6.3 mm jack unbal.
Headphones impedance:>8 ohms
Frequency range:20-20000 Hz
Distortion:<0.04 %
S/N ratio:94 dB
Tone control/channel:
Treble:±15 dB at 12 kHz
Middle:±15 dB at 2.5 kHz
Bass:±15 dB at 80 Hz
Dimensions (W x D x H):225 x 245 x 50 mm
Weight:1.9 kg
Power consumption:10.00 W
Packaging units
PU EAN Weight Dimensions
1 4026397449143 2,20 kg 33cm x 29cm x 9cm
4 4026397467109
5 4026397481181 12,00 kg 46cm x 31cm x 36cm
