Live recording mixer with 12 inputs

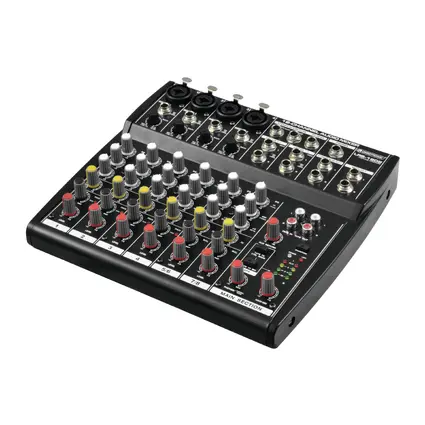

OMNITRONIC LRS-1202 Live Recording Mixer

OMNITRONIC

Live recording mixer with 12 inputs

OMNITRONIC LRS-1202 Live Recording Mixer

Stock for approx. 12 wk(s)
119,00
add to cart
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 10040223

Features
  • 4 mono input channels with gain control, 3-way EQ and pan control
  • 4 stereo input channels with 3-way EQ and balance control
  • Adjustable stereo aux return input and FX send output
  • Inserts for the mono input channels
  • Tape input and output
  • Separate main mix and control room outputs
  • Adjustable headphones output
  • +48 V phantom power, can be switched centrally
  • Precise 4-digit stereo LED level display
  • Operation via supplied power unit
Technical specifications
Power supply:2 x 18.5 V AC, 350 mA
via supplied PSU
Inputs/sensitivity:
Mic, mono0.5 mV, combined XLR/6.3 mm jack bal.
Insert140 mV, 6.3 mm jack unbal.
Line In, stereo60 mV, 6.3 mm jack L/R bal.
Aux Return:60 mV, 6.3 mm jack L/R bal.
Tape In400 mV, RCA L/R
Outputs/level:
Main Out:800 mV. 6.3 mm jack L/R unbal.
Control Roommax. 3 V, 6.3 mm jack L/R unbal.
FX Sendmax. 10 V, 6.3 mm jack unbal.
Tape Out60 mV, RCA L/R
Headphones6.3 mm jack unbal.
Headphones impedance:>8 ohms
Distortion:<0.04 %
S/N ratio:91 dB
Tone control/channel:
Treble:±15 dB at 12 kHz
Middle:±15 dB at 2.5 kHz
Bass:±15 dB at 80 Hz
Dimensions (W x D x H):225 x 245 x 50 mm
Weight:1.9 kg
Power consumption:10.00 W
Frequency range:20 - 20000 Hz
Packaging units
PU EAN Weight Dimensions
1 4026397449129 2,20 kg 33cm x 29cm x 9cm
4 4026397467086
5 4026397481204 11,90 kg 46cm x 30cm x 36cm
