12-channel home-recording mixer with delay effect

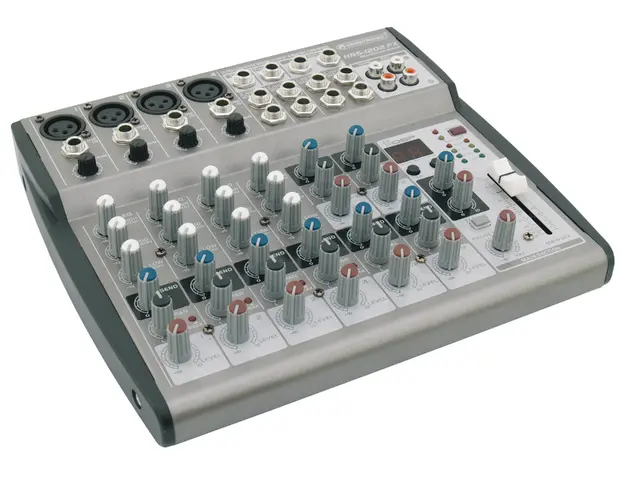

OMNITRONIC HRS-1202FX FX mixer

OMNITRONIC

12-channel home-recording mixer with delay effect

OMNITRONIC HRS-1202FX FX mixer

Item no. 10040207

Features
  • Low noise 12-channel Mic/Line-mixer
  • 4 mono inputs with XLR sockets, +48V Phantom-power and balanced line
  • 4 stereo inputs with balanced 6.3 mm jack sockets
  • Stereo inputs can also be operated mono
  • 3-band EQ for all mono inputs
  • Adjustable delay effect and effects display
  • FX send control per channel for internal FX processor and/or as external send
  • Peak-LED per mono input
  • Main mix output plus separate phones and stereo CD/tape output
  • CD/tape input assignable to main mix or phones output
  • 60-mm high-quality faders
Technical specifications
Power supply:2 x 12 V AC, 50 Hz
via included power unit
Inputs:
4 monoXLR
4 stereobalanced 6.3 mm jacks
1 Tape InRCA
Outputs:
1 Master-Outbalanced 6.3 mm jacks
1 Aux Send:balanced 6.3 mm jacks
1 Tape OutRCA
1 Phonesbalanced 6.3 mm jacks
1 Rec RCA
Frequency range:
Microphone:10-60000 Hz, ±3 dB
Mono:10-60000 Hz, ±3 dB
Stereo:10-55000 Hz, ±3 dB
Distortion:0.01 %
S/N-ratio:112 dB
Tone control/channel:
Treble:±15 dB at 12 kHz
Middle:±15 dB at 2.5 kHz
Bass:±15 dB at 80 Hz
Dimensions (W x D x H):245 x 220 x 43 mm
Weight:2.8 kg
Power consumption:25.00 W
Packaging units
PU EAN Weight Dimensions
1 4026397262841 2,90 kg 34cm x 32cm x 10cm
5 4026397304701 15,20 kg 52cm x 33cm x 35cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00025774.pdf 1.00 de/en
All images
Name Version Language
10040207.zip
