Compact 6-channel home-recording mixer

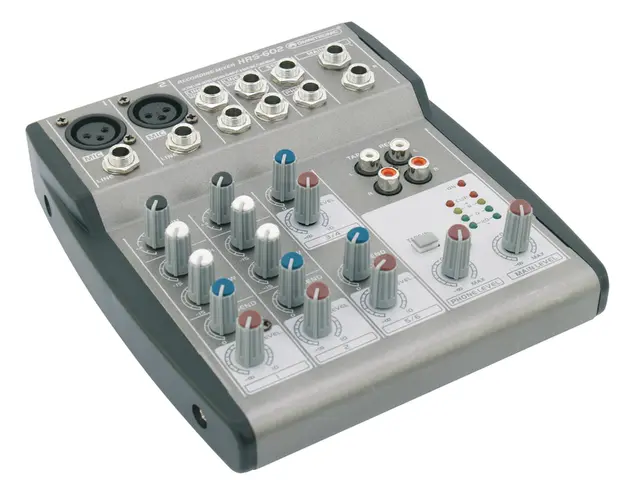

OMNITRONIC HRS-602 Home recording mixer

OMNITRONIC

Compact 6-channel home-recording mixer

OMNITRONIC HRS-602 Home recording mixer

Item no. 10040202

Features
  • Low noise 6-channel Mic/Line-mixer
  • 2 mono inputs with XLR sockets
  • 2 stereo inputs with balanced 6.3 mm jack sockets
  • Stereo inputs can also be operated mono
  • 2-band EQ for all mono inputs
  • Aux-Send per channel for controlling external effectors
  • Separate Main Mix and headphones outputs
  • Tape inputs assignable to Master or headphones
Technical specifications
Power supply:2 x 15 V AC, 50 Hz
via included power unit
Inputs:
2 monoXLR
2 stereobalanced 6.3 mm jacks
1 Tape InRCA
Outputs:
1 Master-Outbalanced 6.3 mm jacks
1 Aux Send:balanced 6.3 mm jacks
1 Tape OutRCA
1 Phonesbalanced 6.3 mm jacks
1 Rec RCA
Frequency range:
Microphone:10-60000 Hz, ±3 dB
Mono:10-60000 Hz, ±3 dB
Stereo:10-55000 Hz, ±3 dB
Distortion:0.01 %
S/N-ratio:112 dB
Tone control/channel:
Treble:±15 dB at 12 kHz
Bass:±15 dB at 80 Hz
Dimensions (W x D x H):168 x 182 x 43 mm
Weight:1.8 kg
Power consumption:20.00 W
Packaging units
PU EAN Weight Dimensions
1 4026397262742 1,80 kg 31cm x 22cm x 10cm
5 4026397304657 10,00 kg 54cm x 33cm x 24cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
00025772.pdf 1.00 de/en
All images
Name Version Language
10040202.zip
