Professional 16-channel studio and live mixer

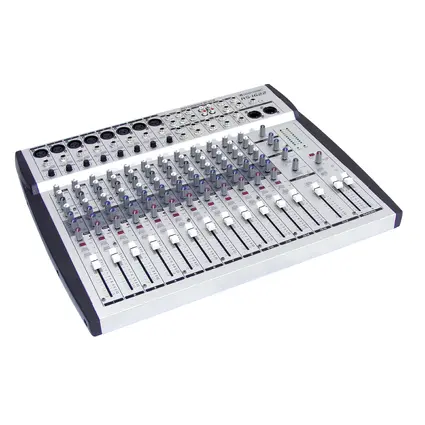

OMNITRONIC RS-1622 Recording mixer

OMNITRONIC

Professional 16-channel studio and live mixer

OMNITRONIC RS-1622 Recording mixer

Item no. 10040125

Features

Professional 16-channel studio and live mixer

  • Low noise 16-channel Mic/Line-mixer
  • 8 mono inputs with XLR sockets, +48V Phantom-power and balanced line inputs
  • Insert or Direct Out for every mono channel
  • 4 stereo inputs with balanced 6.3 mm jack sockets
  • Stereo inputs can also be operated mono
  • 3-band EQ with semi-parametric mids for all mono inputs
  • 4-band EQ for all stereo inputs
  • Peak-LED and switchable Low Cut per mono input
  • 2 Aux-Send (pre/post) per channel for controlling external effectors and for monitoring
  • 2 stereo Aux-Return with balanced 6.3 mm jack sockets
  • Separate Main Mix, Control Room and headphones outputs
  • Tape inputs and outputs
  • Precise 10-LED meter
  • 60-mm high-quality faders
Technical specifications
Power consumption:25.00 W
Width:48 cm
Height:5.5 cm
Depth:40 cm
Weight:7.25 kg
Power supply:2 x 20 V AC, 50/60 Hz
via included power unit
Inputs:
8 monoXLR or balanced 6.3 mm jack
8 Inserts6.3 mm jacks
4 stereobalanced 6.3 mm jacks
2 Aux-Returnbalanced 6.3 mm jacks
1 Tape InRCA
Outputs:
2 Main Out:XLR and balanced 6.3 mm jacks
1 Control Roombalanced 6.3 mm jacks
2 Aux Send:balanced 6.3 mm jacks
4 Direct Out6.3 mm jacks
1 Tape OutRCA
Headphonesunbalanced 6.3 mm jack
Frequency range:
Microphone:10-60000 Hz, ±3 dB
Mono:10-60000 Hz, ±3 dB
Stereo:10-55000 Hz, ±3 dB
Distortion:0.01 %
S/N ratio:112 dB
Tone control/mono channel:
High:±15 dB at 12 kHz
Mid:±15 dB at 250 Hz - 6 kHz
Low:±15 dB at 80 Hz
Tone control/stereo channel:
High:±15 dB at 12 kHz
Hi Mid:±15 dB at 3 kHz
Lo Mid:±15 dB at 500 Hz
Low:±15 dB at 80 Hz
Dimensions (W x D x H):480 x 400 x 55 mm
Packaging units
PU EAN Weight Dimensions
1 4026397183269 8,15 kg 60cm x 44cm x 12cm
3 4026397192537 25,55 kg 61cm x 37cm x 45cm
