Well-structured 8-channel studio and live mixer

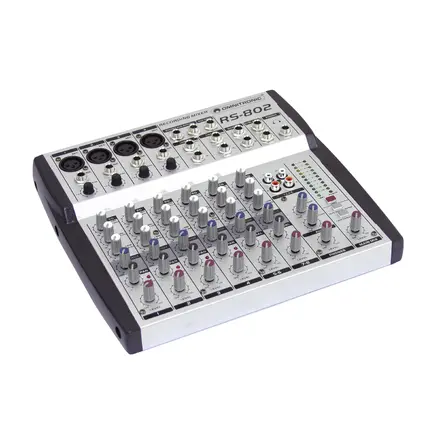

OMNITRONIC RS-802 Recording mixer


Well-structured 8-channel studio and live mixer

OMNITRONIC RS-802 Recording mixer

Item no. 10040075

  • Low-noise 8-channel mic/line mixer
  • 4 mono inputs with XLR sockets, +48V phantom power and balanced line inputs
  • 2 stereo inputs with balanced 6.3 mm jack sockets
  • Stereo inputs can also be operated mono
  • 3-band EQ for all inputs
  • Peak LED per mono input
  • Aux Send per channel for controlling external effectors
  • Stereo Aux Return with balanced 6.3 mm jack sockets
  • Separate Main Mix, Booth and headphones outputs
  • Tape inputs assignable to Master, Booth/headphones
  • Precise 10-fold stereo LED meter
Technical specifications
Power supply:2 x 20 V AC, 50/60 Hz
via included power unit
4 x monoXLR or balanced 6.3 mm jack
2 x stereobalanced 6.3 mm jacks
1 x Aux Return:balanced 6.3 mm jacks
1 x Tape Instereo RCA
1 x Master Outbalanced 6.3 mm jacks
1 x Control Roombalanced 6.3 mm jacks
1 x Aux Send:balanced 6.3 mm jacks
1 x Tape Outstereo RCA
Frequency range:
Microphone:10-60000 Hz, ±3 dB
Mono:10-60000 Hz, ±3 dB
Stereo:10-55000 Hz, ±3 dB
Distortion:0.01 %
S/N ratio:112 dB
Tone control/channel:
Treble:±15 dB at 12 kHz
Middle:±15 dB at 2.5 kHz
Bass:±15 dB at 80 Hz
Dimensions (W x D x H):270 x 250 x 55 mm
Weight:3 kg
Power consumption:15,00 W
Height:5,5 cm
Depth:25 cm
Width:27 cm
Packaging units
PU EAN Weight Dimensions
1 4026397183245 3,25 kg 37cm x 31cm x 12cm
5 4026397192551 17,45 kg 60cm x 38cm x 33cm
Loading accessories. Please wait...
Spare parts
Loading spareparts. Please wait...
Name Version Language
10040075-Illustration-6365-5.00-de_en_fr_es.pdf (1 MB) 5.00 de_en_fr_es
Catalog pages
Service document
Name Version Language
10040075-Service-8803-1.00-en.pdf (91 KB) 1.00 en
