Multifunctional 5+2-channel installation mixer, Black
OMNITRONIC EM-550B Entertainment Mixer

2 U

The article is no longer in our assortment.

Features

Multifunctional 5+2-channel installation mixer, Black

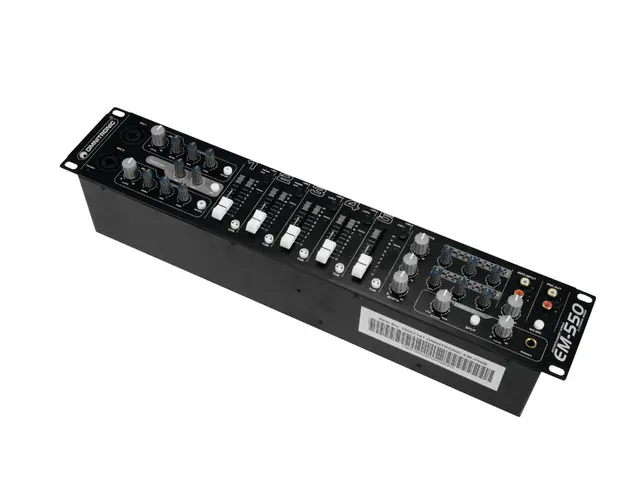

5 input channels with recessed gain controls on the rear panel, signal LED and super smooth dual-rail channel faders
2 separate microphone channels with level control, 3-way equalizer and talkover button
Talkover level and response time adjustable
Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output
Color illuminated rotary controls and rubber buttons
1 additional line input with level control on the front panel
2 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter
1 adjustable booth output with mono/stereo selector switch
2 record outputs (independent of the master channels) with on/off switch for microphone signals
Inputs: 9 x line (stereo RCA), 2 x line/phono (stereo RCA), switchable; 2 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack)

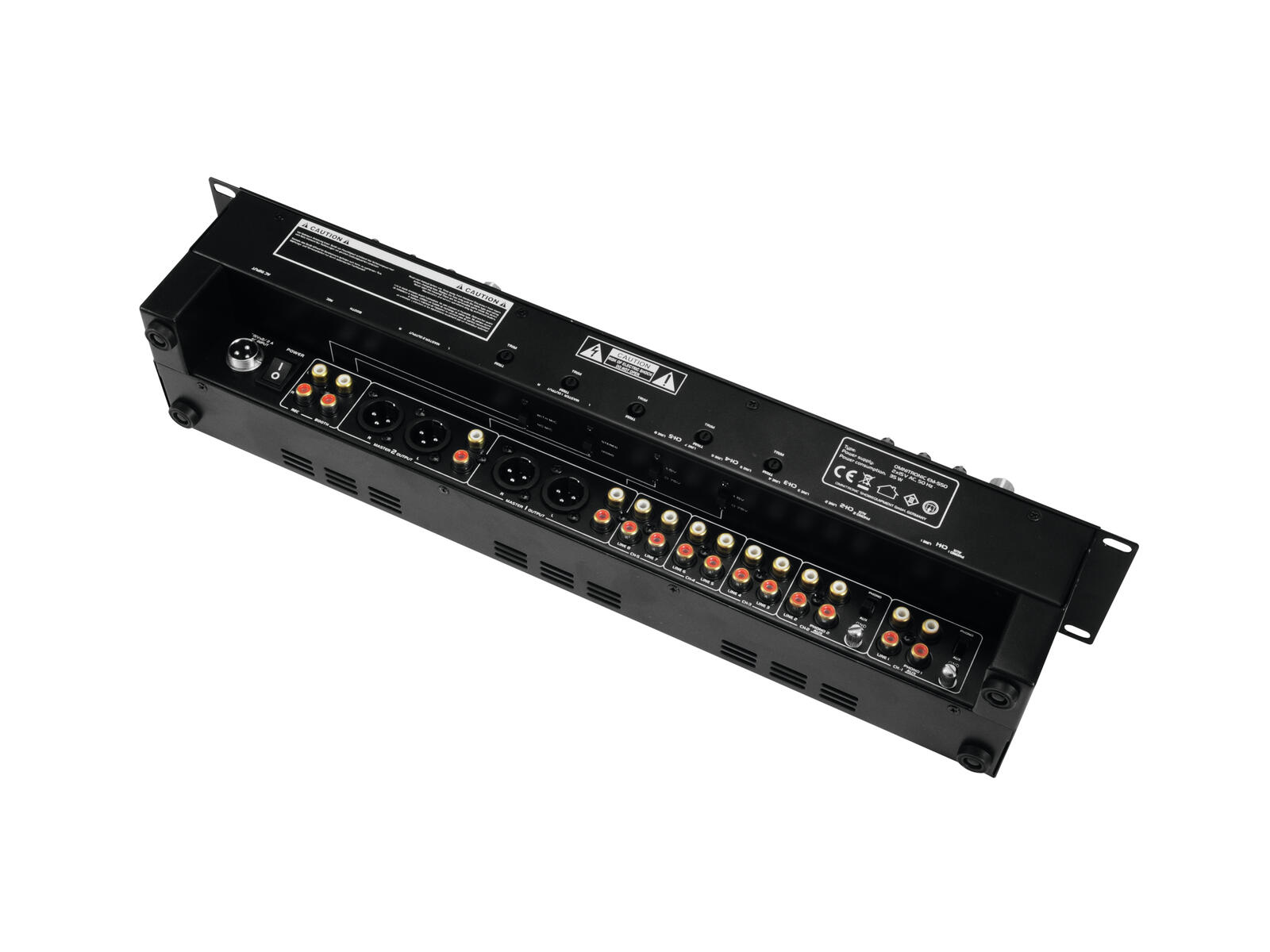

Outputs: 2 x master (optionally 3-pin XLR or stereo RCA), 1 x booth (stereo RCA) and 2 x record (stereo RCA)
Operation via supplied power unit
Rack installation, 2 U
Ideal for restaurants, bars, theme parks, hotels and all applications where microphones need to be mixed with music (e.g. karaoke)
Housing design: (19") 48.3 cm rack installation 2 U

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	35.00 W
Power connection:	Mains input 3-pin screw plug connector (m) mounting version Power supply cord with Euro plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>65 dB
Master equalizer:	2 x 3-band tone control Stereo
Housing design:	(19") 48.3 cm rack installation 2 U
Width:	48.3 cm
Height:	8.9 cm
Depth:	11.5 cm
Weight:	3.80 kg
Inputs:
Microphone 1.2	combined XLR/6.3 mm jack (1/4") (bal.)
Minimum input voltage:	1 mV RMS
Line 1-8, Aux 1.2:	stereo RCA
Minimum input voltage:	150 mV RMS
Phono 1.2:	stereo RCA
Minimum input voltage:	3 mV RMS
Outputs:
Master 1.2:	stereo RCA, stereo XLR
Output voltage:	0.75 V/1.5 V RMS (switchable)
Booth:	stereo RCA (switchable to mono operation)
Output voltage:	0.75 V RMS
Record:	stereo RCA
Output voltage:	0.75 V RMS
Headphones output:	6.3 mm stereo jack (min. 8 ohms)
Tone control (microphone 1.2; output 1.2):
4 x High:	-12 dB to +12 dB/ 10 kHz
4 x Mid:	-12 dB to +12 dB/ 1 kHz
4 x Low:	-12 dB to +12 dB/ 100 Hz
Talkover attenuation:	-15 dB
Distortion:	0.03 %
Dimensions (WxHxD):	483 x 115 x 90 mm (19", 2 U)

Packaging units

PU	EAN	Weight	Dimensions
1	4026397466423	4,25 kg	61,5cm x 16cm x 14cm
