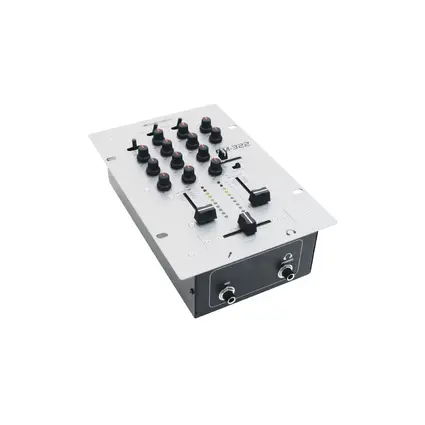

Professional 2+1-channel DJ mixer


Professional 2+1-channel DJ mixer


Item no. 10006816


Professional 2+1-channel DJ mixer

  • 2 input channels, switchable phone/line with 3-way equalizer
  • 1 separate DJ mic channel with input sensitivity control (gain), 2-fold tone control (bass, treble) and talkover selector
  • Microphone input via 6.3 mm mono jack on the faceplate
  • High-quality and super-smooth channel faders
  • Super-smooth crossfader replaceable from above
  • Headphones output adjustable via Cue Level control
  • Additional Cue Split/Cue Mix switch
  • Cue Split function: the Cue signal is on the one side of the headphones and the output signal on the other side
  • Cue Mix function: the adjustable mix of Cue signal and output signal is on both sides of the headphones
  • Mixing of the headphones signal possible via cue mixing fader
  • Master out 10-fold LED level displays (L/R)
  • Master control
  • Rec Out independent from Master level for records with static level
Technical specifications
Power consumption:4,50 W
Frequency range:20 - 20000 Hz
Width:17,8 cm
Height:8,5 cm
Depth:27 cm
Weight:2,05 kg
Power supply:230 V AC, 50 Hz,
via supplied power unit
Inputs:2 phono, 4 line, 1 mic
Minimum input voltage:
Microphone:2 mV, 4 kohms
Phono:3 mV, 50 kohms
Line:200 mV, 6 kohms
Output voltage:4.5 V peak to peak
Outputs:1 master, 1 rec via RCA
Distortion:<0.09 %
S/N ratio:60 dB
Talkover attenuation:-14 dB
Packaging units
PU EAN Weight Dimensions
1 4026397193459 2,50 kg 26,8cm x 13,3cm x 34,2cm
2 4026397194029 5,55 kg 36,5cm x 29,5cm x 29,5cm
Spare parts
Loading spareparts. Please wait...
User manual
Name Version Language
10006816-Manual-39562-1.200-de_en_fr_es.pdf (1 MB) 1.200 de_en_fr_es
