Professional 4-channel DJ mixer

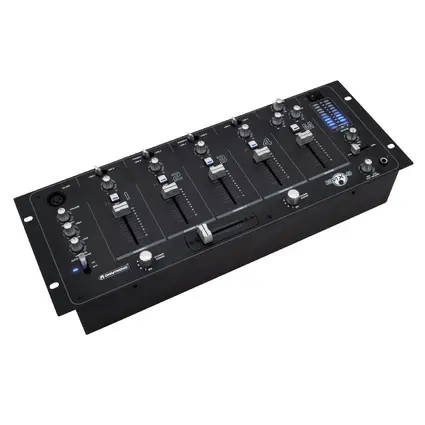

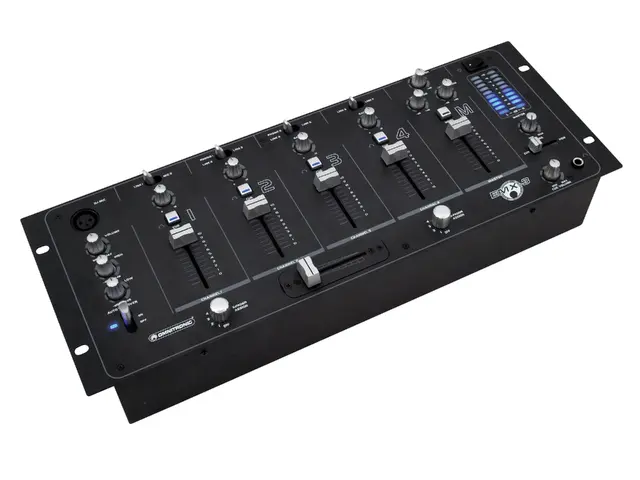

OMNITRONIC EMX-3 4-channel club mixer

OMNITRONIC

Professional 4-channel DJ mixer

OMNITRONIC EMX-3 4-channel club mixer

Item no. 10006768

Features

Professional 4-channel DJ mixer

  • 4 channels with gain control, cue button and super-smooth channel faders
  • 1 DJ microphone channel with talkover selector and 2-band equalizer
  • Pre-fader listening to all stereo input channels and the master output via adjustable stereo headphones output
  • Replaceable crossfader for crossfading between input channels with assignment switches
  • Master channel with super-smooth fader, 3-band equalizer, mono/stereo selector switch and 10-digit stereo LED level meter
  • Adjustable zone output, and record output, independent of the master
  • Inputs: 4 x line (stereo RCA), 2 x phono/line (stereo RCA), switchable; 1 x microphone (6.3 mm jack), 1 x microphone (XLR) and headphones (6.3 mm jack)
  • Outputs: master (stereo RCA, 6.3 mm jack, bal.), zone and record (both stereo RCA)
  • Operation via supplied power unit
  • Rack installation, 4 U
  • Housing design: (19") 48.3 cm rack installation
Technical specifications
Power consumption:30,00 W
Frequency range:20 - 20000 Hz
Housing design:(19") 48.3 cm rack installation
Width:48,3 cm
Height:8,9 cm
Depth:17,9 cm
Weight:3,40 kg
Power supply:230 V AC, 50 Hz,
via supplied power unit
Inputs:
DJ microphone (front):3-pin XLR
MIC 2 (rear):6.3 mm jack (1/4") (bal.)
Impedance:1 kohms
Minimum input voltage:1.5 mV RMS
LINE 1-4:stereo RCA
Impedance:27 kohms
Minimum input voltage:150 mV RMS
PHONO 1.2:stereo RCA
Impedance:47 kohms
Minimum input voltage:3 mV RMS
Outputs:
MASTER:stereo RCA, 6.3 mm stereo jack (bal.)
ZONE:stereo RCA
Impedance:400 ohms
Output voltage:1 V RMS/ 0 dB
REC:stereo RCA
Impedance:5 kohms
Output voltage:225 mV RMS
Headphones output:6.3 mm stereo jack (min. 16 ohms)
Tone control (DJ microphone):
1 x High:-12 dB to +12 dB/ 10 kHz, ±1 dB
1 x Low:-12 dB to +12 dB/ 100 Hz, ±1 dB
Tone control (MASTER):
1 x High:-15 dB to +15 dB/ 40 kHz, ±1 dB
1 x Middle:-15 dB to +15 dB/ 40 kHz, ±1 dB
1 x Low:-15 dB to +15 dB/ 40 kHz, ±1 dB
S/N ratio:>80 dB
Distortion:0.02%
Dimensions (WxHxD):483 x 179 x 102 mm (19", 4 U)
Packaging units
PU EAN Weight Dimensions
1 4026397355604 4,55 kg 53cm x 31cm x 15,5cm
Support
Spare parts
Loading spareparts. Please wait...
Downloads
User manual
Name Version Language
10006768-Manual-41000-1.000-de_en.pdf (4 MB) 1.000 de_en
Catalog pages
Service document
Name Version Language
10006768-Service-47329-1.000-de.pdf (887 KB) 1.000 de
All images
Name Version Language
10006768-Images.zip
