Technical specifications

Weight:	25.54 kg
OMNITRONIC DS-83 MK2 3-Way Speaker 300W
Power:	Program: 300W Rated: 150W RMS
Frequency range:	50 - 20000 Hz
Sensitivity:	93 dB (1W/1m)
Impedance:	8 ohms
Connections:	Input: speaker via 2 x speaker built-in socket (F)
Speaker:	1 x woofer 8"
Type of speaker:	Compact cabinet speaker
Dimensions:	Width: 32 cm Depth: 25 cm Height: 48 cm
Weight:	8.20 kg
Components:	20 cm woofer (8"), horn, 2 tweeters
Connection:	2 Speaker sockets
Sensitivity:	93 dB
Dimensions (H x W x D):	480 x 320 x 250 mm
OMNITRONIC CMK-10 Microphone Kit
Type:	Microphone set
Cable length:	5 m
Connections:	3-pin XLR
Color:	Black
Weight:	2.70 kg
Microphone
Capsule type:	Dynamic
Polar pattern:	Cardioid
Switch:	On/off switch
Stand
Type (general stands):	Microphone stand with boom
OMNITRONIC EDP-300 Class D Amplifier
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	400.00 W
Output power:	Max. 360 W 100 W RMS (8 ohms)
Housing design:	(19") 48.3 cm rack installation
Dimensions:	Width: 48.3 cm Depth: 25 cm Height: 4.45 cm
Weight:	4.35 kg
Power output sine:
stereo 4 ohms	2 x 180 W
stereo 8 ohms	2 x 100 W
8 ohms bridged	1 x 360 W
Frequency range:	20-20000 Hz, ±0.5 dB
Damping factor:	>200
Distortion factor:	0.05 %
Slew rate:	20 V/µsec
S/N ratio:	100 dB
Input impedance:	20 kohms (balanced), 10 kohms (unbalanced)
Input connectors:	2 x XLR
Output connectors:	2 x Speaker (L/R), 1 x Speaker (bridge)
Circuitry:	class D + PFC
Control elements:	power switch, level control per channel, mode switch (stereo/bridged)
LED indicators:	protect, clip, signal level (per channel)
Protection circuits:	softstart, short-circuit, overheat, clipping, overload and VHF signals
Construction:	steel chassis, aluminum front
Dimensions (DxWxH):	250 x 483 x 44 mm (19", 1 U)
OMNITRONIC PM-211 DJ mixer
Power supply:	230 V AC, 50 Hz
Power consumption:	3.00 W
Frequency range:	20 - 20000 Hz
Dimensions:	Width: 18 cm Depth: 14 cm Height: 6.5 cm
Weight:	1.15 kg
	via supplied power unit
Inputs:
Line/phono:	2 x stereo RCA
Aux:	3.5 mm stereo jack
DJ microphone:	6.3 mm jack, unbal.
Outputs:
Master:	stereo RCA
Record:	stereo RCA
Headphones output:	6.3 mm stereo jack (min. 32 ohms)
S/N ratio:	>75 dB
Distortion:	<0.07 %
Dimensions (L x W x H):	180 x 140 x 65 mm
OMNITRONIC Adapter Cable 2xXLR(M)/2xRCA 3m bk
Cable construction:	Audio cable
Cable length:	3 m
Plug A:	2 x 3-pin XLR (M)
Plug B:	2 x RCA (M)
Color:	Black
Weight:	0.20 kg
OMNITRONIC Speaker Cable SPEAKER 2x1.5 5m black
Cable construction:	2 x 1.5 mm² speaker cable
Cable length:	5 m
Plug A:	1 x 2-pin speaker (M)
Plug B:	1 x 2-pin speaker (M)
Color:	Black
Weight:	0.37 kg

Spare parts

Micro CMK-10

Crossover DX-822 with terminal box

Power supply 12V/0,8A AC

Tweeter DS-Series

Pcb (Input/2-channel) PM-211P

OMNITRONIC Speaker System Stand Installation Flange

Crossfader 100KBx2 45mm PM-211/311

Piezohorn DS-83

Fader 50KAx2 45mm PM-211/311 (channel)

RCA socket 1-compartment

Resistor 510 Ohm 3W 5% Metal film

Power socket 2-pin straight supply input

Diode 1N 4148 100V,200mA,1V,4ns,1A SMD

jack mounting socket stereo 6,3mm 5-Pin metal

Resistor 1 kOhm 5W Radial Leaded metal layer

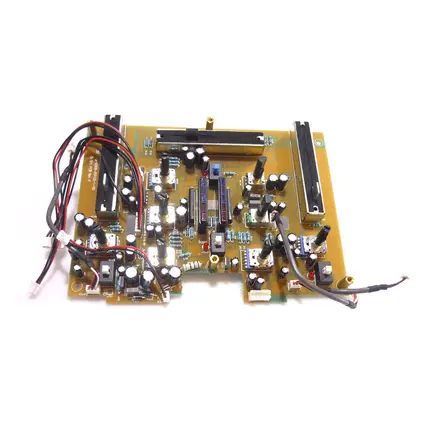

Pcb (Control) PM-211P (CSM211 PCB Rev D)

IC VIPER12A-E PVM ontroller DIP-8

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
09009963-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/EAlu7_W5Hh4

OMNITRONIC Party PA-Set 300W

The article is no longer in our assortment.

No. 09009963

Set consisting of:

2 x OMNITRONIC DS-83 MK2 3-Way Speaker 300W

1 x OMNITRONIC CMK-10 Microphone Kit

1 x OMNITRONIC EDP-300 Class D Amplifier

1 x OMNITRONIC PM-211 DJ mixer

1 x OMNITRONIC Adapter Cable 2xXLR(M)/2xRCA 3m bk

2 x OMNITRONIC Speaker Cable SPEAKER 2x1.5 5m black

OMNITRONIC DS-83 MK2 3-Way Speaker 300W

Rugged full-range speaker system for PA and DJ applications

Party speaker system for disco and rock music
Improved version with more power
3-way bass-reflex system
Speaker connections
Piezo super tweeter for powerful treble
High-quality horn for smooth mid-range
Optional subbass provides a powerful bass
Stable wooden housing with protective grille and tray handles
Scratch-resistant black felt covering
Stable protective steel corners
Flange for stand installation
Applicable as floor monitor, on a subwoofer, standing, on a speaker stand or wall holder
Compact dimensions for car transport
For mobile live and DJ applications

OMNITRONIC CMK-10 Microphone Kit

Low-priced microphone set for studio and stage

Rugged, dynamic microphone with cardoid characteristics
Perfect beginner set for all common applications
For application areas such as: Mobile use; mobile djs / entertainer; small rental

microphone

Polar pattern: Cardioid
For further information about this product, please refer to the Data Sheet under "Downloads"

OMNITRONIC EDP-300 Class D Amplifier

Stereo PA amplifier with SMPS, 2 x 180 W

Stereo PA amplifier with class D circuitry
Low weight and height due to integrated switch mode power supply
Speaker switch-on delay and auto limiters
2 operating modes can be selected (stereo or bridged)
2 level controls
LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
Complete protection set against short-circuit, overheat, clipping, overload and VHF signals
Electronically balanced inputs via XLR mounting jacks
Speaker outputs via lockable Speaker plugs
Robust steel chassis with aluminum front panel
Rack installation with 1 unit
(19") 48.3 cm rack installation

OMNITRONIC PM-211 DJ mixer

2-channel DJ mixer

2 input channels with gain control and phono/line switching
DJ microphone input with talkover selector, level and tone control
Adjustable front aux input for portable music players (e.g. iPod)
Pre-fader listening (CUE) to the input channels via adjustable headphones output, with cue mix control
Crossfader for crossfading between both channels
5-digit stereo LED level meter, switchable between master and PFL signal
Additional recording output
Operation via supplied power unit
