ALUTRUSS Decolock DQ3 rectangle 3.8x3.8x3.4m

ALUTRUSS

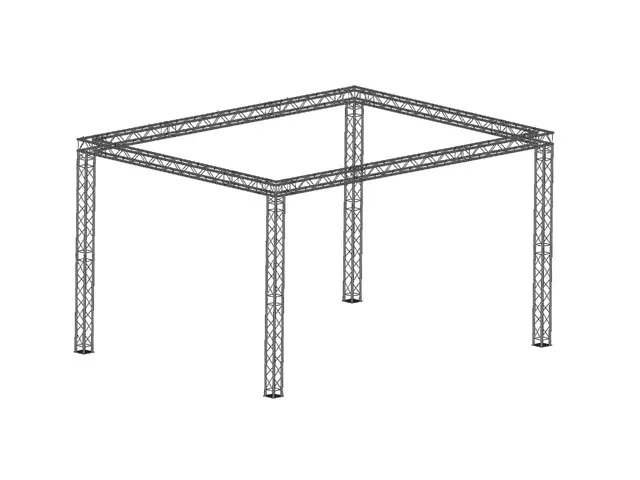

ALUTRUSS Decolock DQ3 rectangle 3.8x3.8x3.4m

Item no. 09009943

60301720 ALUTRUSS DECOLOCK DQ4-3000 4-Way Cross Beam

DECOLOCK DQ4 4-point truss system
DECOLOCK DQ4 is a 4-point truss system made of aluminum. The individual elements are connected via four cones, pivots and pins.

The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The four main chords are made of 35 mm aluminum tube with 2 mm wall thickness and offer sufficient strength at a low weight. The braces have a diameter of 10 mm with 2 mm wall thickness and provide the system with a decorative appearance.

With DECOLOCK, you can realize compact installations with low self weight, e. g. for shop displays, shop decorations, exhibitions, interior design, fair booths, discotheques and theatres.

DECOLOCK is primarily designed for decorative installations and can be used for permanent or temporary installations due to its highly aestethic appearance. The advantages of this system are the compact construction with 220 mm outer dimensions, low weight, optimum strength along with easy and quick assembly.

The documentation of this truss system is closely related to the Codes of Practice SQ P1 - Truss Systems published by the VPLT/PLASA. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!
Features

60301744 ALUTRUSS DECOLOCK DQ4-PAL30 3-Way Corner 90°

4-point truss system

  • Easy installation due to Quick-Lock connectors
  • Low weight
  • For exhibition and shop installers, discotheques and theatres
  • 2 x Connection set included
  • Corner angle: 90°
  • Trusspipe diameter: 35 mm
  • Made in Europe

60301780 ALUTRUSS DECOLOCK DQ4-BPM Base Plate MALE

  • Trusspipe diameter: 35 mm
  • Made in Europe

60301720 ALUTRUSS DECOLOCK DQ4-3000 4-Way Cross Beam

4-point truss system

  • Easy installation due to Quick-Lock connectors
  • Low weight
  • For exhibition and shop installers, discotheques and theatres
  • 1 x Connection set included
  • Trusspipe diameter: 35 mm
  • TÜV Süd
Technical specifications
60301744 ALUTRUSS DECOLOCK DQ4-PAL30 3-Way Corner 90°
Trusspipe:35 mm x 2 mm
Color:Alu colored
Strut diameter x thickness:10 x 2mm
Length:400 mm
Width:400 mm
Height:400 mm
Weight:3,55 kg
60301780 ALUTRUSS DECOLOCK DQ4-BPM Base Plate MALE
Color:Alu colored
Weight:0,92 kg
60301720 ALUTRUSS DECOLOCK DQ4-3000 4-Way Cross Beam
Trusspipe:35 mm x 2 mm
Color:Alu colored
Strut diameter x thickness:10 x 2mm
Length:3000 mm
Width:220 mm
Height:220 mm
Weight:9,67 kg
Welding material:AlMg 5
Welding technique:TIG-welding
