FUTURELIGHT Set FUTURELIGHT DMH-32 + DMX Move

svg
svg
3 U
svg
svg
FUTURELIGHT

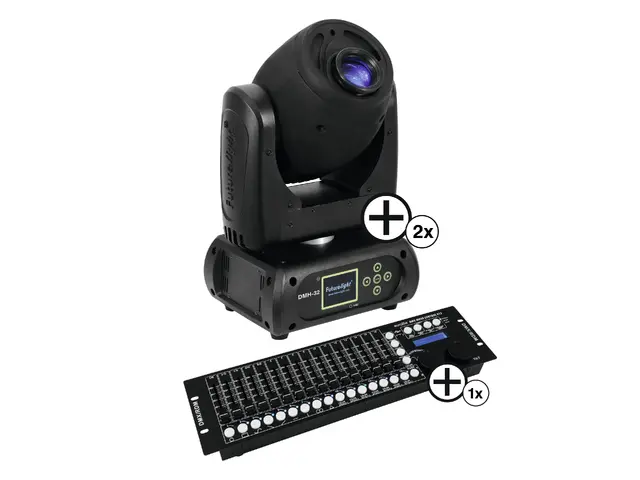

FUTURELIGHT Set FUTURELIGHT DMH-32 + DMX Move

Item no. 09000511

Features

51841828 FUTURELIGHT DMH-32 RGBW LED Moving Head

LED Moving Head with 32 W quadcolor LED and unique color effect prism

  • Equipped with one 32 W quadcolor LED with RGBW colors
  • Comparable to the light output of a 150 W discharge lamp
  • Color effect prism: Not only the gobos, also the colors are split
  • High PAN/TILT speed
  • Supports RDM (Remote Device Management)
  • 16, 18 or 23 DMX channels selectable
  • 5-facet prism
  • Masterdimmer
  • Color presets
  • Stepless RGBW color changing
  • Gobo wheel with 6 rotating gobos plus open
  • All gobos can be interchanged
  • With gobo shake function
  • Exact positioning via 16 bit PAN/TILT movement resolution, dimmer intensity, colors
  • Manual focus
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Automatic position correction
  • PAN angle switchable between 540° and 630°
  • Sound-controlled via built-in microphone
  • Switch-mode power supply, automatic power supply adaption between 100 and 240 Volts without power selector
  • Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • The scenes can be modified via the Control Board or via an external controller and loaded into the memory
  • Number of scenes can be changed individually
  • Software upload by optional accessories via DMX link
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power another device
  • After 8 devices the fixtures must have a renewed connection with the power mains
  • DMX control via any standard DMX controller
  • Control: Sound to light via Microphone

70064515 EUROLITE DMX Move Controller 512

Controller with color & motion effects (28 fixtures, 18 control channels each)

  • DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
  • 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
  • For 28 fixtures with 18 control channels each
  • USB port for storing program data
  • Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
  • 32 programmable chases with 100 scenes each can be stored
  • Manual, time-controlled or sound-controlled chase running mode
  • 32 programmable scenes
  • 2 DMX fixture levels can be controlled, each with up to 18 channels
  • 16 DMX channel faders
  • 2 jog wheels for pan/tilt
  • Blackout function
  • Sound control via built-in microphone
  • Backlit LCD (2 x 16 characters)
  • RDM support (DMX address setup and identify)
  • 3-pin XLR connector
  • Firmware update via USB
  • Desktop console
  • Rack installation with 3 units
  • Control: DMX
  • Housing design: (19") 48.3 cm rack installation 3 U
Technical specifications
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
51841828 FUTURELIGHT DMH-32 RGBW LED Moving Head
Power supply:100-240 V AC, 50/60 Hz
Power consumption:60 W
Beam angle:12°
Gobos:outside diameter 24mm
image diameter 19mm
DMX channels:16
Control:Sound to light via Microphone
Color:Black
Length:244 mm
Width:24,4 cm
Height:34 cm
Depth:20,8 cm
Weight:7,40 kg
DMX channels:16/18/23
DMX connection:5-pin XLR
Sound-control:via built-in microphone
LED type:32 W QCL
LED number:1
Beam angle:12°
Rotating gobo-wheel:6 gobos and open
Outside diameter of the gobos:24 mm
Image diameter of the gobos:19 mm
Maximum PAN-movement:630°
Maximum TILT-movement:270°
Dimensions (L x W x H):244 x 208 x 340 mm
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
70064515 EUROLITE DMX Move Controller 512
Power supply:100-240 V AC, 50/60 Hz
Power consumption:2,70 W
IP classification:IP20
Power connection:Mains input Coaxial power connector (M) via Power supply cord with AC adapter (provided)
DMX channels:512
Control:DMX
Case color:Black
Housing design:(19") 48.3 cm rack installation 3 U
Width:48,3 cm
Height:8,9 cm
Depth:13 cm
Weight:2,39 kg
Number of control channels:512
Storable scenes:32
Storable chases:32 with 600 steps max.
DMX512/RDM output:3-pin XLR connector
Available storage media:USB devices (FAT32)
