EUROLITE Set 10x LED Pixel Ball + LED PSU-5A + MADRIX KEY start

5 cm

360°

The article is no longer in our assortment.

No. 09000457

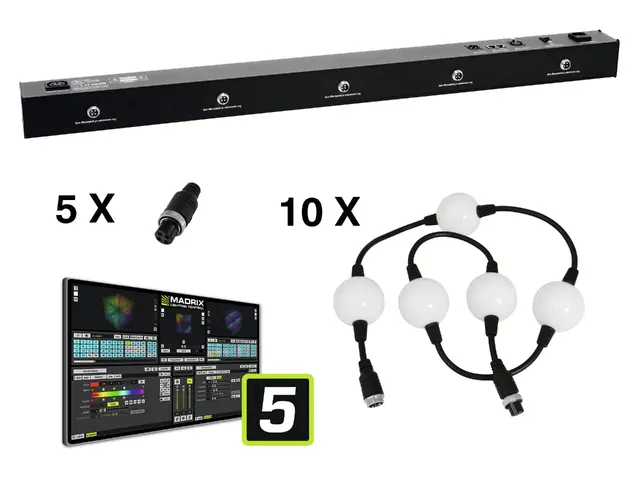

Set consisting of:

10 x EUROLITE LED Pixel Ball 360° 1m

1 x EUROLITE LED PSU-5A Artnet/DMX

5 x EUROLITE Terminator for LED Pixel Ball

1 x MADRIX KEY

1 x MADRIX Software 5 License start

Features

EUROLITE LED Pixel Ball 360° 1m

Flexible LED pixel string

5 pixels, individually controllable
1 m long, flexible string
Ultra-bright TCL LEDs for smooth RGB color mixing in lightweight, white plastic spheres
360° beam angle
Modular concept allows build-up of large curtains for clubs, stages, shops and various other environments
Individual control of static colors, RGB color mixture, internal programs, dimmer, strobe, Master/Slave
Serial connection of 6 strings possible (30 pixels)
Control of up to 150 pixels per LED PSU-5A Artnet/DMX controller (accessory)
Control also possible per MADRIX, DMX and Artnet
Control via stand-alone; Art-Net; DMX

EUROLITE LED PSU-5A Artnet/DMX

Control unit for EUROLITE LED Pixel Ball 360° 1m

Create a RGB color mixing curtain with the decorative LED Pixel Ball strings
For 150 pixels
Serial connection possible
Operable in stand-alone mode or via DMX and Art-Net
Truss installation
Comfortable addressing and setting via control panel with LCD display
Built-in functions: static colors, internal programs, dimmer, strobe, Master/Slave, string length selection
Master/Slave for parallel operation of several devices
Number of DMX channels (8, 450) selectable for numerous applications
Ready for connection via included IEC power cord with safety power plug
Switch-mode power supply for operation between 100 and 240 Volts
Feed-through output allows to power up to 8 devices
Control via stand-alone; Art-Net; DMX
Preprogrammed in LED PC-Control 512

MADRIX KEY

MADRIX 5 KEY - without license

Includes an empty MADRIX KEY
Requires a proper MADRIX 5 License to activate the features or output for the MADRIX 5 Software
The device can be connected via USB to the PC
Made in Germany

MADRIX Software 5 License start

MADRIX 5 licence "start"

Includes 1x MADRIX 5 License "start"
Requires a valid, empty, and metallic MADRIX KEY
Can transmit up to 1024 DMX channels
Compatible with Win 7, Win 8, Win 10,
Made in Germany
Engineered in Germany
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	4,84 kg
EUROLITE LED Pixel Ball 360° 1m
Power consumption:	4 W
Control:	Stand-alone; Art-Net; DMX
Beam angle (1/2 peak):	360°
Dimensions:	Height: 105 cm Diameter: Ø 5 cm
Weight:	0,22 kg
Number of pixels:	5
Pixel configuration:	TCL, SMD 5050 (2 per sphere)
Series connection:	30 pixels
Beam angle:	360°
Dimensions (L x D):	1050 x 50 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
EUROLITE LED PSU-5A Artnet/DMX
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	80 W
Control:	Stand-alone; Art-Net; DMX
Preprogrammed in:	LED PC-Control 512
Dimensions:	Length: 100 cm Depth: 7,5 cm Height: 10 cm
Weight:	2,48 kg
Output voltage:	12 V AC
Outputs for pixel strings:	5
Pixel control:	max. 150
Serial connection:	yes
Number of DMX channels:	8/450
DMX connection:	3-pin XLR
Art-Net connection:	RJ45, CAT5e
Dimensions (L x W x H):	1005 x 75 x 100 mm
EUROLITE Terminator for LED Pixel Ball
Housing color:	Black
Weight:	0,02 kg
MADRIX KEY
Power connection:	Mains input via USB A (M) connectable version
USB port:	Type A
PC connect:	Via USB
Weight:	0,07 kg
MADRIX Software 5 License start
DMX channels:	Output 1024
Weight:	0,00 kg
Operating system:	Win 7, Win 8, Win 10,
