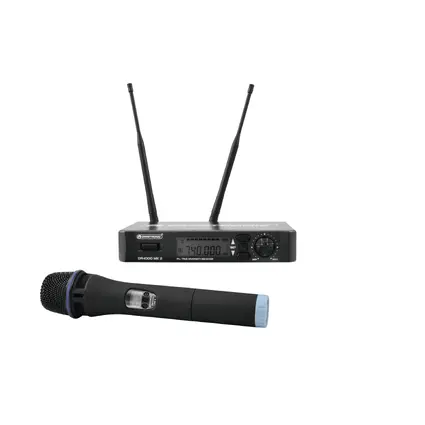

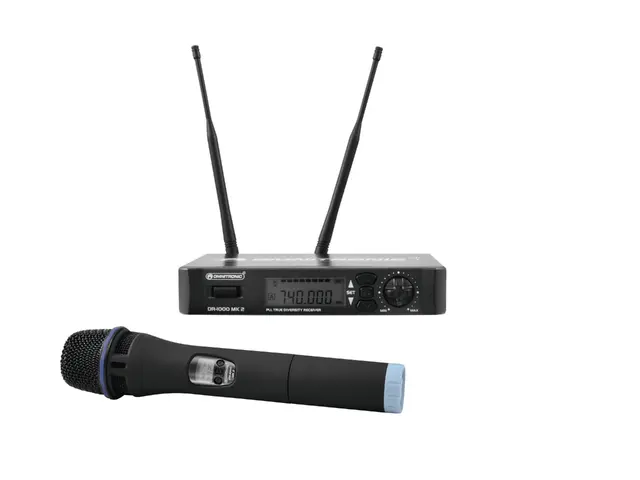

OMNITRONIC Set OMNITRONIC DR-1000+HM-1000+TM-1000MK2

OMNITRONIC



OMNITRONIC Set OMNITRONIC DR-1000+HM-1000+TM-1000MK2

Item no. 09000249

13061092 OMNITRONIC DR-1000 MK2 Wireless Receiver

A variety of options with multi-frequency wireless systems
With the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.

13055092 OMNITRONIC HM-1000 MK2 Wireless microphone

Professional features for professional use
Who does not know the problems caused by anxious users: the presenter starts switching on and off the microphone, tests the signal transmission by knocking on the cover and making wild announcements or even changes the frequency. Thanks to OMNITRONIC's HM-1000, these strains on our nerves are over. Due to a special lock function, the user cannot make any changes by himself or even switch the microphone on and off.
The sound engineer can read all microphone operation modes right from the receiver display: is the frequency right, are microphone signals received and is the battery power still sufficient?
In this way, an event can perfectly be prepared and the sound engineer can act immediately if problems occur.
Every OMNITRONIC HM-1000 comes with 8 different colour caps so that every frequency can individually be marked. After making the necessary adjustments simply attach the colour cap to the end of the microphone body.
All necessary adjustments can easily be carried out via micro buttons. All modes are indicated on the LC-display.
If the signal strength at the receiver is too high, the microphone gain can be adjusted in 4 steps: 0, -10, -20 and -30 dB.
The metal housing of the HM-1000 is very rugged and could not be destroyed by falling one meter.

13055511 OMNITRONIC TM-1000 MK2 Pocket transmitter

For the rough stage use
The TM-1000 pocket transmitter comes in a rugged metal housing and withstands every rough stage use. A robust case with foam padding is included for save transport.
Features

13061092 OMNITRONIC DR-1000 MK2 Wireless Receiver

Multifrequency wireless receiver, True Diversity

  • Multifrequency wireless receiver with UHF pilot tone technology (PLL)
  • High-quality true diversity reception
  • Two removable antennas (BNC connection)
  • Operation in the low-interference UHF band (740-764 MHz)
  • 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
  • Operation range with line of sight 100 meters
  • System expandable to up to 16 receivers with 16 microphones
  • LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
  • Automatic frequency scan
  • Output level control
  • Lock function avoids undesired changes by users, also accidental shutdown
  • Mute mode when signal is absent or too weak
  • 6.3 mm and XLR output
  • Operation via supplied power unit
  • Rugged metal housing
  • Optional mounting frame for rack installation available
  • Optional antenna boosters and antenna distributor for easy setup of several receivers
  • Optional hand-held microphone, pocket transmitter, lavalier microphone and headset available
  • License required in Germany

13055092 OMNITRONIC HM-1000 MK2 Wireless microphone

Hand-held microphone with PLL multifrequency transmitter

  • Dynamic hand-held microphone with UHF pilot tone technology (PLL)
  • Provides high-quality vocal and voice pickup for stages, discotheques, public speaking, theater etc.
  • Matches receiver DR-1000 MK2
  • Operation in the low-interference UHF band (740-764 MHz)
  • 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
  • Operation range 100 meters
  • Multichannel operation with up to 16 microphones possible
  • LCD for battery status and frequency
  • Sensitivity adjustable in 4 steps (0, -10, -20, -30 dB)
  • Lock function avoids undesired changes by users, also accidental shutdown
  • Aluminum diecast housing
  • Operation via 2 x 1.5 V mignon battery (type AA), not included
  • Delivery includes microphone case, microphone holder and 8 color rings to distinguish the microphones on stage
  • License required in Germany
  • On/off/mute-switch: Yes

13055511 OMNITRONIC TM-1000 MK2 Pocket transmitter

Pocket transmitter with PLL multifrequency transmitter

  • Multifrequency pocket transmitter with UHF pilot tone technology (PLL)
  • Matches receiver DR-1000 MK2
  • Suitable for lavalier microphones or headsets with mini XLR plug
  • Operation in the low-interference UHF band (740-764 MHz)
  • 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
  • Transmitting power 10 mW, operation range 100 meters
  • Multichannel operation with up to 16 pocket transmitters possible
  • LCD for battery status and frequency
  • Sensitivity adjustable
  • Lock function avoids undesired changes by users, also accidental shutdown
  • Operation via 2 x 1.5 V mignon battery (type AA), not included
  • Can also be used for direct guitar pickup (via optional adapter cable)
  • License required in Germany
Technical specifications

13061092 OMNITRONIC DR-1000 MK2 Wireless Receiver

System:True diversity, one channel
Carrier frequency:UHF 740-764 MHz
Switching bandwidth:24 MHz
No. of frequencies:192
Frequency steps:125 kHz
Frequency stability:±0.005 %
T.H.D.:<0.6 % at 1 kHz
S/N ratio:>105 dB
Dynamic range:>96 dB
Modulation method:FM
Coverage:100 m (with line-of-sight)
AF response:40-18000 Hz
Audio output:3-pin XLR, balanced
6.3 mm jack, unbalanced
Power supply:100-240 V AC, 50/60 Hz
via supplied power unit
Dimensions:213 x 150 x 40 mm
Frequency band:UHF 740 - 764 MHz
Weight:0.6 kg
Power consumption:6.00 W

13055092 OMNITRONIC HM-1000 MK2 Wireless microphone

Type:Hand-held dynamic microphone
Directivity pattern:Cardioid
Carrier frequency:UHF 740-764 MHz
Switching bandwidth:24 MHz
No. of frequencies:192
Frequency steps:125 kHz
Sensitivity:0, -10, -20, -30 dB
Modulation:FM
Frequency stability:±0.005%
RF power output:10 mW
Coverage:100 m (with line-of-sight)
Power supply:2 x 1.5 V mignon battery (type AA)
Current consumption:approx. 200 mA
Battery life:approx. 8 hours
Dimensions:55 x 245 mm
Frequency band:UHF 740 - 764 MHz
Weight:0.36 kg
Frequency range:50 - 16000 Hz

13055511 OMNITRONIC TM-1000 MK2 Pocket transmitter

Antenna:Built-in
Carrier frequency:UHF 740-764 MHz
Switching bandwidth:24 MHz
No. of frequencies:192
Frequency steps:125 kHz
Modulation:FM
Frequency stability:±0.005 %
AF response:40-18000 Hz
RF power output:10 mW
Coverage:100 m (with line-of-sight)
Power supply:2 x 1.5 V mignon battery (type AA)
Current consumption:100 mA
Battery life:approx. 8 hours
Connection:3-pin mini XLR
Dimensions (L x W x H):196 x 106 x 78 mm
Frequency band:UHF
Weight:0.68 kg
