EUROLITE Set LED Pixel Mesh + Case

Name: EUROLITE Set LED Pixel Mesh + Case
Brand: EUROLITE

EUROLITE Set LED Pixel Mesh + Case

The article is no longer in our assortment.

Item no. 09000244

Print product

Product badge

80503110 EUROLITE LED Pixel Mesh 64x64

Premium wall paintings!
Spots can illuminate a wall, drench it into a certain color and give the scenery a certain mood. Looking at the EUROLITE LED Pixel Mesh it's quite a different story. Connecting single elements (64 x 64cm), huge wall areas arise. They shine by themselves and are able to illustrate colorful videos, animations and diverse projections and thus transmute into living walls. With a pixel pitch of 4cm the illustrations are high quality and really impressive - assumed the distance from the pixel wall is great enough. Stages, clubs and exhibition booths form the perfect environment for the meshes. Here they do come into their own and perform elaborate sequences. The meshes can be expanded up to16 x 16, meaning 100 sqm in total. The elements can work as one huge unit or be split into several parts, running different videos for example. One unit can be operated separately of course, but being combined, the effect is more overwhelming. Explore the different composition possibilities.

Features

Set consisting of:
6x 80503110: EUROLITE LED Pixel Mesh 64x64
1x 80503140: ROADINGER Flightcase 6x LED Pixel Mesh 64x64

80503110 EUROLITE LED Pixel Mesh 64x64

Modular LED video panel for indoor use

Bright and colorful projection of videos, animations and graphics
Ideal for stage/fair construction and fixed installation
Modular display concept allows the build-up of large areas
40 mm pixel pitch (seamless image at about 40 m)
16 x 16 pixels
Transparent design
Fast and easy setup
Ethernet-based signal distribution, IEC inputs and outputs
Controllable via optional network components and PC software
For operation per 128 panels (256 x 128 pixels), the optional network interface (80503120) and the network control system consisting of sending card and software LED studio (80503130) is required
Compatible to media software such as MADRIX
Matching flightcase available
Delivery includes 1 x IEC cable, 1 x 50 cm RJ45 cable (80503165), 4 x U-connector (80503150), 4 x gasket (80503152), 4 x bolt (80503154), 1 x eye-bolt
Color generation: RGB

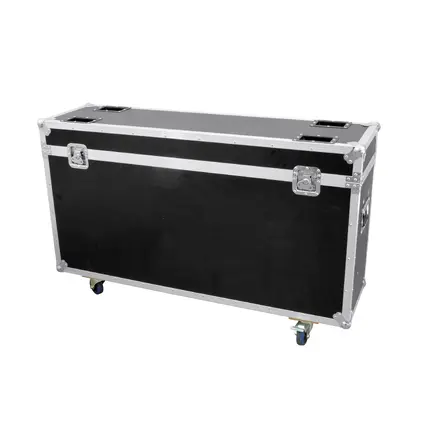

80503140 ROADINGER Flightcase 6x LED Pixel Mesh 64x64

Professional flightcase for 6 x LED Pixel Mesh, with castors

Compartments for 6 LED Pixel Mesh
High-quality workmanship with 9mm plywood multilayered glued, dark brown laminated
Cover foldable with strap hinge
Aluminum profile frames (30 mm) with rounded edges
Three-leg, large steel ball corners (chromium plated)
4 castors, 2 of which with locking brakes
2 butterfly locks
2 hinged, chromium plated case handles
Made in Europe

Technical specifications

80503110 EUROLITE LED Pixel Mesh 64x64
Power supply:	230 V AC, 50 Hz
Power connector:	IEC input and output
Signal connector:	RJ45
Pixel pitch:	40 mm
Pixel configuration:	2 red, 1 blue, 1 green
Module resolution:	16 x 16
Density (point/m²):	625
Brightness (cd/m²):	1300
Scanning mode:	Static
View angle:	120°
Driving voltage:	4.5-5.5 V
Grey scale:	R256 levels, G256 levels, B256 levels
Frame rate:	>/ 60 fps
Dimensions:	640 x 640 x 65 mm
Weight:	10 kg
Cooling fan:	No, cooling by convection
IP classification:	IP20
Power consumption:	75.00 W
Height:	64 cm
Depths:	6,5 cm
Width:	64 cm
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
80503140 ROADINGER Flightcase 6x LED Pixel Mesh 64x64
Outside dimensions (L x W x H):	1380 x 390 x 880 mm
Maximum load:	100 kg
Height:	88 cm
Depths:	39 cm
Width:	138 cm
Weight:	40.40 kg
