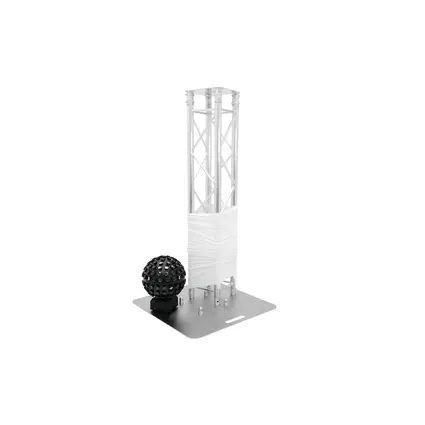

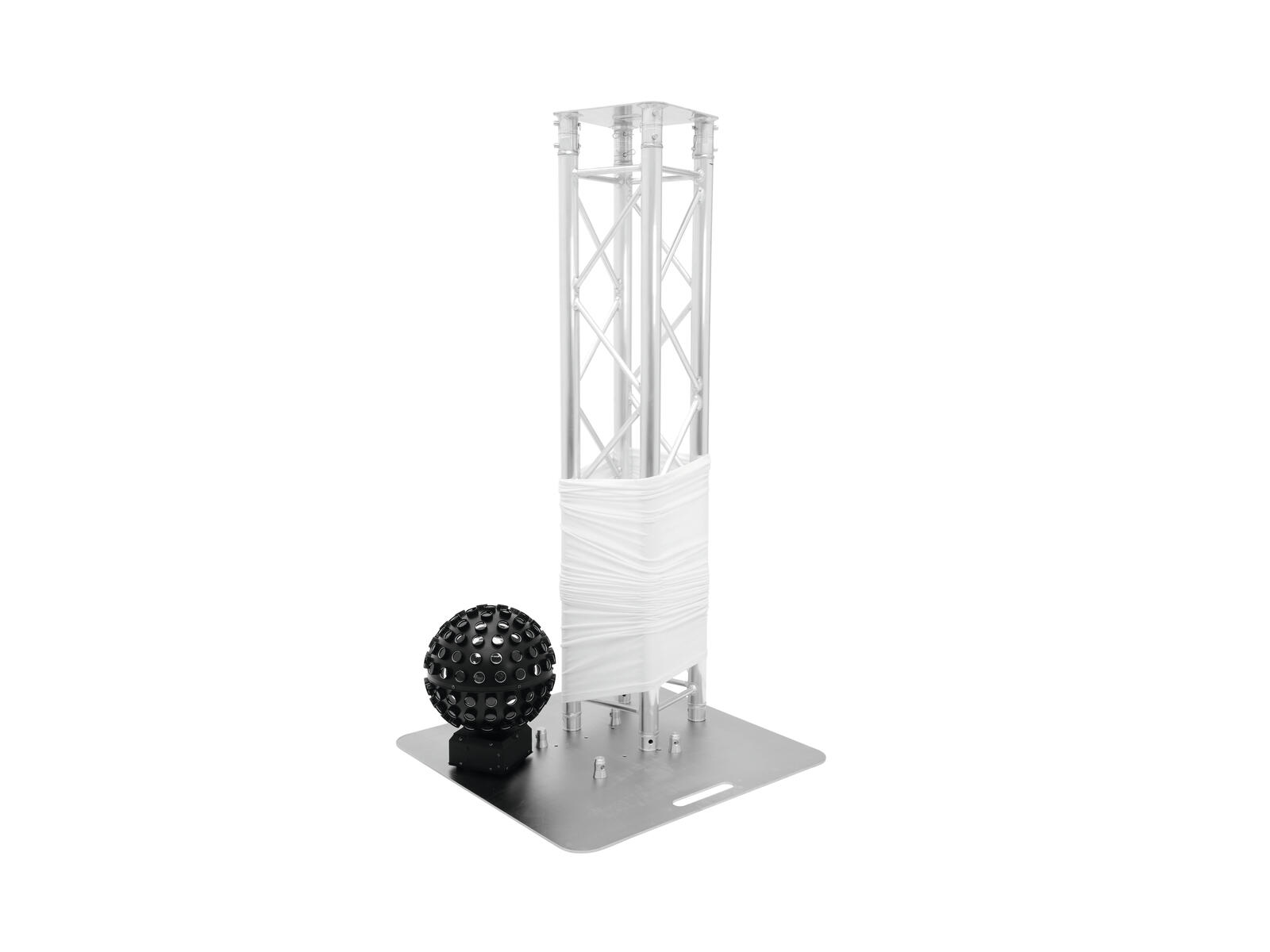

EUROLITE Set LED B-40 + 2m Truss + Trusscover

Name: EUROLITE Set LED B-40 + 2m Truss + Trusscover
Brand: EUROLITE

EUROLITE Set LED B-40 + 2m Truss + Trusscover

The article is no longer in our assortment.

Item no. 09000231

Print product

Product badge

60306510 ALUTRUSS QUADLOCK 6082-2000 4-Way Cross Beam

QUADLOCK 6082 4-point truss system
QUADLOCK 6082 is a 4-point truss system made of aluminum. The individual elements are connected via four cones, pivots and pins. QUADLOCK 6082 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for even higher loads.

The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The four main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 16 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps.

With 290 mm outer dimensions, QUADLOCK QQTR is a stable truss system for higher loads and extended durability. This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres.

Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners and accessory, this system is highly versatile and offers unlimited design possibilities.

The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!

Features

Set consisting of:
1x 60320320: ALUTRUSS Base Plate BP-30 80x80
1x 60306510: ALUTRUSS QUADLOCK 6082-2000 4-Way Cross Beam
1x 60302995: ALUTRUSS QUADLOCK End Plate QQGP
1x 8331209B: EXPAND XPTC20W Truss Cover 200cm white
1x 51918950: EUROLITE LED B-40 Beam effect

60320320 ALUTRUSS Base Plate BP-30 80x80

Baseplate for mobile use (connectors 6082 included)

For the vertical installation of truss elements
Easy and quick handling
Multifunctional use
High durability
Suitable for the following truss systems: BILOCK, TRILOCK, QUADLOCK 6082, QUADLOCK TQ390, QUADLOCK QQTR
Material: steel
For fair installers and event technology with a multitude of purposes
1 x Connection set included
Trusspipe diameter: 50 mm
Made in Europe

60306510 ALUTRUSS QUADLOCK 6082-2000 4-Way Cross Beam

4-point truss system

Strong EN-AW 6082 alloy for high loads
High-quality aluminum-tubes with 50 mm in diameter
Easy installation
Low weight
Distance center - center: 240 mm
For exhibition and shop installers, discotheque and theatre installations
1 x Connection set included
Trusspipe diameter: 50 mm
TÜV Süd

60302995 ALUTRUSS QUADLOCK End Plate QQGP

Robust truss system

High stability
High-quality aluminum-tubes with 50 mm in diameter
Low weight
Easy installation as the cross-beams do no longer need to be srewed on
For exhibition and shop installers, discotheque and theatre installations
Trusspipe diameter: 50 mm
Made in Europe

8331209B EXPAND XPTC20W Truss Cover 200cm white

Flexible truss cover

Permanent flame retardant equipment according to DIN 4102-1 (B1) qualifies this cover for event and fair installation
Best suited for reproducing light projections
Extremely stretchable cloth
Washing machine cleaning possible
Suitable for all 3- or 4-point systems with 30 cm side length
Made in Germany

51918950 EUROLITE LED B-40 Beam effect

Mirror ball effect with TCLs

Ball with 124 lenses
Equipped with 5 x 4 W TCL LEDs (tri-color)
Particularly bright illuminating power of the LED
Up to 14 rotations per minute
Sound controlled via built-in microphone
Microphone-sensitivity adjustable via rotary-control
Strobe effect
Auto mode
Internal program
Programmable color-change speed and strobe effect
DMX-controlled operation or stand-alone operation with Master/Slave function
Innumerable uses
When smoke is used, this effect becomes especially attractive
Ideal for bands, stages or solo entertainers
Hanging or standing installation possible
Mounting bracket for installation on a truss system included
Ready for connection with power cord and safety-plug
Addressing and setting via control panel with 4-digit LED display and three operating buttons
DMX512 control via regular DMX controller
Control: Stand-alone

Technical specifications

Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
60320320 ALUTRUSS Base Plate BP-30 80x80
Color:	Alu colored
Width:	800 mm
Depth:	800 mm
Height:	8 mm
Weight:	28,60 kg


60306510 ALUTRUSS QUADLOCK 6082-2000 4-Way Cross Beam
Trusspipe:	50 mm x 2 mm
Color:	Alu colored
Strut diameter x thickness:	16 x 2mm
Length:	2000 mm
Width:	290 mm
Height:	290 mm
Weight:	10,80 kg
Main chords:	50 x 2 mm
Braces:	16 x 2 mm
Alloy:	EN-AW 6082 T6 (AlMgSi1 T6)
Welding material:	AlMg 5
Welding technique:	TIG-welding
Outer dimensions:
Width:	290 mm
Height:	290 mm
Length:	2000 mm

60302995 ALUTRUSS QUADLOCK End Plate QQGP
Color:	Alu colored
Weight:	2,05 kg


8331209B EXPAND XPTC20W Truss Cover 200cm white
Color:	White
Length:	2000 mm
Weight:	0,39 kg


51918950 EUROLITE LED B-40 Beam effect
Power supply:	230 V AC, 50 Hz
Power consumption:	30,00 W
IP classification:	IP20
Control:	Stand-alone
Case color:	Black
Width:	32 cm
Height:	38 cm
Depth:	32 cm
Weight:	3,30 kg
Rotation-speed:	approx. 14 RPM
LED type:	4 W TCL
LED number:	5
Sound-control:	via built-in microphone
DMX channels:	4
DMX connection:	3-pin XLR
Dimensions (L x W x H):	320 x 320 x 380 mm
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
