EUROLITE Set LED PAR-56 5mm sw + Operator IR2DMX

21°

EUROLITE Set LED PAR-56 5mm sw + Operator IR2DMX

The article is no longer in our assortment.

Item no. 09000191

Print product

Product badge

Features

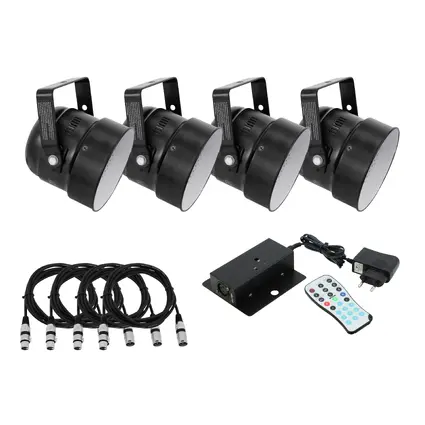

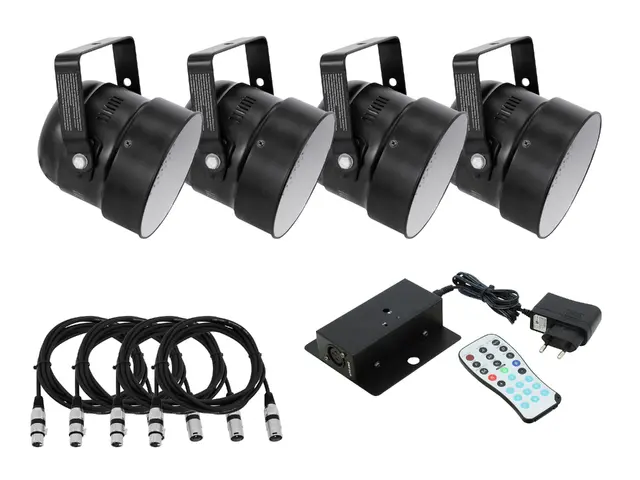

Set consisting of:
4x 51913619: EUROLITE LED PAR-56 RGB 5mm Short 5CH bk
1x 70064511: EUROLITE DMX LED Operator IR2DMX
1x 51914130: EUROLITE IR-Remote for LED-Devices
3x 3022047N: OMNITRONIC XLR cable 3pin 3m bk
1x 3022055N: OMNITRONIC XLR cable 3pin 10m bk

51913619 EUROLITE LED PAR-56 RGB 5mm Short 5CH bk

PAR-56 Spot with 151 LEDs in the colors red, green and blue

Equipped with 151 x 5 mm LED: 51 x red, 49 x green, 51 x blue
Operable in stand-alone mode or via DMX
DMX-512 control possible via any commercial DMX-controller (occupies 5 channels)
3 or 5 DMX channels selectable for numerous applications
Sound-control via built-in microphone
Adjustable microphone sensitivity via LED display
Comfortable addressing and setting via control panel with LED display and three operating buttons
Functions: static colors; RGB color blend, internal programs, dimmer and strobe settings via DMX; master/slave
Housing available in silver or in black
Locking possibility at the mounting bracket
Ready for connection with power cord and safety plug
Control: Stand-alone; DMX; Sound to light via Microphone
Effect: Strobe effect

70064511 EUROLITE DMX LED Operator IR2DMX

IR control module to control 4 RGB spots and KLS sets

DMX controller for LED devices with infrared receiver
Suitable for matching EUROLITE IR remote (optional accessory, required for use)
Inexpensive solution for controlling LED effects with 5-channel standard DMX protocol or KLS spotlight sets
4 LED parcans, one KLS light set and one LED BAR can be controlled at the same time
Functions: static colors, automatic color change, internal programs, strobe effect, Master/Slave
47 control channels
3-pin XLR DMX output
Control in stand-alone mode and DMX programming
Sound-control via built-in microphone
Adjustable microphone sensitivity via remote control
Control: IR remote control (optional); Sound to light via Microphone; DMX
Housing design: Interface

51914130 EUROLITE IR-Remote for LED-Devices

Addressing and programming via infrared

Operable up to 10 m
Functions: programming of RGB dimming, Master/Slave function, DMX mode, DMX addressing as well as internal programs, auto mode, strobe effect with adjustable speed
Control: IR remote control

Technical specifications

Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
51913619 EUROLITE LED PAR-56 RGB 5mm Short 5CH bk
Power supply:	230 V AC, 50 Hz
Power consumption:	23 W
IP classification:	IP20
DMX channels:	3
Control:	Stand-alone
	DMX
	Sound to light via Microphone
Beam angle (1/2 peak):	21°
Housing color:	Black
Width:	20,5 cm
Height:	24 cm
Depth:	16,5 cm
Weight:	1,46 kg
DMX-control-channels:	5
DMX-512-connection:	3-pin XLR
Sound-control:	via built-in microphone
LED type:	5 mm
LED number:	151 (51 x red, 49 x green, 51 x blue)
Beam angle:	21°
Dimensions (L x W x H):	165 x 205 x 240 mm
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
70064511 EUROLITE DMX LED Operator IR2DMX
Power supply:	100-240 V AC, 50/60 Hz 9 V DC 500 mA
Power consumption:	6,00 W
IP classification:	IP20
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
DMX channels:	Output 47
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	IR remote control (optional)
	Sound to light via Microphone
	DMX
Color:	Black
Housing color:	Black
Housing design:	Interface
Width:	11 cm
Height:	3,5 cm
Depth:	10 cm
Weight:	0,33 kg
51914130 EUROLITE IR-Remote for LED-Devices
Control:	IR remote control
Width:	4,6 cm
Height:	0,7 cm
Depth:	11 cm
Weight:	0,02 kg
Device
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
3022047N OMNITRONIC XLR cable 3pin 3m bk
Cable construction:	2 x 0,22 mm² Microphone cable
Cable length:	3 m
Plug A:	1 x 3-pin XLR (M)
Plug B:	1 x 3-pin XLR (F)
Color:	Black
Material:	Metal
Brand of the connectors:	OMNITRONIC
Diameter:	6 mm
Weight:	0,16 kg
3022055N OMNITRONIC XLR cable 3pin 10m bk
Cable construction:	Audio cable
Cable length:	10 m
Plug A:	1 x 3-pin XLR (M)
Plug B:	1 x 3-pin XLR (F)
Color:	Black
Brand of the connectors:	OMNITRONIC
Weight:	0,43 kg
