OMNITRONIC Little Helper Set I / Test Set

Name: OMNITRONIC Little Helper Set I / Test Set
Brand: OMNITRONIC

OMNITRONIC Little Helper Set I / Test Set

The article is no longer in our assortment.

Item no. 09000130

Print product

Product badge

7 mm

10355090 OMNITRONIC LH-090 Polarity Tester System

Finally there is a affordable polarity tester system. Compared to other systems, the LH-090 is three times cheaper. It does not matter if you need to test the polarity of speakers, amps or phones, the control is always very fast and simple. The result of the measurements is shown clearly by two LEDs. Every well prepared stage engineer should have this system in his tool box.

10355095 OMNITRONIC LH-095 Speaker Checker

You will be in control!
The scene: a bestower of hi-fi equipment gets back some speakers from a customer who affirms, that nothing happened and the speakers are allright. Trust is good, but control is still better. But how do you check if speakers are really ok? Now, the LH-095 is entering the scene. Without great effort, it is testing the frequencies and - if we stick to our example - gives clear statements and thus much more certainty to the bestower. Also not bad: a handy clip, that securely and comfortably attaches the speaker checker to a belt.

Features

Set consisting of:
1x 10355088: OMNITRONIC LH-088 Cable Tester
1x 10355090: OMNITRONIC LH-090 Polarity Tester System
1x 10355095: OMNITRONIC LH-095 Speaker Checker
1x 10360600: OMNITRONIC SLM-500 SPL Meter
1x 30126209: ROADINGER Universal Case FOAM GR-1 black, big

10355088 OMNITRONIC LH-088 Cable Tester

Universal cable tester for the use in show technology

Ideal cable test for all cable connections in the studio and for live applications
Tests 3+5-pin XLR-, 3.5/6.3 mm jack (also stereo), Mini-DIN, DIN, RCA and 4+8-pin Speaker cables and connections
Polarity and short-circuit display
Comfortable selection via rotary switch
Continuity tester via two banana sockets for connecting the measuring pins. LED and beeper indicate continuity
A must for musicians and technicians
Operation with 9 V battery
Battery: 1 x battery 9.0 V E block 6LR61 alkaline manganese (provided)

10355090 OMNITRONIC LH-090 Polarity Tester System

Accurate determination of polarity

Set includes transmitter and receiver unit
Easy and quick testing of speakers, amplifiers, microphones, etc.
Receiver displays test result via two LEDs
In and out via unbalanced jack sockets
Acoustical and electrical output
Adjustable input and output level
Operation via 9 V battery each
Battery: 1 x battery 9.0 V E block 6LR61 alkaline manganese (provided)

10355095 OMNITRONIC LH-095 Speaker Checker

Speaker testing device with adjustable sinus frequency

Quick and easy check of loudspeakers and sound systems - without assembling effort
All you need is the LH-095 and a cable
The optimum tool for sound engineers and rental companies
Adjustable sinus frequency 20 Hz - 20 KHz
Volume control
Signal output via Speaker, XLR plug or speaker connectors (banana plugs can be used)
Operation via 9 V battery
With spring bow and belt clip
Battery: 1 x 9.0 V E block (provided)

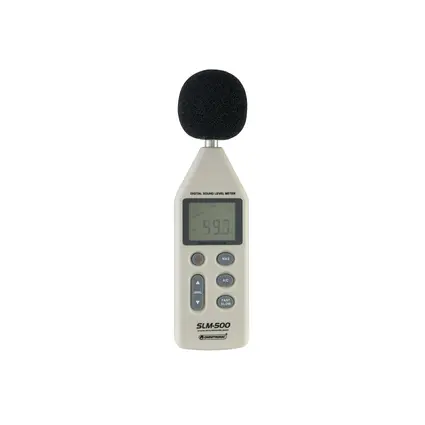

10360600 OMNITRONIC SLM-500 SPL Meter

Digital sound level meter A and C weighting

Dedicated LCD
Electret condenser microphone cartridge
Measuring range from 30-130 dB
Max Hold function
A and C weighting
Slow and fast measuring mode
Additional outputs for AC and DC current via 3.5 mm jack (1/8")
Operation via 4 x 1.5 V battery or 6 V power supply unit (both not included)
Incl. windscreen and battery
Battery: 4 x Mignon (AA) (not included)

30126209 ROADINGER Universal Case FOAM GR-1 black, big

Flightcase with flexible padded interior and 480 x 380 x 140 mm (inside dimensions)

Interior upholstered with foam (black)
Upholstered cover (non-removeable)
Padded interior can be customized to fit all kinds of devices
High-quality workmanship with plywood multilayered glued, black laminated
Aluminum profile frames (22 mm) with rounded edges
Three-leg, medium-sized steel ball corners
2 high-quality spring locks with eyelets for locking-up
Rugged handle

Technical specifications

10355088 OMNITRONIC LH-088 Cable Tester
Battery:	1 x battery 9.0 V E block 6LR61 alkaline manganese (provided)
Width:	14,5 cm
Height:	6 cm
Depth:	11 cm
Weight:	0,89 kg


10355090 OMNITRONIC LH-090 Polarity Tester System
Battery:	1 x battery 9.0 V E block 6LR61 alkaline manganese (provided)
Width:	12,5 cm
Height:	3,2 cm
Depth:	5,5 cm
Weight:	0,22 kg
Power consumption:	5 mA
Audio connector:	6.3 mm unbalanced jack

10355095 OMNITRONIC LH-095 Speaker Checker
Battery:	1 x 9.0 V E block (provided)
Power connection:	Battery/battery pack
Width:	11,5 cm
Height:	4,5 cm
Depth:	9,5 cm
Weight:	0,43 kg
Power consumption:	5 mA
Frequency range:	20-20000 Hz, variable
Connection:	XLR 3-pin, Speaker 4-pin
Maximum output level:	2 V (XLR)
Maximum output level:	1 W @ 8 ohms (Speaker)
Frequency range:	20-20000 Hz, ±1 dB (XLR)
Frequency range:	100-20000 Hz, ±1 dB (Speaker)

10360600 OMNITRONIC SLM-500 SPL Meter
Battery:	4 x Mignon (AA) (not included)
Frequency range:	31,5 - 8500 Hz
Power connection:	Battery/battery pack
Width:	14,5 cm
Height:	11 cm
Depth:	6 cm
Weight:	0,68 kg
Power supply:	6 V AC/DC
via power unit:	max. 9 V DC, 100 mA
via battery:	4 x 1.5 V (type AA)
Battery life:	approx. 20 hrs.
Measuring ranges:	30-80 dB, 40-90 dB, 50-100 dB, 60-110 dB, 70-120 dB, 80-130 dB, 30-130 dB
Accuracy:	±1.5 dB @ 94 dB, 1kHz
Level weighting:	A or C
Microphone:	electret condenser microphone
AC output:	0.707 V RMS
Output impedance:	600 ohms
DC output:	10 mV
Output impedance:	100 ohms

30126209 ROADINGER Universal Case FOAM GR-1 black, big
Maximum load:	20 kg
Color:	Black laminated
Material:	Glued plywood 7 mm
Strength:	7 mm
Inside dimension Width:	48 cm
Inside dimension Height:	14 cm
Inside Dimension Depth:	38 cm
Width:	52 cm
Height:	17 cm
Depth:	42 cm
Weight:	4,90 kg
Outside dimensions (W x D x H):	515 x 415 x 170 mm
Inside dimensions (W x D x H):	480 x 380 x 140 mm
