The article was removed from our product range and can no longer be ordered. All texts, documents, photos and videos are still available. Any spare-parts on stock can be ordered. |

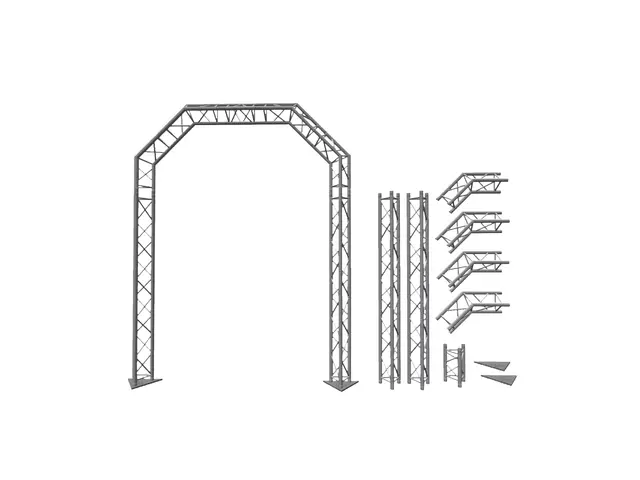

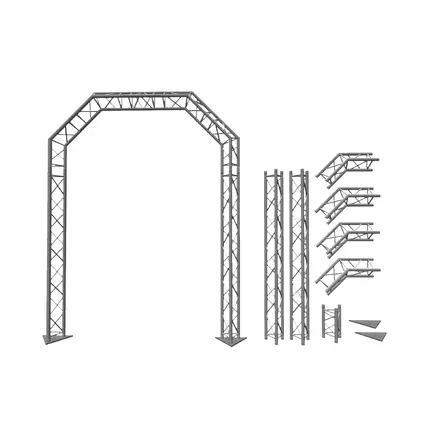

TRILOCK 6082 DJ Gate
Item no. 09000107
Set consisting of:
1x 60302355: ALUTRUSS TRILOCK 6082-500 3-Way Cross Beam
2x 60302362: ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam
2x 6030189A: ALUTRUSS TRILOCK Base Plate QTG-male
4x 60302390: ALUTRUSS TRILOCK 6082AC-23 2-Way Corner 135°
1x 60302355: ALUTRUSS TRILOCK 6082-500 3-Way Cross Beam
2x 60302362: ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam
2x 6030189A: ALUTRUSS TRILOCK Base Plate QTG-male
4x 60302390: ALUTRUSS TRILOCK 6082AC-23 2-Way Corner 135°
60302355 ALUTRUSS TRILOCK 6082-500 3-Way Cross Beam
- 3-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: horizontal 240 mm, vertical 207 mm
- For exhibition and shop installers, discotheque and theatre installations
- 1 x Connection set included
- Made in Europe
- Trusspipe diameter: 50 mm
60302362 ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam
- 3-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: horizontal 240 mm, vertical 207 mm
- For exhibition and shop installers, discotheque and theatre installations
- 1 x Connection set included
- Made in Europe
- Trusspipe diameter: 50 mm
6030189A ALUTRUSS TRILOCK Base Plate QTG-male
- Made in Europe
- Trusspipe diameter: 50 mm
60302390 ALUTRUSS TRILOCK 6082AC-23 2-Way Corner 135°
- 3-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: horizontal 240 mm, vertical 207 mm
- For exhibition and shop installers, discotheque and theatre installations
- 1 x Connection set included
- Made in Europe
- Trusspipe diameter: 50 mm
60302355 ALUTRUSS TRILOCK 6082-500 3-Way Cross Beam | |
| Main chords: | 50 x 2 mm |
| Braces: | 16 x 2 mm |
| Alloy: | EN-AW 6082 T6 (AlMgSi1 T6) |
| Welding material: | AlMg 5 |
| Welding technique: | TIG-welding |
| Outer dimensions: | |
| Width: | 290 mm |
| Height: | 257 mm |
| Length: | 500 mm |
| Weight: | 3.2 kg |
60302355 ALUTRUSS TRILOCK 6082-500 3-Way Cross Beam | |
| Weight: | 3.2 kg |
| Trusspipe: | 50 x 2 mm |
| Strut: | 16 x 2mm |
60302362 ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam | |
| Main chords: | 50 x 2 mm |
| Braces: | 16 x 2 mm |
| Alloy: | EN-AW 6082 T6 (AlMgSi1 T6) |
| Welding material: | AlMg 5 |
| Welding technique: | TIG-welding |
| Outer dimensions: | |
| Width: | 290 mm |
| Height: | 257 mm |
| Length: | 2500 mm |
| Weight: | 10 kg |
60302362 ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam | |
| Weight: | 9.2 kg |
| Trusspipe: | 50 x 2 mm |
| Strut: | 16 x 2mm |
6030189A ALUTRUSS TRILOCK Base Plate QTG-male | |
| Weight: | 1.8 kg |
60302390 ALUTRUSS TRILOCK 6082AC-23 2-Way Corner 135° | |
| Weight: | 4.4 kg |
| Trusspipe: | 50 x 2 mm |
| Strut: | 16 x 2mm |
