EUROLITE set 4x LED PAR-64 RGBA w/ controller blac

36°

EUROLITE set 4x LED PAR-64 RGBA w/ controller blac

The article is no longer in our assortment.

Item no. 09000084

Print product

Product badge

51916450 EUROLITE LED PAR-64 RGBA 10mm Short black

Eurolite offers a new series to its favorite LED PAR-64 Spots including amber colored LEDs in addition to the primary colors red, green and blue. By adding the color amber, the RGB color mixing can be "warmed up" individually with the fourth color. You will have wider range of opportunities for lighting design: warm colors create a cozy atmosphere in bars, lounges or at exhibition stands - child's play for the RGBA-Spots!

70064502 EUROLITE DMX LED Operator 2 controller

The EUROLITE DMX LED Operator 2 is a DMX controller especially designed for the EUROLITE LED-spots and LED-effects with 6 DMX-channels.
This controller features pre-programmed presets and colors, which can easily be displayed by pressing one button. Save your precious time for programming the individual DMX-channels in order to display this color or that color.
Furthermore, you can control one smoke-machine with 2 DMX-channels by pressing a button.

Features

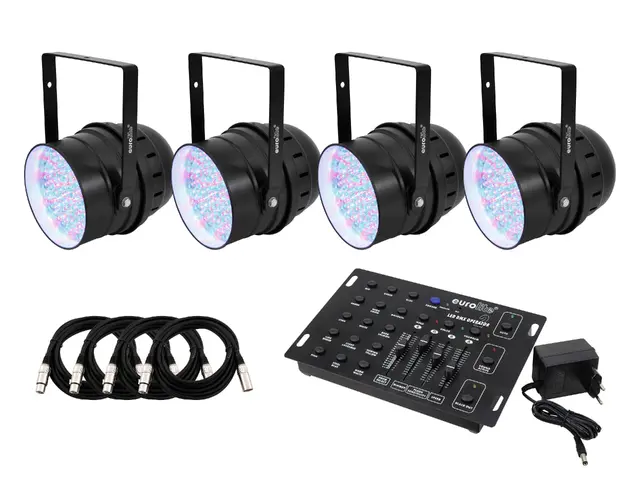

Set consisting of:
4x 51916450: EUROLITE LED PAR-64 RGBA 10mm Short black
1x 70064502: EUROLITE DMX LED Operator 2 controller
4x 3022050N: OMNITRONIC XLR cable 3pin 5m bk

51916450 EUROLITE LED PAR-64 RGBA 10mm Short black

PAR spot with 177 LEDs in the colors red, green, blue and amber

4 or 6 DMX channels selectable for numerous applications
Equipped with 177 x 10 mm LEDs: 30 x red, 48 x green, 54 x blue and 45 x amber
Sound-control via built-in microphone
Beam angle approximately 36°
Locking possibility at the mounting bracket
Addressing and setting via control panel with LED display
Preset (internal programs)
RGBA color change
DMX-controlled operation or stand-alone operation with Master/Slave function
Dimmer and Strobe settings via DMX
Ready for connection with power cord and plug
Also available as floor spot version
Available in silver or black
For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
Advantages of LED technology: long life of the LEDs, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation
Control: Stand-alone; Sound to light via Microphone; DMX
Effect: Strobe effect

70064502 EUROLITE DMX LED Operator 2 controller

Compact DMX controller for easy application

8 control channels only suitable for special LED-spots (RGBA and RGBW)
Select color mode for choosing single colors
Internal programs
Auto mode for running all programs
Sound-control via built-in microphone
Pause function
Blackout function
Control LEDs display current operating mode
Program Select-fader for selecting the internal programs
Speed-fader for adjusting the program-speed
Strobe-effect with adjustable speed
Additional fogger button for direct control of a DMX smoke machine (CH-7/8)
Designed for standing operation, optional installation is customer's choice
Suitable for 254 mm racks (10") with 4 units
Power supply via enclosed 12 V DC power unit
Control: Sound to light via Microphone; DMX
Housing design: Desktop console

Technical specifications

Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
51916450 EUROLITE LED PAR-64 RGBA 10mm Short black
Power supply:	230 V AC, 50 Hz
Power consumption:	27 W
IP classification:	IP20
Power connection:	Fixed Power supply cord with safety plug
LED:	177 x 10 mm RGBA (homogenous color mix)
DMX channels:	4; 6
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Stand-alone
	Sound to light via Microphone
	DMX
Beam angle (1/2 peak):	36°
Housing color:	Black
Width:	27 cm
Height:	39 cm
Depth:	26 cm
Weight:	2,30 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
70064502 EUROLITE DMX LED Operator 2 controller
Power consumption:	4,00 W
IP classification:	IP20
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
DMX channels:	Output 8
Control:	Sound to light via Microphone
	DMX
Color:	Black
Housing color:	Black
Housing design:	Desktop console
Width:	26,5 cm
Height:	5,5 cm
Depth:	16,5 cm
Weight:	1,12 kg
Power supply:	230 V AC, 50 Hz,
	via 12 V DC, 300 mA power unit included in the delivery
DMX512 output:	3-pin XLR connector
3022050N OMNITRONIC XLR cable 3pin 5m bk
Cable construction:	2 x 0,22 mm² Microphone cable
Cable length:	5 m
Plug A:	1 x 3-pin XLR (M)
Plug B:	1 x 3-pin XLR (F)
Color:	Black
Material:	Metal
Brand of the connectors:	OMNITRONIC
Diameter:	6 mm
Weight:	0,24 kg
