The article was removed from our product range and can no longer be ordered. All texts, documents, photos and videos are still available. Any spare-parts on stock can be ordered. |

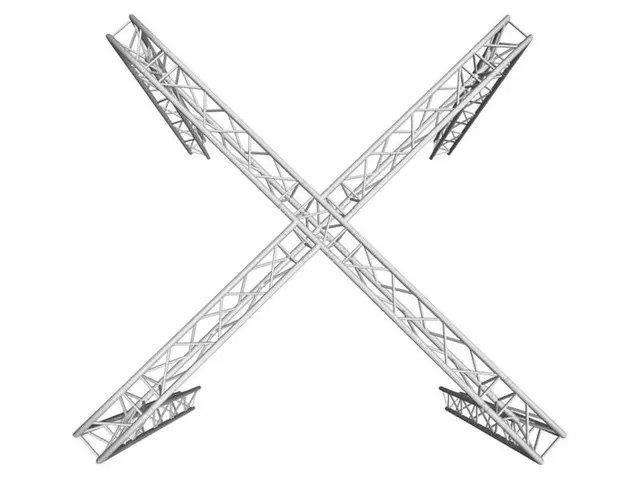

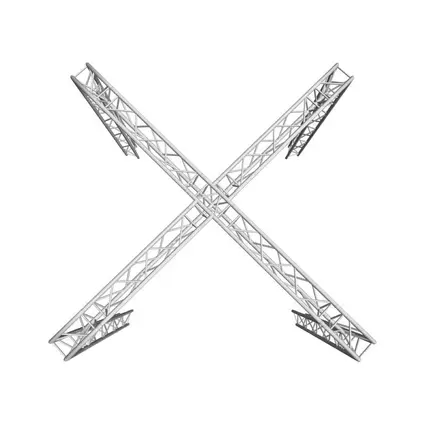

Set Trilock6082 X-Messestand 671x671x3000
Item no. 09000068
Set consisting of:
8x 60302362: ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam
1x 60302412: ALUTRUSS TRILOCK 6082AC-41 4-Way Cross
4x 60302394: ALUTRUSS TRILOCK 6082AC-25 2-Way Corner 90° \/
4x 6030189A: ALUTRUSS TRILOCK Base Plate QTG-male
8x 60302362: ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam
1x 60302412: ALUTRUSS TRILOCK 6082AC-41 4-Way Cross
4x 60302394: ALUTRUSS TRILOCK 6082AC-25 2-Way Corner 90° \/
4x 6030189A: ALUTRUSS TRILOCK Base Plate QTG-male
60302362 ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam
- 3-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: horizontal 240 mm, vertical 207 mm
- For exhibition and shop installers, discotheque and theatre installations
- 1 x Connection set included
- Made in Europe
- Trusspipe diameter: 50 mm
60302412 ALUTRUSS TRILOCK 6082AC-41 4-Way Cross
- 3-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: horizontal 240 mm, vertical 207 mm
- For exhibition and shop installers, discotheque and theatre installations
- 3 x Connection set included
- Made in Europe
- Trusspipe diameter: 50 mm
60302394 ALUTRUSS TRILOCK 6082AC-25 2-Way Corner 90° \/
- 3-point truss system
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center - center: horizontal 240 mm, vertical 207 mm
- For exhibition and shop installers, discotheque and theatre installations
- 1 x Connection set included
- Made in Europe
- Trusspipe diameter: 50 mm
6030189A ALUTRUSS TRILOCK Base Plate QTG-male
- Made in Europe
- Trusspipe diameter: 50 mm
60302362 ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam | |
| Main chords: | 50 x 2 mm |
| Braces: | 16 x 2 mm |
| Alloy: | EN-AW 6082 T6 (AlMgSi1 T6) |
| Welding material: | AlMg 5 |
| Welding technique: | TIG-welding |
| Outer dimensions: | |
| Width: | 290 mm |
| Height: | 257 mm |
| Length: | 2500 mm |
| Weight: | 10 kg |
60302362 ALUTRUSS TRILOCK 6082-2500 3-Way Cross Beam | |
| Weight: | 9.2 kg |
| Trusspipe: | 50 x 2 mm |
| Strut: | 16 x 2mm |
60302412 ALUTRUSS TRILOCK 6082AC-41 4-Way Cross | |
| Weight: | 8 kg |
| Trusspipe: | 50 x 2 mm |
| Strut: | 16 x 2mm |
60302394 ALUTRUSS TRILOCK 6082AC-25 2-Way Corner 90° \/ | |
| Weight: | 4.5 kg |
| Trusspipe: | 50 x 2 mm |
| Strut: | 16 x 2mm |
6030189A ALUTRUSS TRILOCK Base Plate QTG-male | |
| Weight: | 1.8 kg |
