ALUTRUSS Set QUADLOCK QL-ET34-2000 + Truss transport board

ALUTRUSS



ALUTRUSS Set QUADLOCK QL-ET34-2000 + Truss transport board

Item no. 09000051

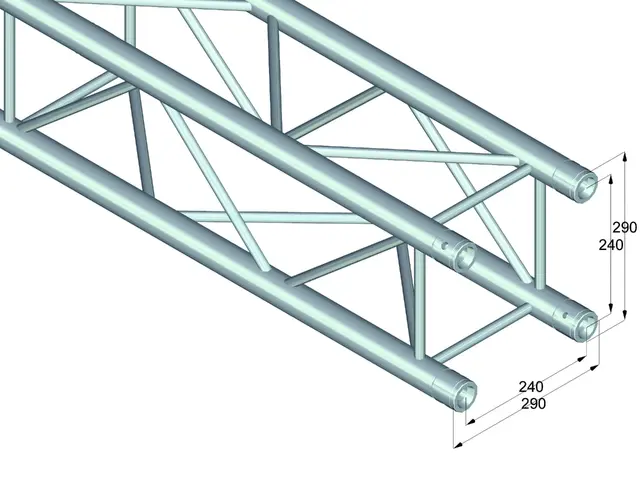

60306758 ALUTRUSS QUADLOCK QL-ET34-2000 4-way cross beam

QUADLOCK QL-ET34 4-point truss system
QUADLOCK QL-ET34 is a 4-point truss system made of aluminum. The individual elements are connected via four cones, pivots and pins. QUADLOCK QL-ET34 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for even higher loads.

The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The four main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system.

With 290 mm outer dimensions, QUADLOCK QL-ET34 is a stable truss system for higher loads and extended durability. This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres.

Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners and accessory, this system is highly versatile and offers unlimited design possibilities.

The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product! ALUTRUSS elements are made in Europe and welded by specially trained welders certified by the German SLV association.

Please note: this truss system must never be combined with other systems!
Features

60306758 ALUTRUSS QUADLOCK QL-ET34-2000 4-way cross beam

4-point truss system

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • Distance center - center: 240 mm
  • For exhibition and shop installers, discotheque and theatre installations
  • 1 x Connection set included
  • Made in Europe
  • Trusspipe diameter: 50 mm

60320307 ALUTRUSS Truss Transport Board Combo incl 3 Wheels

Practical transport cart with castors for QUADLOCK and TRILOCK truss elements

  • Practical transport cart made of multiplex wood (23 mm)
  • Suitable for 2 QUADLOCK and TRILOCK truss elements with 290 mm
  • Quick and secure stacking with optional stacking ridges
  • Grip hole and cut-outs for safety bands for safe transport of the truss elements
  • Incl. 3 castors, 1 of which with brake
  • Assembly required
  • The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)

60320300 ALUTRUSS Truss Transport Ridge Combo

Stacking ridge for QUADLOCK and TRILOCK truss elements

  • Stacking ridge for quick and secure stacking of truss elements on matching transport carts
  • Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
  • Multiplex wood (30 mm)
  • Made in Germany

60206787 SHZ Clamping Belt S400 Ratchet 5m/25mm black

Clamping belt

  • Belt 25 mm
  • Complies with EN 12195-2
  • 1-part
  • Length 5 m
  • LC400/800daN surroundings
  • With ratchet
  • Belt colour black
  • Made in Germany
Technical specifications

60306758 ALUTRUSS QUADLOCK QL-ET34-2000 4-way cross beam

Main chords:50 x 2 mm
Braces:20 x 2 mm
Alloy:EN-AW 6082 T6 (AlMgSi1 T6)
Welding material:AlMg 5
Welding technique:TIG-welding
Outer dimensions:
Width:290 mm
Height:290 mm
Length:2000 mm
Trusspipe:50 mm x 2 mm
Strut:20 x 2mm
Color:Alu colored
Weight:11.2 kg

60320307 ALUTRUSS Truss Transport Board Combo incl 3 Wheels

Dimensions (L x W x H):600 x 300 x 47 mm
Weight:3.2 kg
Maximum load:6 Traverses vertical (Height ca. 2,10 m)

60320300 ALUTRUSS Truss Transport Ridge Combo

Dimensions (L x W x H):600 x 30 x 50 mm
Weight:0.42 kg

60206787 SHZ Clamping Belt S400 Ratchet 5m/25mm black

Weight:0,3025 kg
Color:Black
