EUROLITE Set EUROLITE Wind Up DJ Heavy Bundle III

svg
EUROLITE



EUROLITE Set EUROLITE Wind Up DJ Heavy Bundle III

Item no. 09000015

59007040 EUROLITE STT-400/85 Winch Stand TÜV/GS

The EUROLITE STT-series are winch-driven stands manufactured under strict TUV monitoring. These stands boast of high quality, exraordinary ruggedness, highest versatility and high stability. The production is monitored by the German TÜV SÜD which means that they comply with the highest safety standards.

The GS mark signals to the buyer, customer, or consumer that the chosen product as well as the user manual and production (process) have been tested by an authorized institution such as TÜV SÜD, with priority being given to aspects of safety. In the meantime, the German GS-mark has been recognized as one of the crucial marks within product safety.

60302360 ALUTRUSS TRILOCK 6082-2000 3-Way Cross Beam

TRILOCK 6082 3-point truss system
TRILOCK 6082 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK 6082 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for even higher loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 16 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps. With 290 and 257 mm outer dimensions, TRILOCK QTTR is a stable truss system for higher loads and extended durability.

This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres. Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners, circles and accessory, this system is highly versatile and offers unlimited design possibilities. The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!
Features

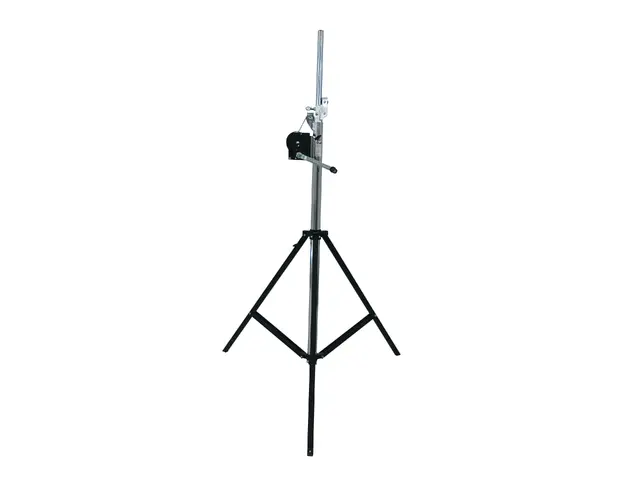

59007040 EUROLITE STT-400/85 Winch Stand TÜV/GS

High-quality winch-stand, max. load 85 kg, max. height 400 cm

  • Made of steel
  • TÜV/GS certified, certificate available
  • CE certified complying with DIN EN ISO 12100-2, DIN 15560-27, certificate available
  • 1-gear winch for easy lifting of the loads
  • Automatic braking system
  • Safety-pins for mechanic locking
  • Ideal for mobile, professional lighting-systems or PA-systems
  • Easy handling
  • Additional dimensions: 175x30x27 cm
  • TÜV Süd

59007079 EUROLITE TAH-35M Truss Adapter, large

Adapter from 120 to 350 mm, 36 mm stand sheath, max. load WLL 300 kg

  • Truss adapter for truss systems up to 55 mm diameter
  • Adjustable clamps
  • Adjustment between 120 mm and 350 mm
  • Maximum load with STC-480: 150 kg
  • LGA tested

60302360 ALUTRUSS TRILOCK 6082-2000 3-Way Cross Beam

3-point truss system

  • Easy installation
  • Low weight
  • For exhibition and shop installers, discotheque and theatre installations
  • 1 x Connection set included
  • Trusspipe: 50 mm
  • TÜV Süd
Technical specifications
59007040 EUROLITE STT-400/85 Winch Stand TÜV/GS
Maximum carrying capacity:85 kg
Minimum load:25 kg
Height:maximum: 4,00 m above 3 sections
minimum: 1,75 m
Attachment:Flange system 35mm
Construction:DIN 15560-27, DIN EN ISO 12100-2
Steel rope:Ø 4 mm
Type (general stands):Light stand/wind up
Base area diameter:1,60 m
Additional dimensions:175x30x27 cm
Weight:23,95 kg
59007079 EUROLITE TAH-35M Truss Adapter, large
Maximum load BGV C1 (8-fold):150 kg
Max. load WLL (4fold):300 kg
Attachment:Flange system 35mm
Type (general stands):Accessory
Width:460 mm
Depth:75 mm
Height:225 mm
Weight:2,4 kg
60302360 ALUTRUSS TRILOCK 6082-2000 3-Way Cross Beam
Color:Alu colored
Trusspipe:50 x 2 mm
Welding material:AlMg 5
Welding technique:TIG-welding
Strut diameter x thickness:16 x 2mm
Length:2000 mm
Width:290 mm
Height:257 mm
Weight:8,20 kg
